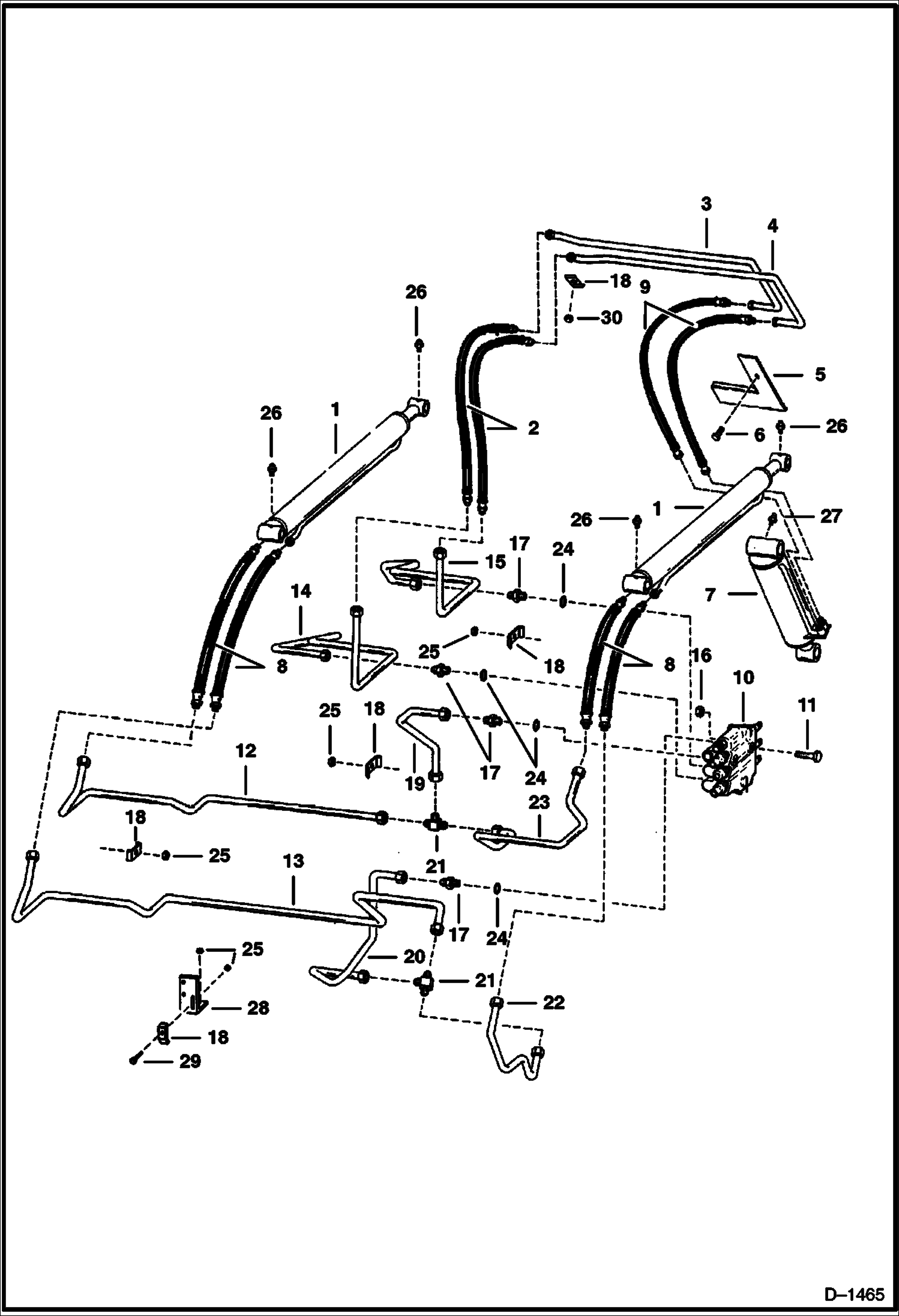

Запчасти Bobcat 600s HYDRAULIC CIRCUITRY (S/N 13001 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6541094

HOSE

3

6557780

TUBE

4

6557781

TUBE

5

6553422

COVER

6

84G3724

BOLT Was 84G003720B - B

7

CYLINDER See Illustration TILT CYLINDER/ B24224 See Illustration TILT CYLINDER/ B18047 See Illustration TILT CYLINDER/ C2742 TILT

8

763439

HOSE

9

6557426

HOSE

10

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18342

11

17C560

BOLT

12

6564469

TUBE

13

6564470

TUBELINE, HYD

14

TUBE NLA - Order 6571691 tube & Ref. 15 (6571690 tube) - Was 6564477 - A

14

6571691

TUBE

15

TUBE NLA - Order 6571690 tube & Ref. 14 (6571691 tube) - Was 6564476 - A

15

6571690

TUBE

16

85D5

NUT 5

17

15K7

FITTING W/Ref. 24

18

6502203

CLAMP

19

6564473

TUBE

20

6704347

TUBE Was 6564472 - A

21

6560136

TEE

22

6564471

TUBE

23

6564468

TUBE

24

79K10

O RING 10

25

85D6

NUT, 5

26

11H15

GREASE FITTING

27

10H25

FITTING, GREASE 5

28

6568667

BRACKET

29

17C624

BOLT 5

30

59D6

NUT
