Запчасти Bobcat 600s HYDRAULIC CIRCUITRY (S/N 12999 & Below) HYDRAULIC SYSTEM

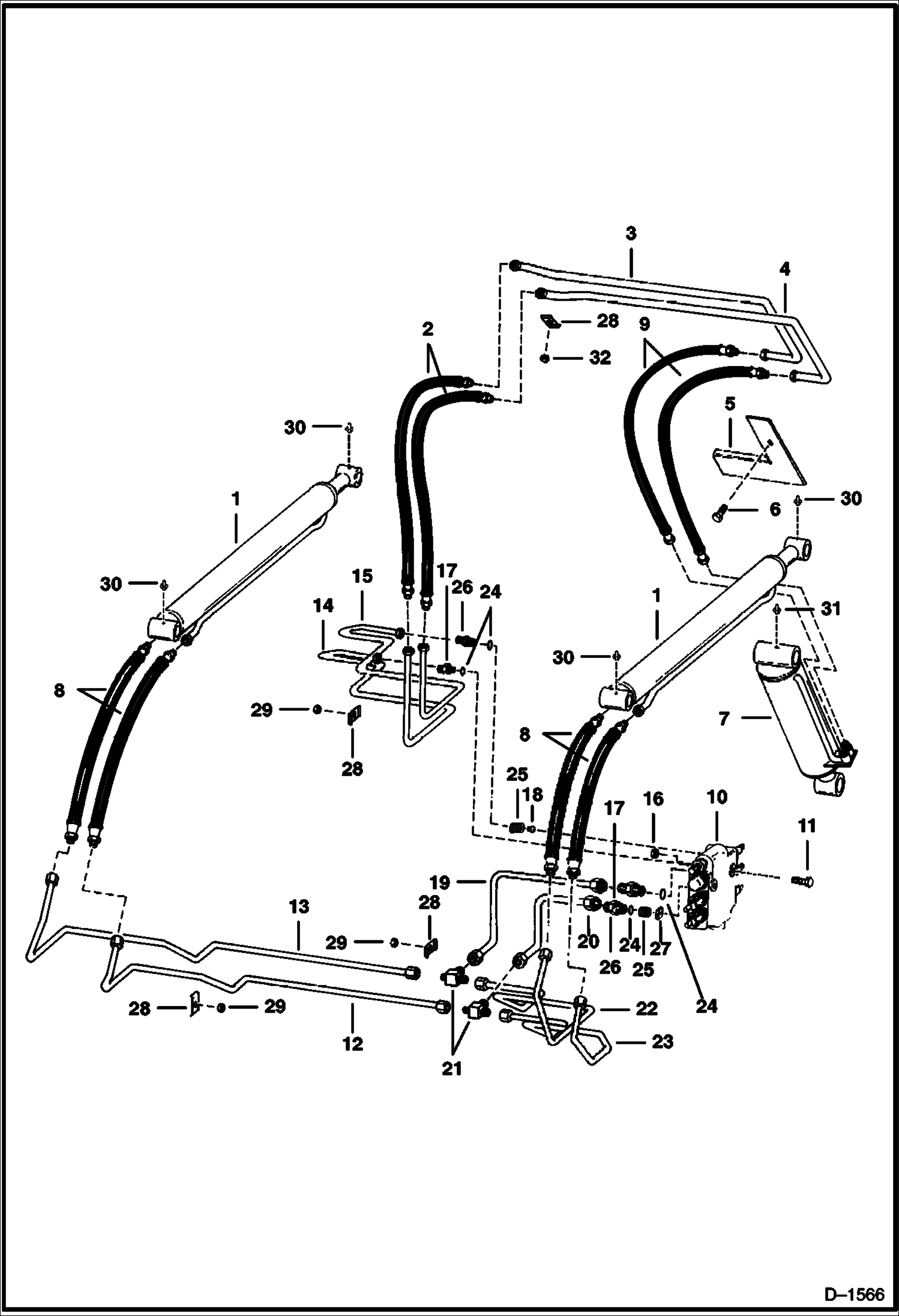

Схема запчастей Bobcat 600s - HYDRAULIC CIRCUITRY (S/N 12999 & Below) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 LIFT

2

6541094

HOSE

3

6557780

TUBE

4

6557781

TUBE

5

6553422

COVER

6

84G3724

BOLT Was 84G003720B - B

7

CYLINDER See Illustration TILT CYLINDER/ B24224 See Illustration TILT CYLINDER/ B18047 See Illustration TILT CYLINDER/ C2742 TILT

8

6563616

HOSE

9

6557426

HOSE

10

VALVE See Illustration HYDRAULIC VALVE/ D1385

11

17C536

BOLT

12

6562977

TUBE

13

6562978

TUBE

14

6557783

TUBE

15

6557782

TUBE

16

85D5

NUT 5

17

731793

CONNECTR W/Ref. 24

18

6560939

ORIFICE

19

6560133

TUBE

20

6560130

TUBE

21

6560136

TEE

22

6562975

TUBE

23

6562976

TUBE

24

79K8

O RING 10

25

6560938

SPRING

26

ADAPTER Was 6560932 - A

27

ORIFICE NLA - .123/.130 (3,12 /3,302 mm) - Was 6560940 - A

28

6502203

CLAMP

29

85D6

NUT, 5

30

11H15

GREASE FITTING

31

10H25

FITTING, GREASE 5

32

59D6

NUT

Выбрано товаров: 32
