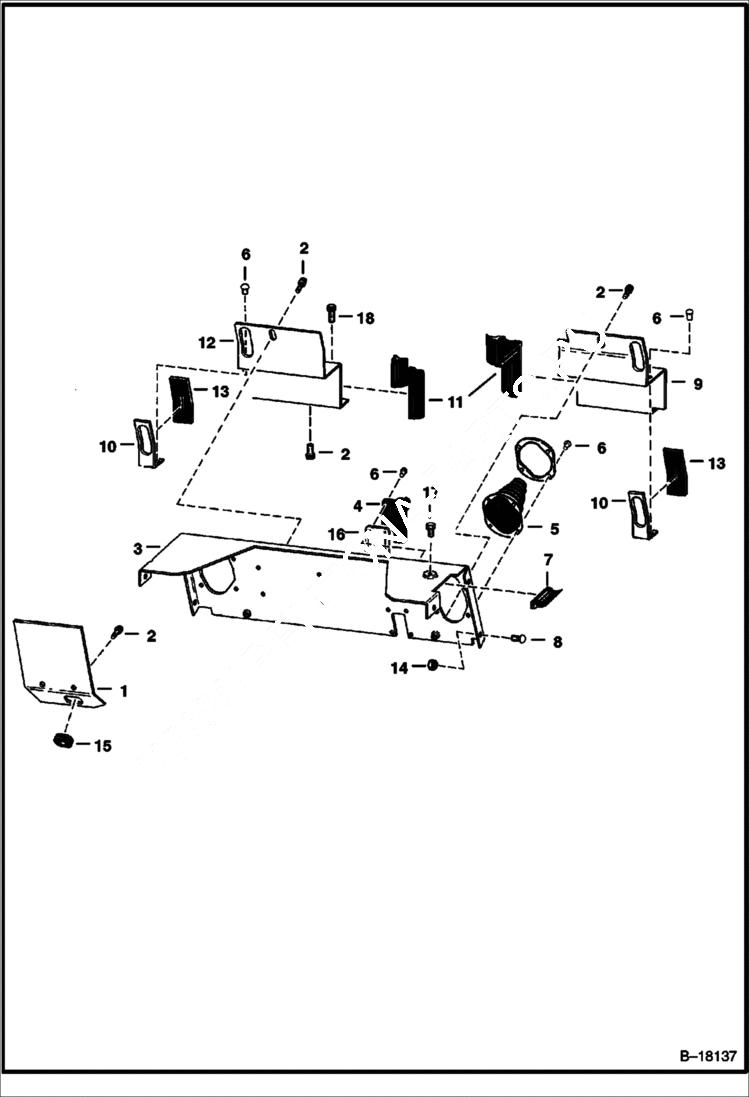

Запчасти Bobcat 600s PANELS (S/N 12489 & Above) MAIN FRAME

1

6562807

SHIELD

2

84G3716

SCREW 5

3

6564674

SHIELD Also Order Ref. 17

4

BOOT NLA - Order 6571648 - Was 6565013 - A

4

BOOT NLA - W/Metal Insert - Was 6571648 - A

5

6532127

BOOT Was 6563540 - A

6

6630207

RIVET 5 Was 6598092 - B

7

4126590

MOULDING bulk - sold per foot

8

37C616

BOLT Was 6514537 - B

9

6564670

SHIELD If both shields and floor plate are slotted use bolt, washer & nut

10

6564982

RETAINER

11

6513152

SEAL bulk - sold per foot

12

6564671

SHIELD If both shields and floor plate are slotted use bolt, washer & nut

13

6564976

SEAL foam block

14

57D6

NUT 5

15

6553653

GROMMET

16

6565014

RETAINER Not Use W/6571648

17

6598805

PLUG

18

84G3712

BOLT 5
