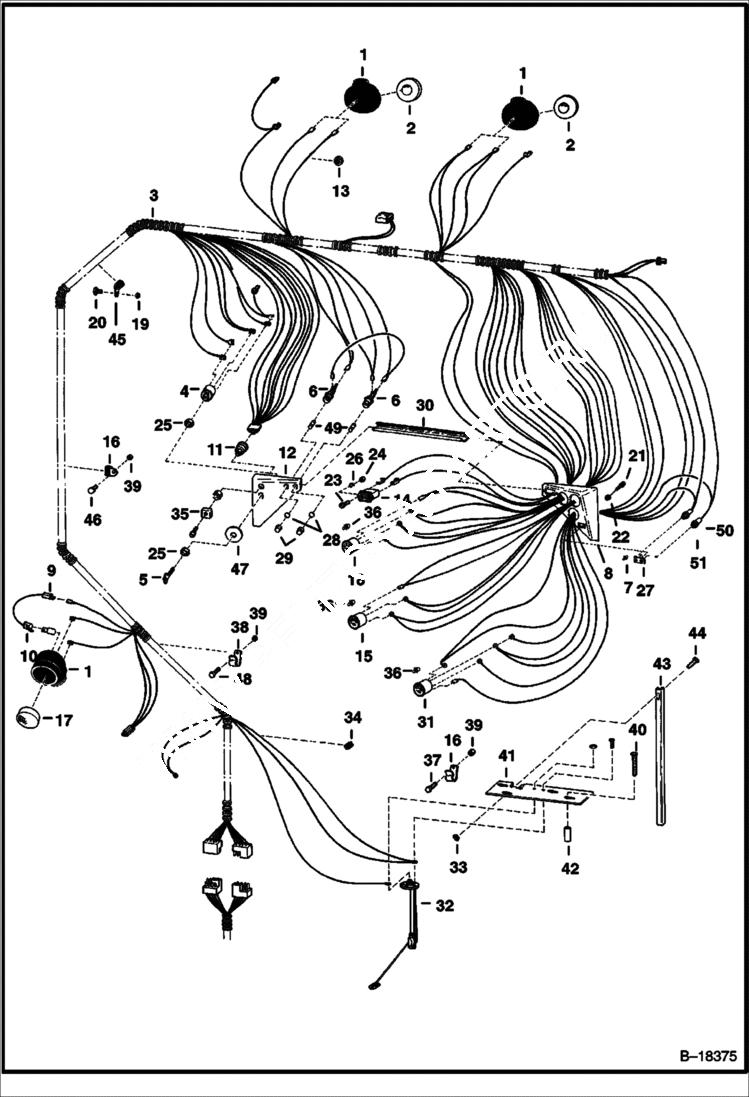

Запчасти Bobcat 600s CAB ELECTRICAL (Standard & Deluxe Cab Options) (S/N 27321 & Above) ACCESSORIES & OPTIONS

1

6558142

HOUSING

2

6557486

LAMP

3

6572060

HARNESS

4

6519592

SWITCH Ref. 5 & 25

5

6512809

KEY

6

6513469

HOLDER fuse

7

6572065

BULB

8

6572053

PANEL RH

9

898731

1156 BULB

10

6564907

SOCKET ASSY

11

6512808

SWITCH

12

6572054

PANEL LH

13

6557493

GROMMET

14

6664886

HOURMETER Was 6631657 - A

15

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

15

6669664

VOLTMETER W/O clamp

16

30H41

CLIP

17

6563740

LAMP

18

FUEL GUAGE NLA - W/clamp - Order 6669665 gauge & 6679027 clamp - Was 6658820 - A

18

6669665

FUEL GUAGE W/O clamp

19

83D4

NUT 10

20

25G412

CAPSCRW10

21

6702642

SCREW Was 84G003112B - B

22

83D5

NUT 5

23

65G608

SCREW

24

12D6

NUT 10

25

6598721

NUT

26

12E6

WASHER

27

6572056

LENS

28

6514643

GASKET

29

6514642

CAP

30

6572066

CROSSMEMBER

31

6631649

GAUGE See BTI259 eng. temp.

31

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

31

6669663

GAUGE See BTI259 eng temp - W/O clamp

32

6568175

SENDER, FUEL fuel

33

12D10

NUT

34

6632215

GROMMET

35

6599781

KNOB light switch

36

6599696

SOCKET & BULB assy.

36

895771

#161 BULB

37

17C512

BOLT 5

38

31H38

CLAMP

39

85D5

NUT 5

40

89G544

SCREW

41

6567896

SHIELD

42

6567898

SPACER

43

6567897

HOUSING

44

85G1008

SCREW

45

30H54

CLIP

46

10C512

BOLT Was 6553808 - A

47

6563431

PLATE

48

84G3712

BOLT 5

49

1319451

FUSE 5
