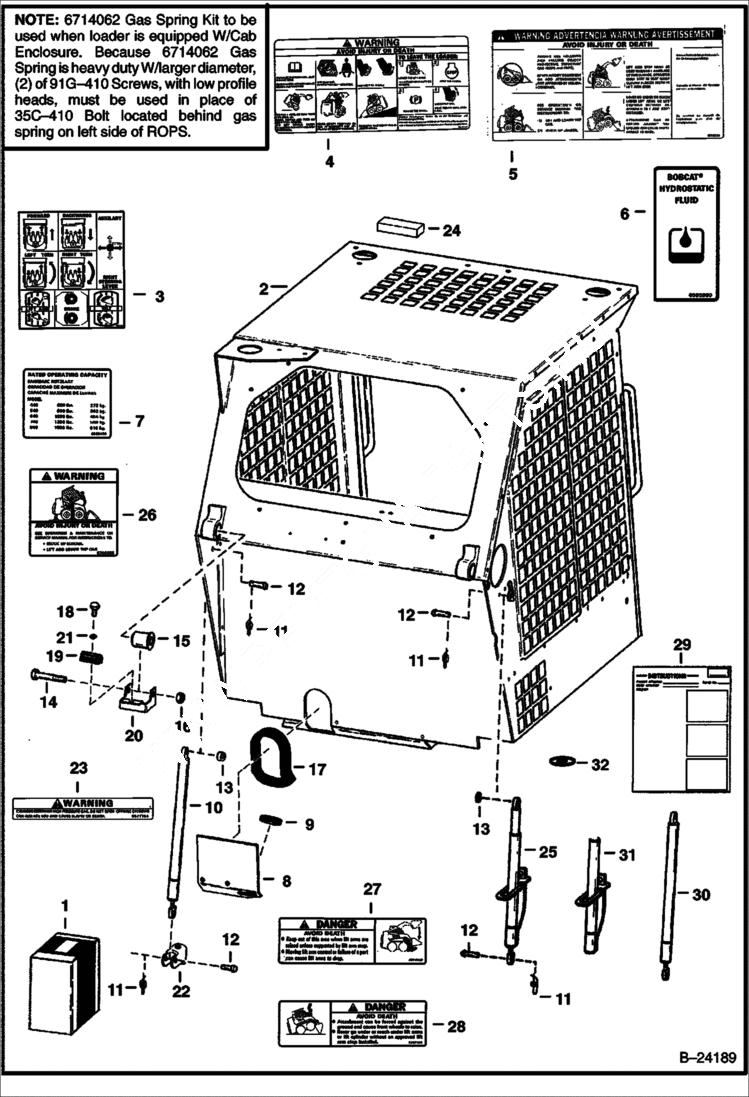

Запчасти Bobcat 600s OPERATOR CAB (S/N 19999 & Below) MAIN FRAME

1

6569248

KIT cab - Ref. 8-25, 29 - also order 6569249

2

CAB See BTI245 NSS - Order Ref. 1

3

6569021

DECAL - Was 6557312 - A

4

6579510

DECAL Was 6575855 - A

5

DECAL NLA - Order Ref. 4 & 26-28 - Was 6575855 - A

6

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

7

6568439

DECAL

8

6568431

SHIELD

9

6553653

GROMMET

10

6700171

GAS SPRING w/o lock - also order 6675257, clevis - Was 6700000 - A

10

6714062

KIT W/O lock-heavy duty gas spring -SEE NOTE

10

91G416

SCREW SEE NOTE - Was 91G000410B - A

10

6900531

INSTRUCTIONS For Kit 6714062

11

6631418

RING, RETAINING

12

6567743

PIN

13

6567604

SPACER

14

17C1060

BOLT

15

6562602

BUSHING rubber

16

83D10

NUT 5

17

6555351

SEAL bulk - sold per foot

18

84G2516

BOLT Was 65G-416 - B

19

6568475

STOP

20

6568492

BRACKET

21

25E13

WASHER 5

22

6567603

BRACKET

23

6577754

DECAL, WARNING 5 gas spring - Was 6568741 - A

24

6560690

STRIP

25

GAS SPRING NLA - W/Lock - Order Ref. 30-32 - Was 6701176 - A

26

6702255

DECAL warning

27

6702301

DECAL, DANGER

28

6702302

DECAL, DANGER

29

6570065

INSTRUCTIONS

30

6664205

GAS SPRING also order 6675257, clevis

30

6675257

CLEVIS

31

6708189

TUBE stop

32

6701174

WASHER
