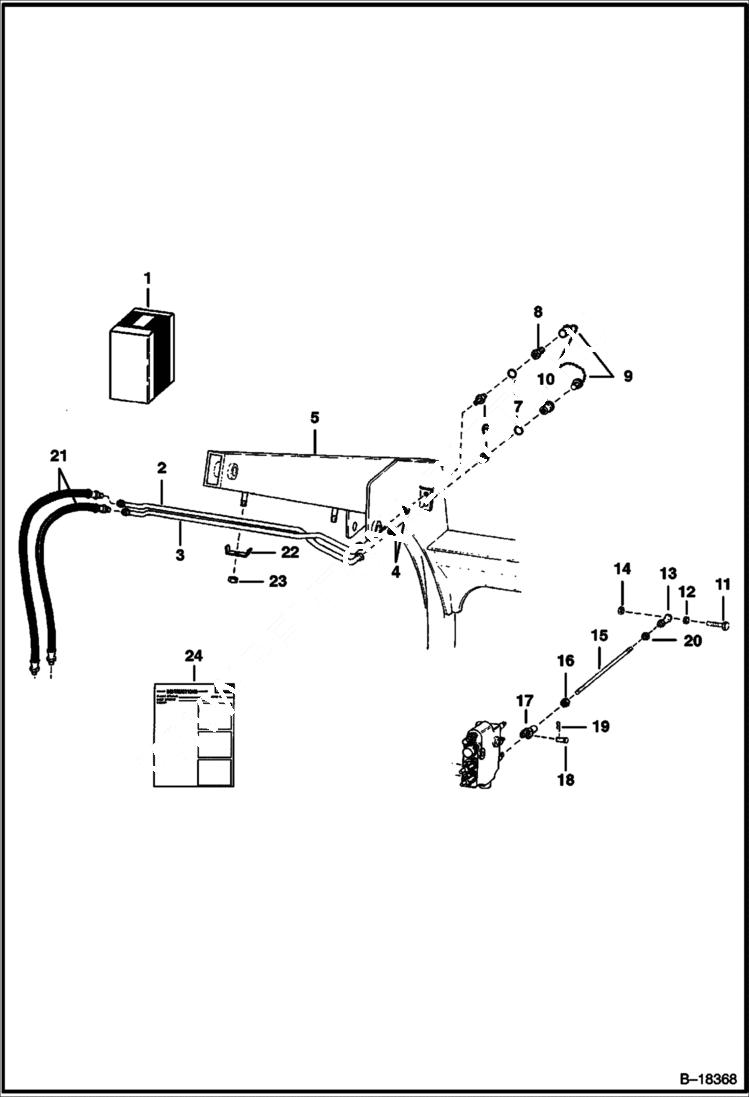

Запчасти Bobcat 600s AUXILIARY HYDRAULICS KIT ACCESSORIES & OPTIONS

1

6571890

KIT aux. hyd. - Ref. 2-24

2

6558415

TUBE

3

6558414

TUBE

4

86F7

LOCK NUT

5

LIFT ARM See Illustration LIFT ARMS & BOBTACH/ B24203

6

45K7

CONNECTR

7

79K10

O RING 10

8

6598757

COUPLER, POPPET MALE straight

9

6513709

CAP PLUG assy. - Rubber

10

6598758

COUPLER, POPPET FEMALE straight

10

48K16

O RING 10

11

17C620

BOLT

12

6564535

SPACER Was 6557831 - A

13

6512955

SWIVEL L.H. threads

14

85D6

NUT, 5

15

6557090

ROD

16

8D6

NUT 5

17

6564655

CLEVIS Was 6560526 - A

18

6564654

PIN

19

6513495

COTTER PIN

20

13D6

NUT

21

6541094

HOSE

22

6502203

CLAMP

23

59D6

NUT

24

6570257

INSTRUCTIONS
