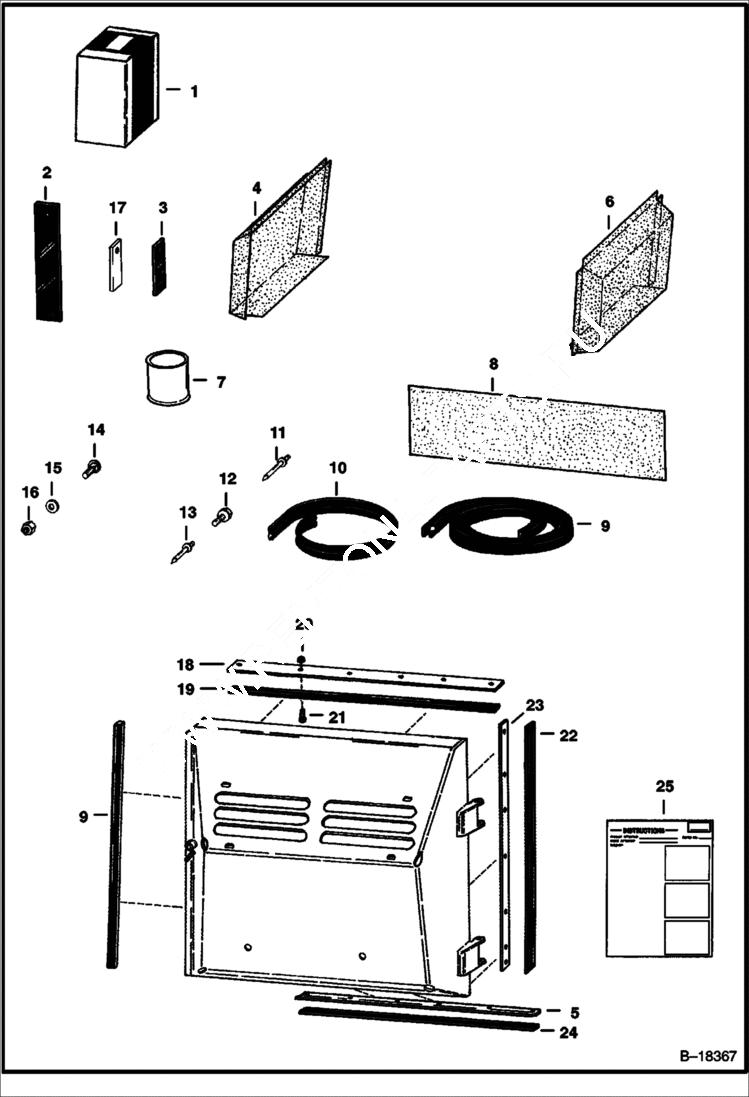

Запчасти Bobcat 600s AIR SEAL/SCREEN KIT ACCESSORIES & OPTIONS

1

6568767

KIT Ref. 2-25

2

6565134

COVER rubber - Lift Cylinder

3

6565141

COVER rubber - For Slots

4

6569404

SCREEN R.H.

5

6569938

RETAINER

6

6569405

SCREEN L.H.

7

6633583

SEALANT, POLYURETHANE 300 ML Was 6555349 - A

8

6565142

SCREEN rear door

9

SEAL NLA - rear door - bulk - sold per foot - Was 6632217 - A

10

6513152

SEAL air duct - bulk-Sold Per Foot

11

6591035

RIVET For Rear Door

12

84G3716

SCREW 5

13

6515213

RIVET For Cab Screen

14

BOLT NLA - carriage bolt - 3/8'' x 1'' - Was 7C000616B - A

15

25E17

WASHER 5

16

85D6

NUT, 5

17

6567664

COVER spring

18

6567303

RETAINER

19

6567304

SEAL

20

85D5

NUT 5

21

17C516

BOLT

22

6569876

SEAL

23

6569877

STRIP

24

6569937

SEAL

25

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566965 - A
