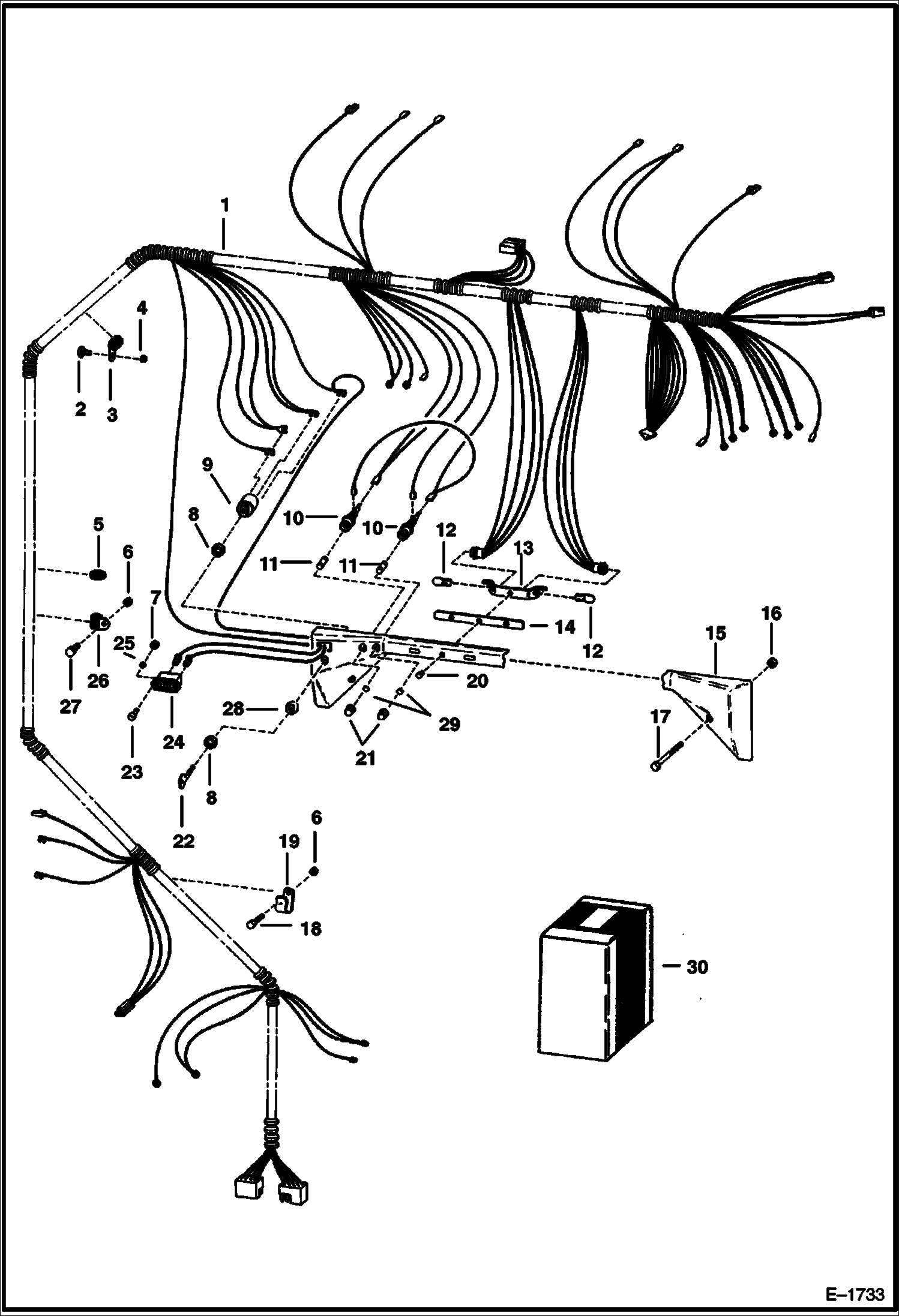

Запчасти Bobcat 600s CAB ELECTRICAL (S/N 27320 & Below) ELECTRICAL SYSTEM

1

6567802

HARNESS

2

25G412

CAPSCRW10

3

30H55

CLIP Was 30H000054B - B

4

83D4

NUT 10

5

6632215

GROMMET

6

85D5

NUT 5

7

12D6

NUT 10

8

6598721

NUT Use W/Ref. 9 (NLA/6519592 Switch)

8

6674202

NUT Use W/Ref. 9 (6665606 Switch)

9

SWITCH See BTI289 NLA - ignition - W/Ref. 8 & 22 - Order Ref. 30 - Was 6519592 - A

9

6665606

SWITCH

10

6513469

HOLDER W/Ref. 21 - fuse

11

1319451

FUSE 5

12

6513468

BULB

13

6558242

BRACKET

14

6560699

LENS Was 6564785 - A

15

6571620

PANEL

16

83D5

NUT 5

17

17C572

BOLT

18

17C512

BOLT 5

19

31H38

CLAMP

20

6514742

RIVET

21

6514642

CAP

22

6512809

KEY Use W/Ref. 9 (NLA/6519592 Switch)

22

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

22

6693241

KEY 10 ignition - single key W/O ring

23

85G608

SCREW

24

6664886

HOURMETER Was 6631657 - A

25

12E6

WASHER

26

30H41

CLIP

27

10C512

BOLT Was 6553808 - A

28

6563431

PLATE Use W/Ref. 9 (NLA/6519592 Switch)

28

6709172

PLATE Use W/Ref. 9 (6665606 Switch)

29

6514643

GASKET

30

6724282

SWITCH KIT Ref. 9, 22 & 28
