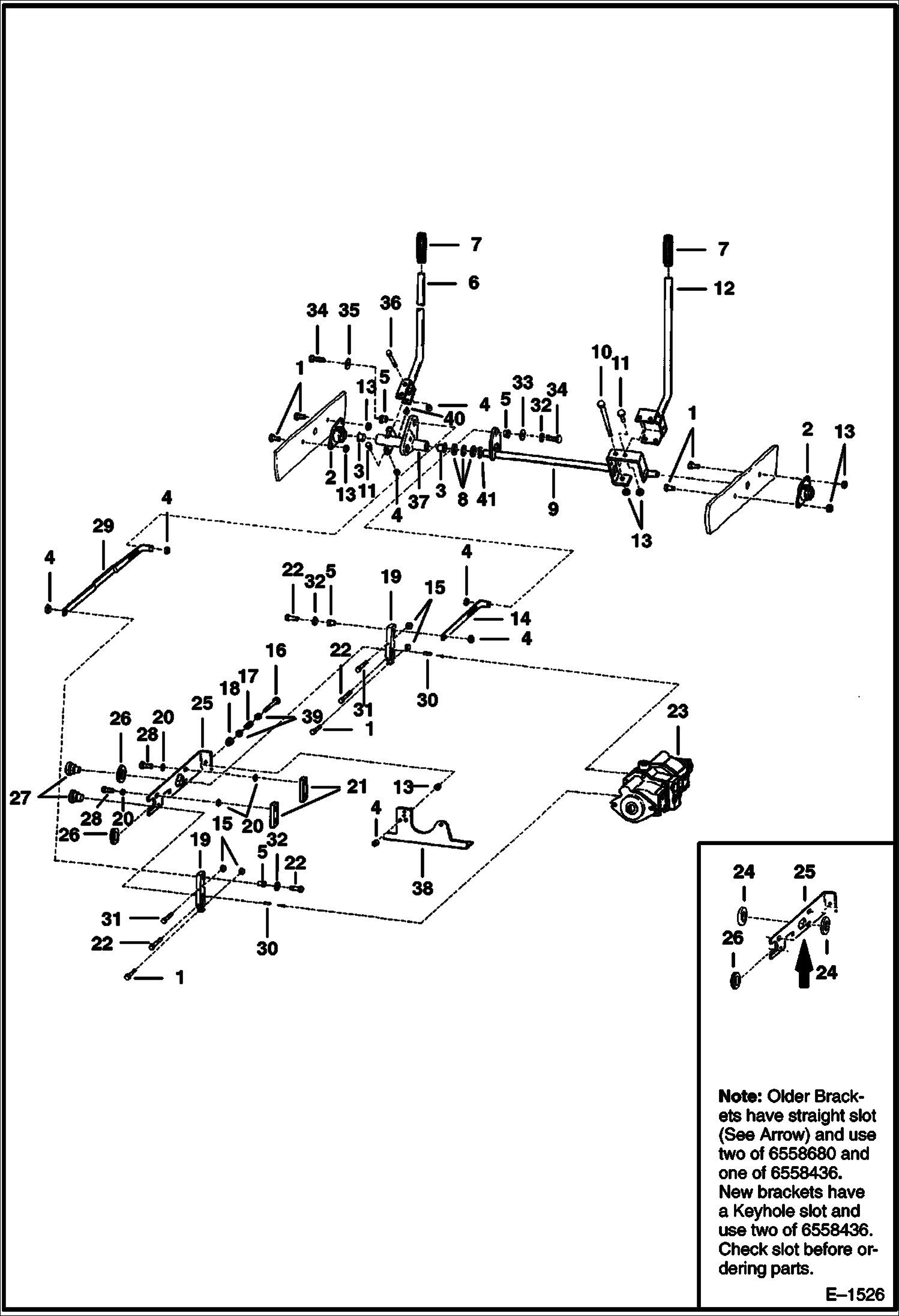

Запчасти Bobcat 600s HAND CONTROLS HYDROSTATIC SYSTEM

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6569496

LEVER L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE R.H.

13

61D6

NUT 5

14

6558431

BAR

15

6562062

CAM

16

17C692

BOLTS

17

SPRING NLA - .44'' (11,17 mm) I.D. - Order 6572026 & 2-6571991 - Was 6505082 - A

17

6572026

SPRING .75'' (19,05 mm) I.D.

18

6579990

WASHER Was 6558429 - A

18

6571988

BUSHING

19

6563993

LEVER

20

6557831

WASHER

21

6562281

BAR

22

17C628

BOLT

23

PUMP See Illustration HYDROSTATIC PUMP/ B18343 HYDRO.

24

6558680

WASHER See Note

25

6562767

BRACKET See BTI241

25

6571899

BRACKET See Note

26

6558436

GUIDE See Note

27

6562063

HUB

28

8C616

SCREW

29

6558430

BAR

30

5J806

KEY

31

17C624

BOLT 5

32

6563914

WASHER

33

6563965

WASHER

34

17C626

BOLT

35

6569505

WASHER

36

6569141

BOLT

37

6578492

LEVER Was 6569143 - A

38

6557463

MOUNT

39

6571991

GUIDE Use only with 6572026 Spring

40

10H35

FITTING, GREASE 10 Grease

41

6705033

WASHER .067'' (1,70 mm)
