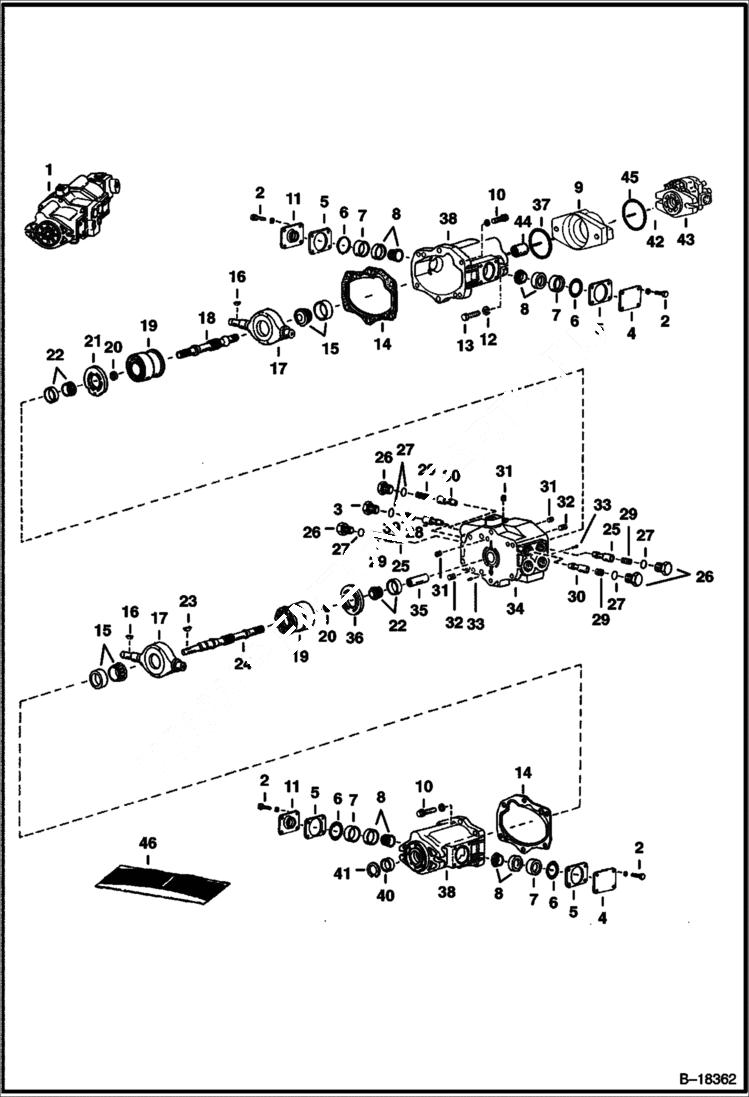

Запчасти Bobcat 600s HYDROSTATIC PUMP (S/N 31104 & Above) HYDROSTATIC SYSTEM

1

6660948

PUMP New

2

6513631

BOLT

3

6630784

PLUG

4

6512939

COVER

5

6512940

SHIM KIT

6

O-RING NSS

7

6512938

SPACER

8

232539

BEARING

9

6578778

ADAPTER

10

93G624

SCREW

11

6513094

COVER & SEAL

12

616791

WASHER

13

17C820

BOLT

14

6512941

GASKET

15

6513091

BEARING

16

5J806

KEY

17

6512929

YOKE

18

SHAFT NLA - Was 6661118 - A

19

ROTATING GROUP NLA - Was 6512930 - A

20

6512948

KIT

20

6674240

SPACER (.137in.)

20

6674241

SPACER (.139in.)

20

6674242

SPACER (.142in.)

20

6674243

SPACER (.145in.)

20

6674244

SPACER (.148in.)

20

6674245

SPACER (.151in.)

20

6674246

SPACER (.154in.)

20

6674247

SPACER (.157in.)

20

6674248

SPACER (.160in.)

20

6674249

SPACER (.163in.)

20

6674250

SPACER (.166in.)

20

6674251

SPACER (.169in.)

21

6598478

WEAR PLATE

22

6513093

BEARING

23

6519654

KEY

24

6512942

SHAFT, DRIVE HYD

25

RELIEF VALVE NLA - Relief Valve - High PSI - Was 6512947 - A

26

6513434

PLUG

27

79K12

O RING 10

28

POPPET NLA - Was 6630786 - A

29

6513433

SPRING

30

6513432

POPPET Remanufacturing

31

16F4

PLUG

32

6513089

PIN

33

6513092

PIN

34

BODY NLA - valve - Was 6512931 - A

35

6512933

COUPLER

36

WEAR PLATE NLA - Was 6598477 - A

37

6512949

O-RING

38

HOUSING NLA - Was 6598433 - A

39

SPRING NLA - Was 6630785 - A

40

6513090

SEAL, SHAFT

41

507695

SNAP RING

42

711054

SNAP RING

43

GEAR PUMP See Illustration GEAR PUMP/ B18344

44

6661120

COUPLER

45

25K20308

O RING 10 not in seal kit - Was 6661119 - A

46

6512943

KIT, SEAL Ref. 6, 14, 27, 37 & 40 - Also Order Ref. 45
