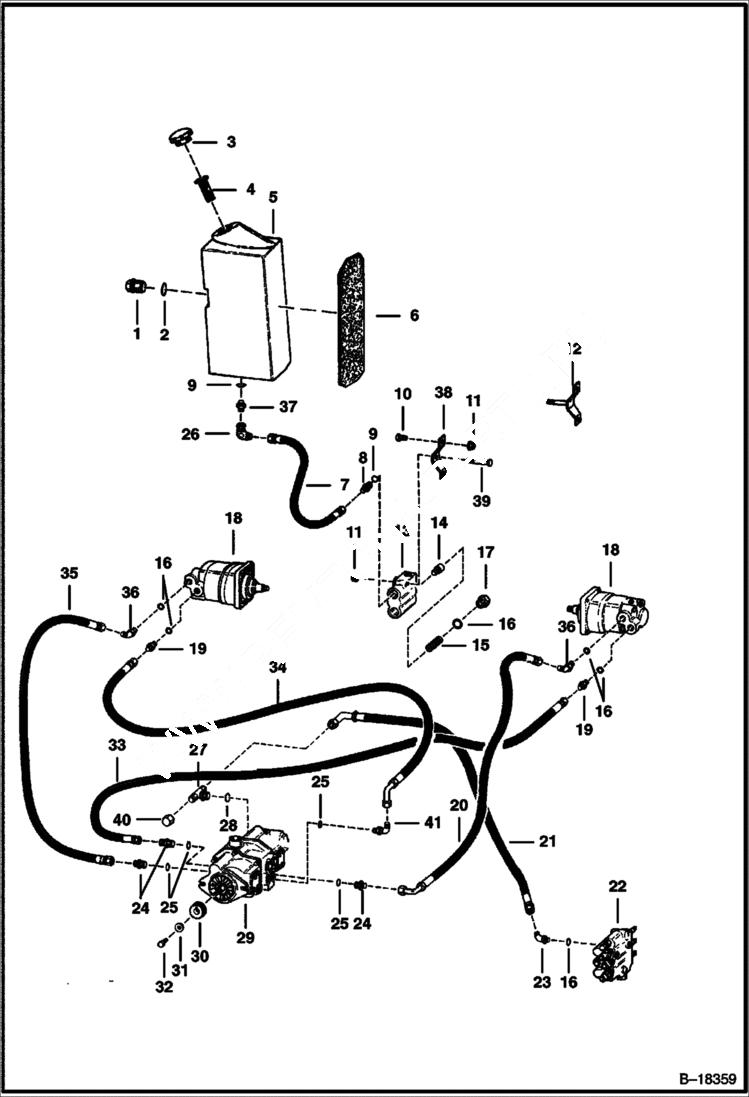

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY (S/N 31104 & Above) HYDROSTATIC SYSTEM

1

SIGHT GAUGE NLA - W/Ref. 2 Plastic - Order 6665915 & 79K000012B - Was 6631610 - A

1

6665915

GAUGE Steel - Also Order 79K000012B - Was 6656338 - A

2

25K40030

O RING 10

3

BREATHER CAP NLA - Pack of 12 - Was 1779011B - A

3

6727475

CAP, OIL HYD Qty. of 1 - Was 6577785 - A

4

7120881

SCREEN, FILLER Was 6569219 - A

5

6569220

TANK

6

6565012

INSULATION

7

6565572

HOSE

8

15K8

FITTING W/Ref. 9

9

79K12

O RING 10

10

35C616

BOLT 5

11

83D6

NUT 5

12

BRACKET NLA - Order Ref. 38 & 39 - Was 6569047 - A

13

6565748

BLOCK port

14

6565620

POPPET

15

6562691

SPRING

16

79K10

O RING 10

17

6561811

PLUG W/Ref. 16

18

MOTOR See Illustration HYDROSTATIC MOTOR/ D1678 HYDRO.

19

15K7

FITTING W/Ref. 16

20

6565791

HOSE

21

6704270

HOSE For use with 858021 Gear Pump

21

6705891

HOSE For use with W9A1S012 Gear Pump

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B18342

23

6532179

ELBOW W/Ref. 16 - Was 17K000007B - B

24

15KB1216

FITTING, HYD CONNECTOR W/Ref. 25 - Was 712555B - A

25

79K16

O RING 10

26

11K8

ELBOW

27

19K6

FITTING W/Ref. 28

28

79K8

O RING 10

29

PUMP See Illustration HYDROSTATIC PUMP/ B18343

30

7106572

ADAPTER, SHAFT Was 6558924 - B

31

616783

WASHER

32

18C616

BOLT 5

33

6565792

HOSE

34

6565790

HOSE

35

6565934

HOSE

36

18K7

FITTING W/Ref. 16

37

15K8

FITTING W/Ref. 9

38

6569580

BRACKET

39

7C640

BOLT carriage

40

36K6

CAP

41

731016

ELBOW
