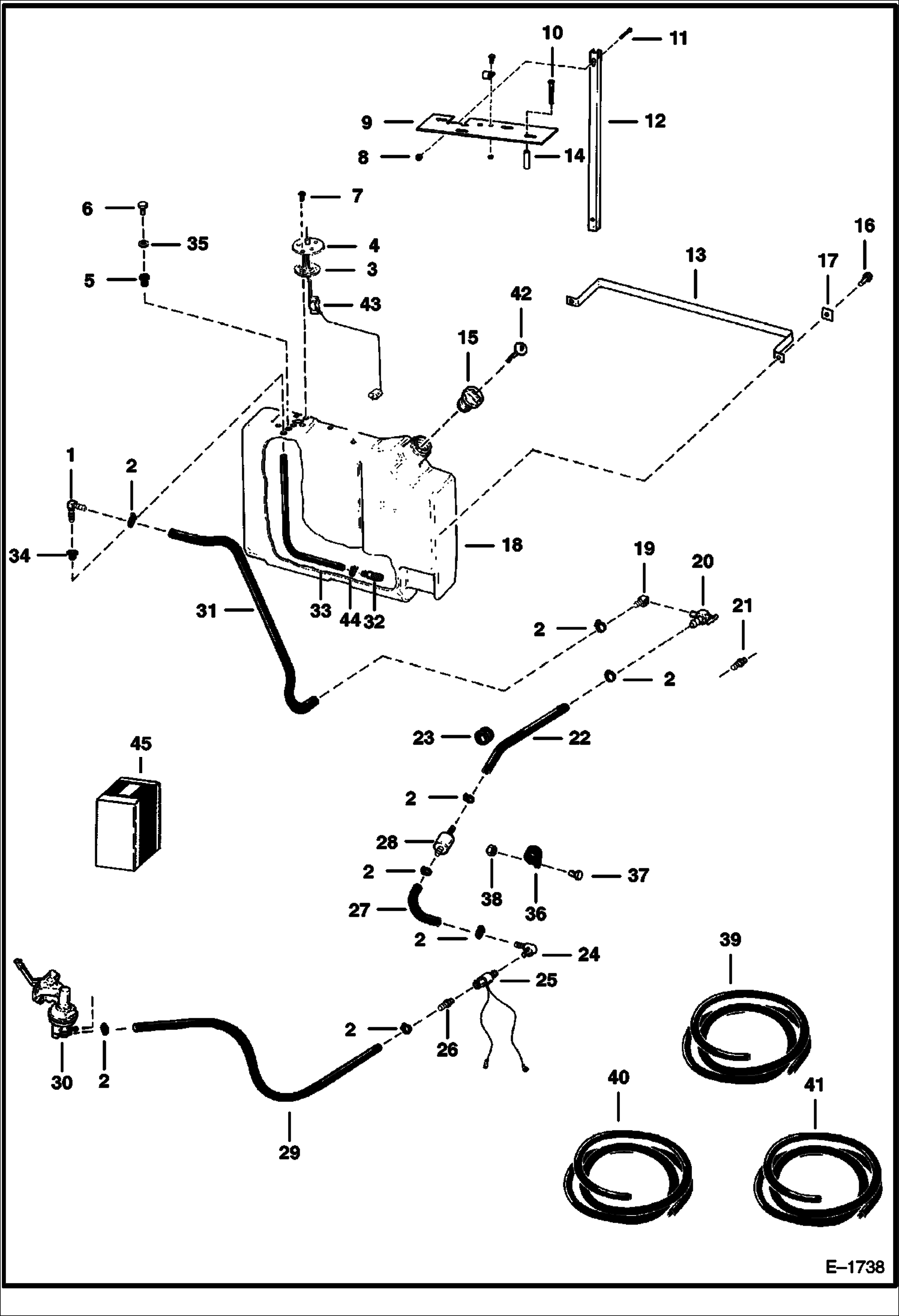

Запчасти Bobcat 600s FUEL SYSTEM MAIN FRAME

1

6598908

ELBOW Was 6681462 - A

2

42HS04

CLAMP, HOSE Was 6515575 - A

3

6519201

GASKET

4

6571711

FLANGE

5

1308362

WELL NUT

6

17C414

BOLT

7

87G1010

SCREW Was 85G001010B - B

8

12D10

NUT

9

6567896

SHIELD

10

89G544

SCREW

11

87G1008

SCREW Was 85G001008B - B

12

6567897

HOUSING

13

6562559

BAND

14

6567898

SPACER

15

6632468

CAP Was 6555717 - A

15

CAP NLA - locking - Code GC020 - Was 6635877 - A

15

6662770

CAP locking - W/Ref. 42 - Code PK510

16

84G3720

BOLT

17

6559447

WASHER square

18

6567909

TANK

19

6598753

ELBOW

20

6632593

VALVE shut-off - Was 6512138 - A

21

6505813

CONNECTOR Use W/Barbless Fuel Valve

22

HOSE NLA - 3-1/2'' (88,9 mm) - Order Ref. 40

23

6515603

GROMMET

24

6515156

CONNECTOR Was 6592277 - A

25

7024822

SOLENOID, FUEL Was 6559117

26

6505813

CONNECTOR

27

HOSE NLA - Order Ref. 40

28

6511393

FILTER

29

HOSE NLA - 16'' (406,4 mm) - Order Ref. 39

30

FUEL PUMP See Illustration CYLINDER HEAD/ D1773

31

HOSE NLA - 35'' (889 mm) - Order Ref. 39

32

6650239

SCREEN, FUEL PICKUP Was 6598911

33

HOSE NLA - 21'' (533,4 mm) - Order Ref. 41 - Was 6564193 - A

34

6553411

BUSHING 0.38'' ID

35

25E13

WASHER 5

36

30H57

CLAMP Was 31H000027B - B

37

7C512

SCREW

38

61D5

NUT

39

6577822

HOSE bulk-Sold Per Foot - Order Feet Required - Was 6562515 - A

40

6577821

HOSE bulk - sold per foot - Was 672221 - A

41

6569752

HOSE BULK/FT bulk - sold per foot

42

6654374

KEY Code GC020

42

6587458

KEY Code PK510

43

6568175

SENDER, FUEL

44

6661213

RING, COMPRESSION
