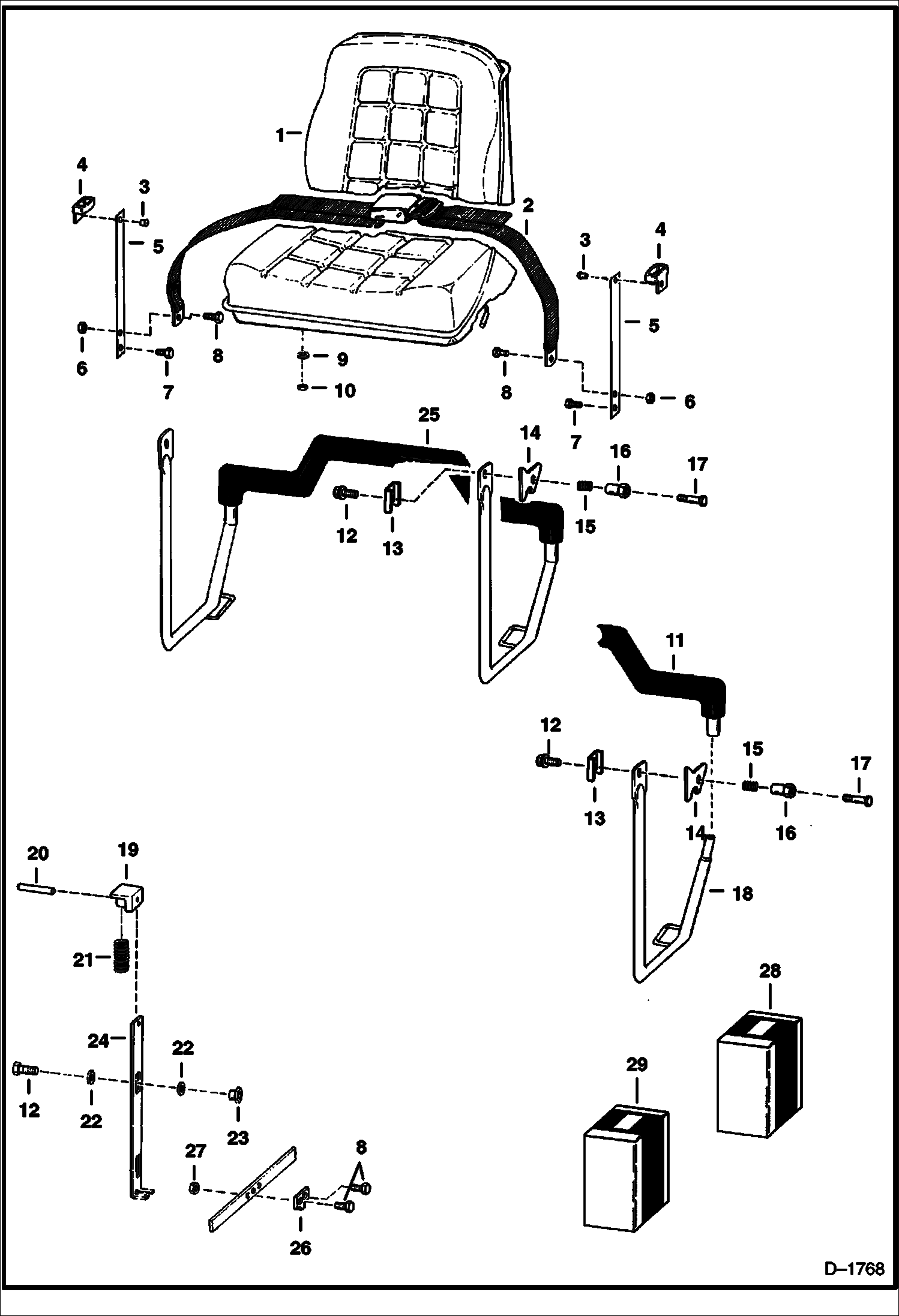

Запчасти Bobcat 600s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT/ B7185

2

SEAT BELT NLA - Order Ref. 29 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 Seat Belt and (2) of Ref. 5 (6725373 Spring Plates) - Was 6667875 - A

2

SEAT BELT W/ Spring Plates - Order 6675074 Seat Belt and (2) of Ref. 5 (6725373 Spring Plates) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

6630207

RIVET 5 Was 6512797 - A

4

GUIDE NLA - Order 6703703 - Was 6565355

5

GUIDE ASSY. NLA - W/Ref. 3 & 4 - 13.75 Use W/ NLA/6564774 Seat Belt - Was 6565354 - A

5

GUIDE ASSY. NLA - 12.25 Use W/ NLA/6667875 Seat Belt - Order 6711908 Spring Plates - Ref. 4 and (2) of Ref. 3 - Was 6711907 - A

5

6711908

SPRING PLATE Use W/ Ref. 2 (NLA/6667875 Seat Belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

85D7

NUT

7

84G3712

BOLT 5

8

17C716

BOLT

9

4E5

WASHER Was 4E000006B - B

10

61D5

NUT Was 61D000006B - B

11

SEAT BAR NLA - Order Ref. 27 - Was 6563095 - A

12

17C612

BOLT 5

13

6563557

WASHER

14

6563313

RETAINER

15

6704453

SPRING Was 6503387 - A

16

6568742

BUSHING

17

35C608

BOLT

18

ARM NLA - R.H. - Order Ref. 27 - Was 6563296 - A

18

ARM NLA - L.H. - Order Ref. 27 - Was 6563295 - A

19

6563148

BLOCK, SPRING

20

14J2512

PIN 5

21

6702430

SPRING, COMPRESSION Was 6563149 - C

22

6700170

WASHER Nylon - Was 6563152 - A

23

6559479

NUT

24

6563150

LOCK Was - A

25

6703301

SEAT BAR 1 Piece With Arms - Was 6564588 - A

26

6563151

LINK

27

83D6

NUT 5

28

6706796

KIT See Illustration SEAT BAR KIT/ C3341 GAS SPRING SEAT BAR

28

6713061

KIT W/Ref. 2 & 5

29

KIT NLA - W/ Ref. 2 & 5 - Order Ref. 2 (6675074) - Seat Belt) - Was 6713061 - A
