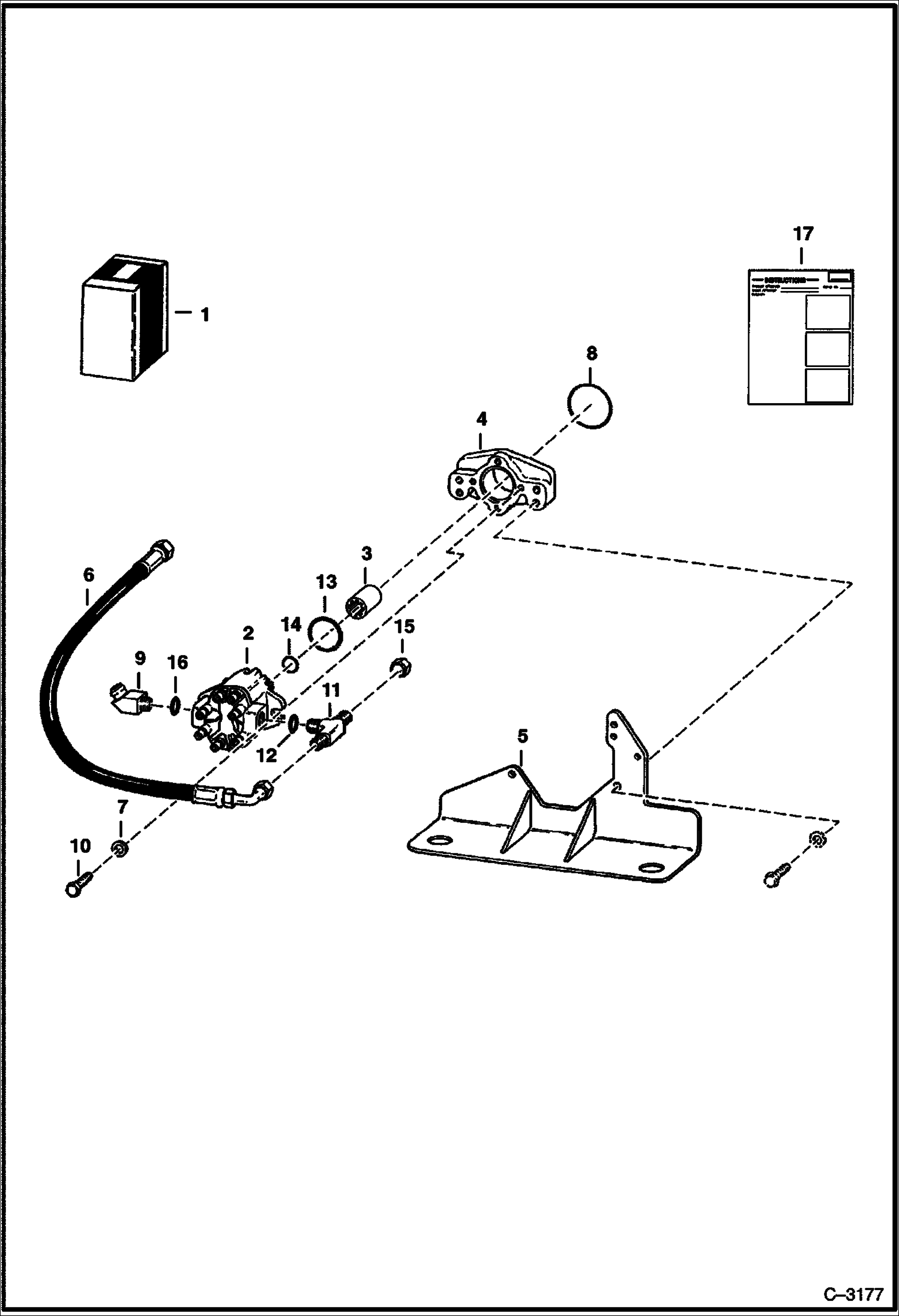

Запчасти Bobcat 600s GEAR PUMP KIT (S/N 5014 13524 & Abv.) ACCESSORIES & OPTIONS

1

6578864

KIT W/Ref. 2 - 16

2

GEAR PUMP NLA - Order 6662894 & 6705891 Hose - Was 6648323 - A

2

6662894

GEAR PUMP See Illustration GEAR PUMP/ B18187 See Illustration GEAR PUMP/ B18344

2

SEAL KIT NLA - For 858021 Gear Pump - Was 6652881 - A

3

6650105

COUPLER spline

4

6578778

ADAPTER

5

6577493

BRACKET

6

6705891

HOSE Was 6704270 - A

7

6510584

WASHER

8

6512949

O-RING

9

6577888

ELBOW

10

17C620

BOLT Was 17C000616B - B

11

19K6

FITTING W/Ref. 12 - Was 17K000006B - B

12

79K8

O RING 10

13

25K30308

O RING 10

14

25K30022

O RING 10

15

36K6

CAP

16

79K12

O RING 10

17

6570766

INSTRUCTIONS
