Запчасти Bobcat 600s CAB AIR DUCT KIT (S/N 12001 & Below) ACCESSORIES & OPTIONS

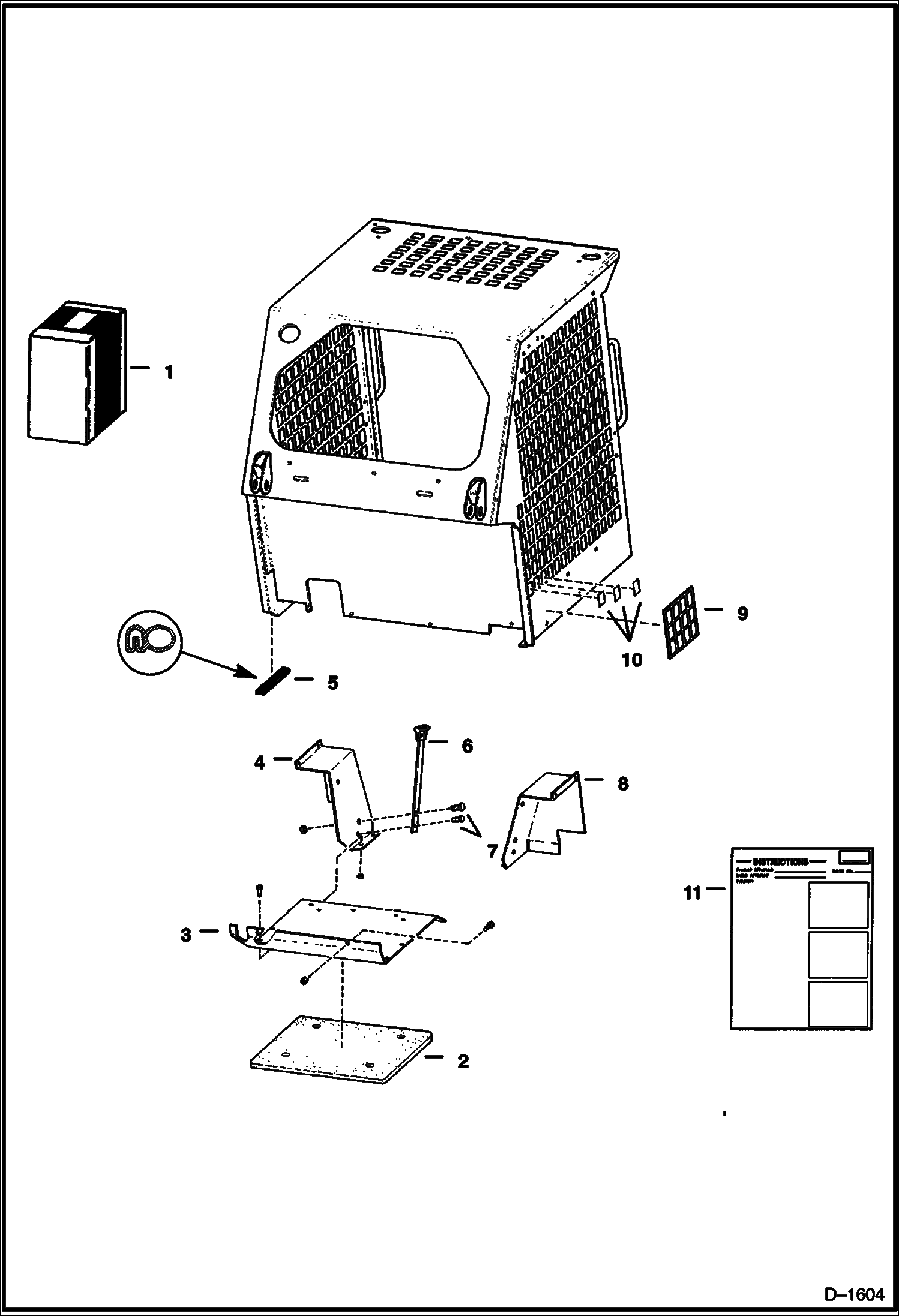

Схема запчастей Bobcat 600s - CAB AIR DUCT KIT (S/N 12001 & Below) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT NLA - cab air duct - Order Ref. 2 - 11 - Was 6564689 - A

2

6564688

INSULATION seat pan

3

SEAT PAN NLA - Was 6564550 - A

4

6564542

DUCT air - L.H.

5

6564771

SEAL

6

6564552

SUPPORT seat belt

7

84G3710

SCREW

8

6564541

DUCT air - R.H.

9

6564589

SCREEN

10

6565116

PLUG side screen

11

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6566350 - A

Выбрано товаров: 11
