Запчасти Bobcat 600s FRONT COVER POWER UNIT

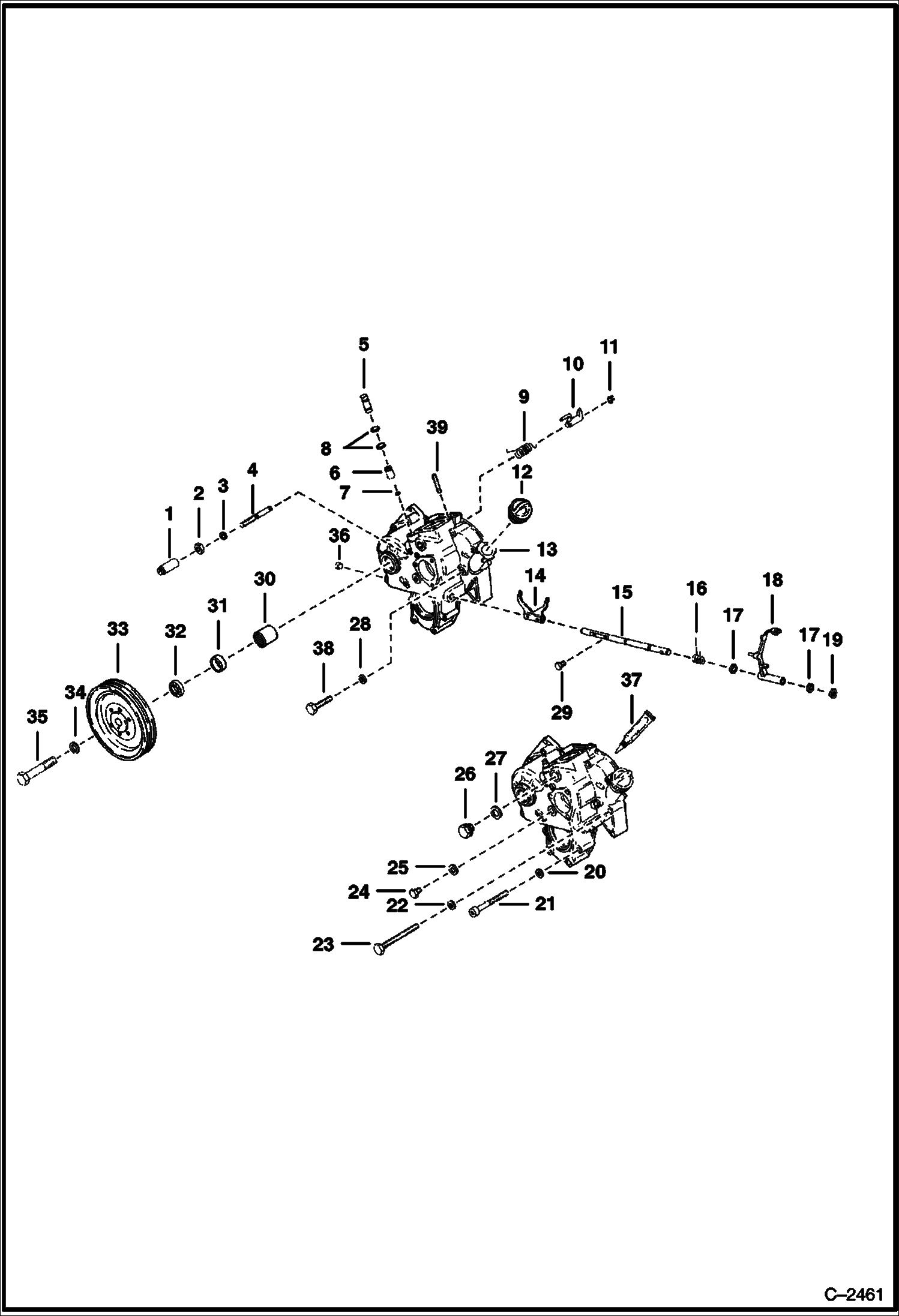

Схема запчастей Bobcat 600s - FRONT COVER POWER UNIT

Артикул

Название

Примечание

Количество

1

6511935

CAP rack adjustment

2

NUT NLA - Was 33DM00080B - A

3

1FM80115

WASHER

4

6515982

SHAFT

5

6598488

PLUNGER See BTI196

6

6598489

BUSHING See BTI196

7

6515986

O-RING See BTI196

8

6598490

SEAL See BTI196

9

6515983

SPRING

10

6513894

STOP

11

5JM8

CLIP circlip

12

6513893

OIL CAP oil

13

6598965

COVER front

14

SPRING NLA - governor - Order Ref. 14 & 15

14

6630277

SPRING governor - 4 Bolt Holes

15

6630280

SHAFT 4 Bolt Holes

16

6515981

SPRING

17

9JM90

RETAINER

18

6513776

ARM

19

6515988

WASHER

20

6511928

WASHER

21

1GM650

BOLT socket head

22

1FM60100

WASHER

23

4CM670

BOLT socket head

24

1KM16

PLUG hex head

25

6513749

WASHER

26

1KM22

PLUG hex head

27

6515946

WASHER

28

6511942

WASHER

29

6513778

BOLT

30

6513782

BEARING needle

31

6511607

SEAL shaft

32

6511609

WASHER

33

6513739

PULLEY idler

34

6516002

WASHER

35

6511608

BOLT

36

3FM00012

PLUG

37

6513891

GASKET tube - Form a Gasket

38

6513780

BOLT

39

6511936

STUD

Выбрано товаров: 40
