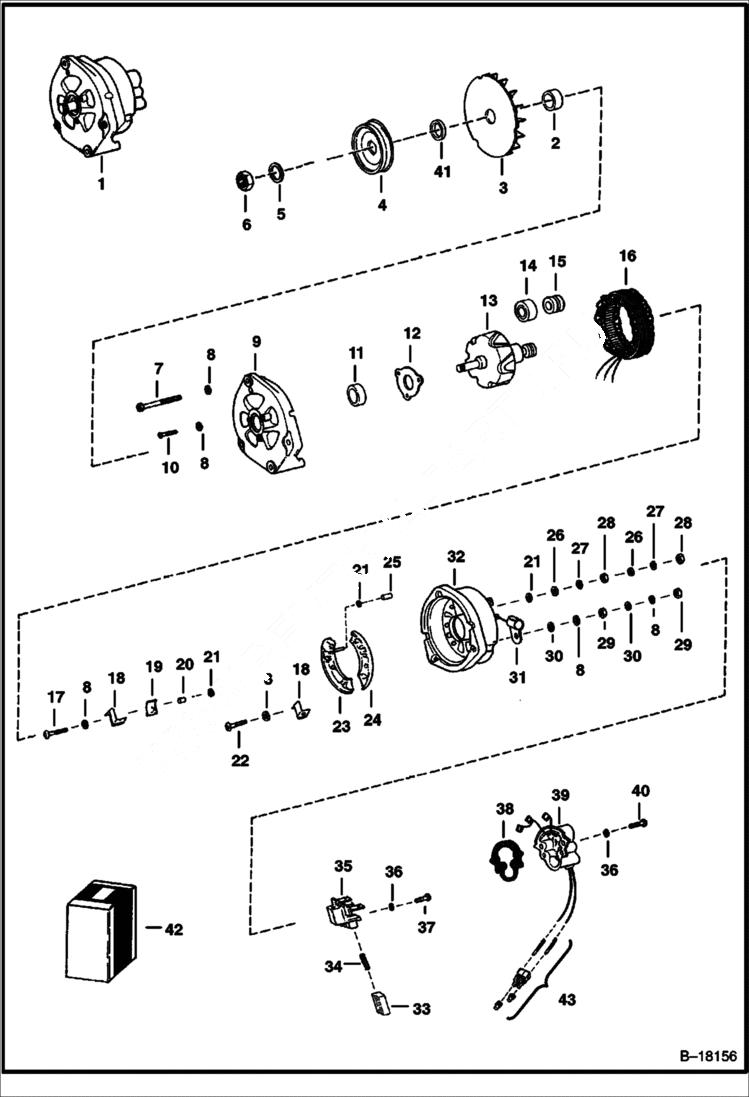

Запчасти Bobcat 600s ALTERNATOR (Bobcat) ELECTRICAL SYSTEM

1

6661611

ALTERNATOR See BTI277 Less Fan & Pulley - Was 6632211 - A

1

6661611REM

ALTERNATOR, 55 AMP

1

6661611EF

ALTERNATOR

2

6632210

WASHER

3

6632209

FAN

4

6571516

PULLEY

5

6632208

WASHER

6

NUT NLA - Was 6632207 - A

7

6632222

BOLT

8

WASHER NSS

9

6632224

BRACKET W/Ref. 8 & 10-12

10

SCREW NSS

11

BEARING NSS

12

RETAINER NSS

13

6632229

ROTOR W/Ref. 14 & 15

14

BEARING NSS

15

SLIP RING NSS

16

6632230

STATOR

17

BOLT NSS

18

CLAMP NSS

19

MOLD-U NSS

20

BUSHING NSS - insulation

21

WASHER NSS - insulation

22

SCREW NSS

23

HEATSINK NSS

24

HEATSINK NSS

25

BUSHING NSS - insulation

26

WASHER NSS

27

WASHER NSS

28

NUT NSS

29

NUT NSS

30

WASHER NSS

31

6632242

CONDENSER

32

BRACKET NSS - W/Ref. 8, 17-31 - Was 6632231 - A

33

BRUSH NSS

34

SPRING NSS

35

6632248

BRUSH HOLDER W/Ref. 33 & 34

36

WASHER NSS

37

SCREW NSS

38

6632253

GASKET

39

KIT NSS - Regulator - W/Ref. 36 & 38 - 40 - Was 6632384 - A

40

SCREW NSS

41

6571554

SPACER

42

6632381

KIT bearing - W/Ref. 11, 14 & 15

42

6632382

KIT external hardware - W/Ref. 8, 21, 26-30, 36, 37 & 40

42

6632383

KIT internal hardware - W/Ref. 8, 17- 22 & 25

42

6632385

KIT brush holder - W/Ref. 33 - 37

43

6577456

KIT weather - pak connector includes both male & female parts
