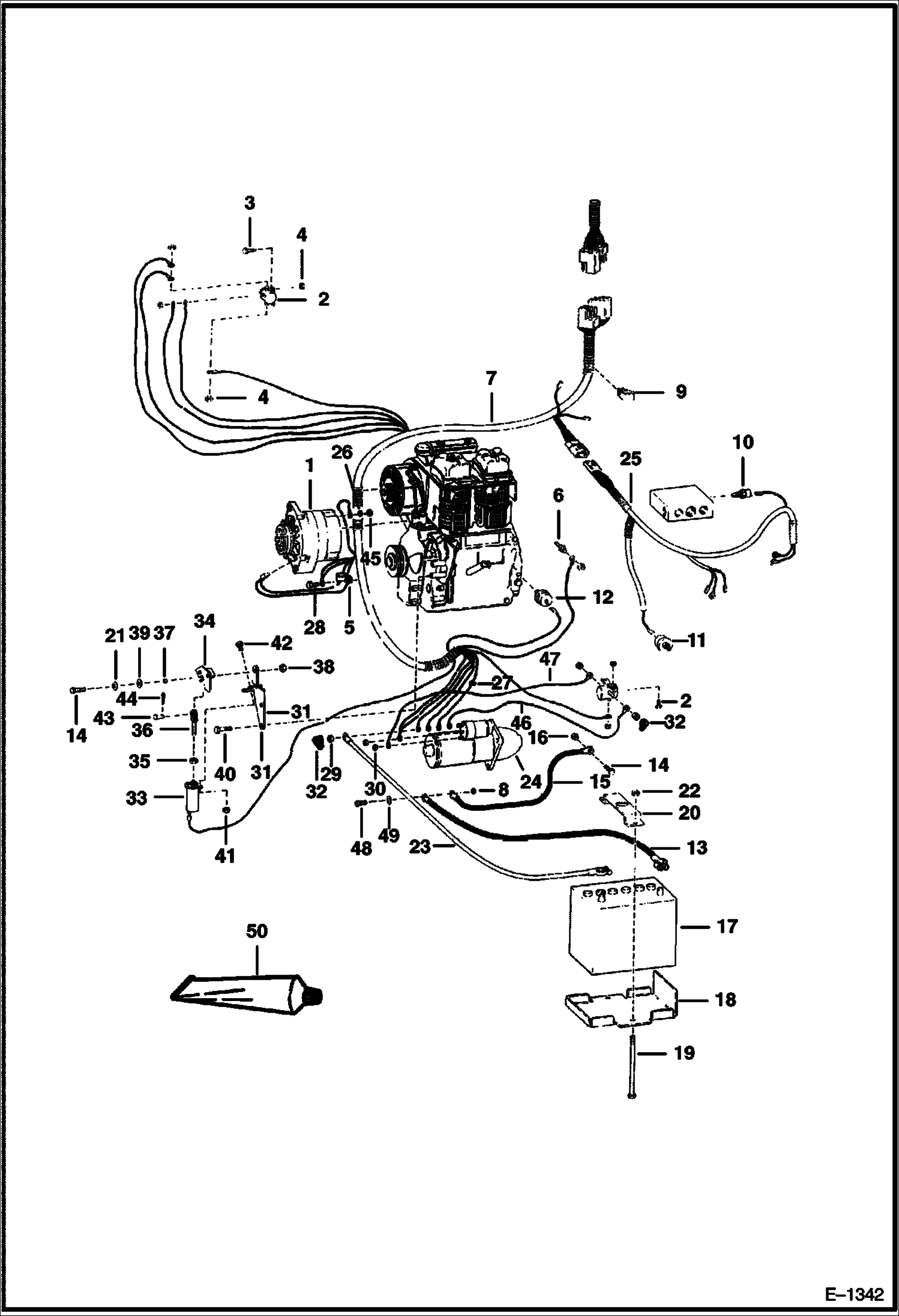

Запчасти Bobcat 600s ENGINE ELECTRICAL SYSTEM (S/N 12999 & Below) ELECTRICAL SYSTEM

1

ALTERNATOR See Illustration ALTERNATOR/ B18156 See Illustration ALTERNATOR/ C1802

2

6659319

SOLENOID pre-heater & starter - Was 6632186 - A

3

17C408

BOLT

4

83D4

NUT 10

5

30H47

CLIP

6

6511720

PRE-HEATER

7

6563725

HARNESS engine

8

61D6

NUT 5

9

30H46

CLIP

10

6598384

SWITCH hydro. temp.

11

6631695

SWITCH hydrostatic oil pressure - Was 6519715 - A

12

6513890

SWITCH eng. pressure

13

6553094

CABLE ground - Was 6562905 - A

14

17C512

BOLT 5

15

6563025

CABLE

16

61D5

NUT

17

6665032

BATTERY, DRY 700 AMP Was 6665031 - A

17

6630153

BATTERY CAP battery

18

6561733

MOUNT battery mtg.

19

BOLT NLA - Order 6569203, clamp & 6569623, bolt - Was 6562473 - A

20

6561734

BRACKET battery

21

25E15

WASHER

22

59D5

NUT 5

23

6562904

CABLE battery - Positive

24

STARTER See Illustration STARTER/ C2119 See Illustration STARTER/ B18157

25

6563038

HARNESS

26

6E4

WASHER 10

27

3675725

DIODE

28

4DM10

NUT

29

7D6

NUT

29

4DM10

NUT Metric

30

12D8

NUT

30

4DM5

NUT Metric

31

6561055

MOUNT

32

6560172

COVER

33

6599638

SOLENOID

34

6561078

LEVER

35

62D4

NUT

36

631551

YOKE

37

6559845

BUSHING

38

85D5

NUT 5

39

6512913

WASHER

40

1CM820

BOLT Was 4CM820 - A

41

85D4

NUT 5

42

93G410

BOLT

43

4F4051

PIN

44

1F212

PIN

45

1DM6

NUT Was 4DM6 - A

46

6562903

WIRE

47

6562902

WIRE

48

17C624

BOLT 5

49

6E6

WASHER

50

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz
