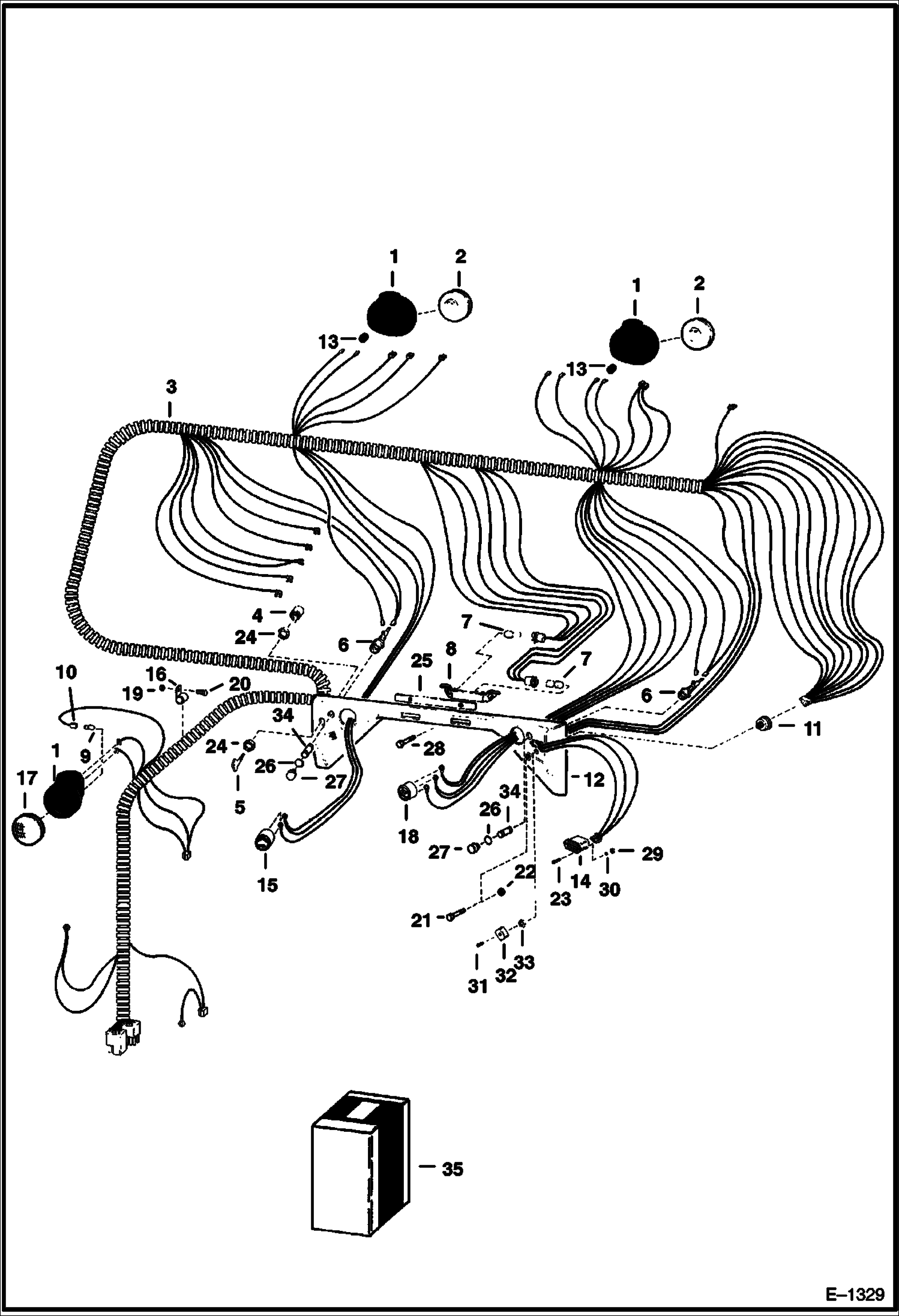

Запчасти Bobcat 600s CAB ELECTRICAL SYSTEM (S/N 12999 & Below) ELECTRICAL SYSTEM

1

6558142

HOUSING

2

6557486

LAMP

3

6561500

HARNESS

4

SWITCH See BTI289 NLA - ignition - Order Ref. 35 - Was 6519592 - A

4

6665606

SWITCH ignition

5

6512809

KEY for 6519592

5

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241- Was 6709527 - A

5

6693241

KEY 10 ignition - single key W/O ring

6

6513469

HOLDER fuse

7

6513468

BULB

8

6558242

BRACKET

9

960855

1003 BULB #1003 - Use only W/#4409 Lamp

9

898731

1156 BULB #1156 - Use only W/#4409X Lamp

10

6557504

SOCKET

11

6512808

SWITCH

12

6560182

PANEL

13

6557493

GROMMET

14

6631657

HOURMETER

15

6659912

VOLTMETER Was 6560354

16

30H45

CLIP Was 30H000041B - B

17

LAMP NLA - #4409 - Order 6563740 & 898731B

17

6563740

LAMP #4409X

18

6634273

GAUGE, FUEL Was 6560353 - A

19

61D5

NUT

20

10C512

BOLT Was 6553808 - A

21

17C572

BOLT

22

83D5

NUT 5

23

85G608

SCREW

24

6598721

NUT For NLA/6519592 Switch

24

6674202

NUT For 6665606 Switch

25

6560699

LENS

26

6514643

GASKET

27

6514642

CAP

28

6514742

RIVET

29

12D6

NUT 10

30

12E6

WASHER

31

SCREW NSS

32

6599781

KNOB

33

NUT NSS

34

1319451

FUSE 5

35

6724282

SWITCH KIT W/Ref. 4 & 5
