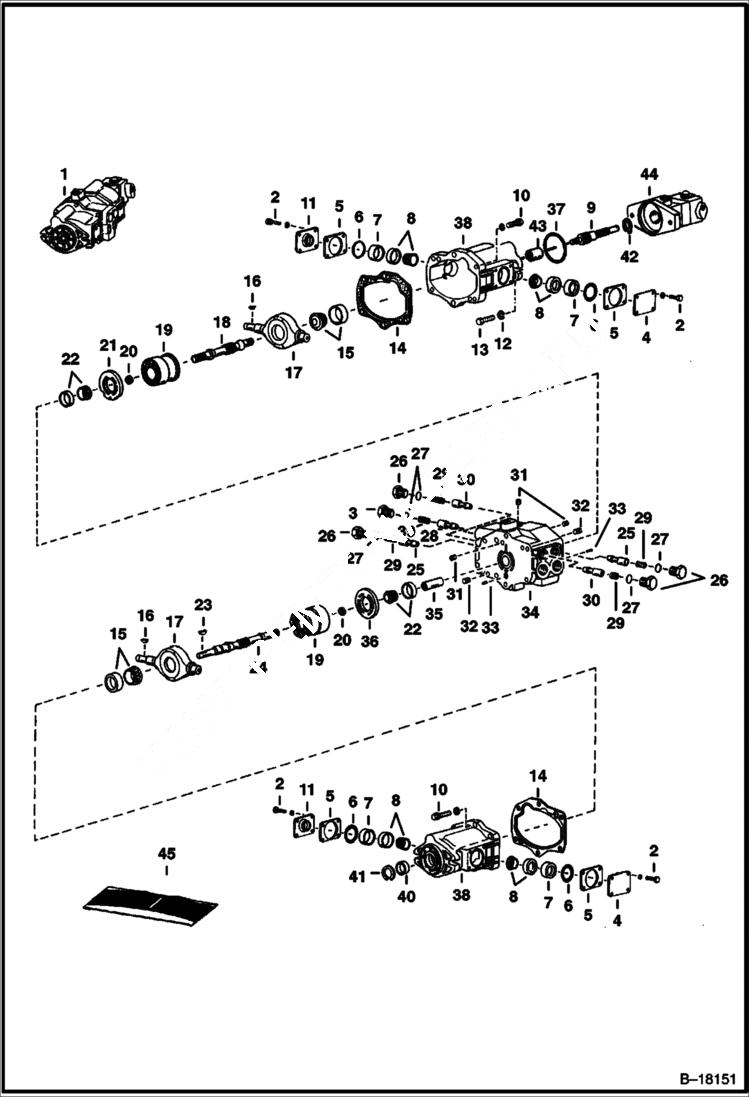

Запчасти Bobcat 600s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

1

PUMP See BTI154 NLA

1

PUMP NLA - New - Vickers 451808 - Order 6648981 - Was 6630101 - A

1

PUMP NLA - New - Vickers 567685 - Was 6648981 - A

1

PUMP, HYD NLA - Vickers 451808 - Was 6630534REM - A

2

6513631

BOLT

3

6598902

PLUG

3

6630784

PLUG

4

6512939

COVER

5

6512940

SHIM KIT

6

O-RING NSS

7

6512938

SPACER

8

232539

BEARING

9

6512934

SHAFT

10

93G624

SCREW

11

6513094

COVER & SEAL

12

616791

WASHER

13

17C820

BOLT

14

6512941

GASKET

15

6513091

BEARING

16

5J806

KEY

17

6512929

YOKE

18

6512932

SHAFT

19

ROTATING GROUP NLA - Was 6512930 - A

20

6512948

KIT

20

6674240

SPACER (.137 in.)

20

6674241

SPACER (.139 in.)

20

6674242

SPACER (.142 in.)

20

6674243

SPACER (.145 in.)

20

6674244

SPACER .148'' - Was 6674344 - B

20

6674245

SPACER .151'' - Was 6674345 - B,D

20

6674246

SPACER (.154 in.)

20

6674247

SPACER (.157 in.)

20

6674248

SPACER (.160 in.)

20

6674249

SPACER (.163 in.)

20

6674250

SPACER (.166 in.)

20

6674251

SPACER (.169 in.)

21

6598478

WEAR PLATE

22

6513093

BEARING

23

6519654

KEY

24

6512942

SHAFT, DRIVE HYD

25

RELIEF VALVE NLA - Relief Valve - High PSI - Was 6512947 - A

26

6513434

PLUG

27

79K12

O RING 10

28

POPPET NLA - Charge PSI - Was 6512945 - A

28

POPPET NLA - Was 6630786 - A

29

6513433

SPRING

30

6513432

POPPET replenishing

31

16F4

PLUG

32

6513089

PIN

33

6513092

PIN

34

BODY NLA - valve - Was 6512931 - A

35

6512933

COUPLER

36

WEAR PLATE NLA - Was 6598477 - A

37

6512949

O-RING

38

HOUSING NLA - Was 6598433 - A

39

6512946

SPRING

39

SPRING NLA - Was 6630785 - A

40

6513090

SEAL, SHAFT

41

507695

SNAP RING

42

711054

SNAP RING

43

6512935

COUPLER

44

VANE PUMP See Illustration VANE PUMP/ C2225

45

6512943

KIT, SEAL Ref. 6, 14, 27, 37 & 40
