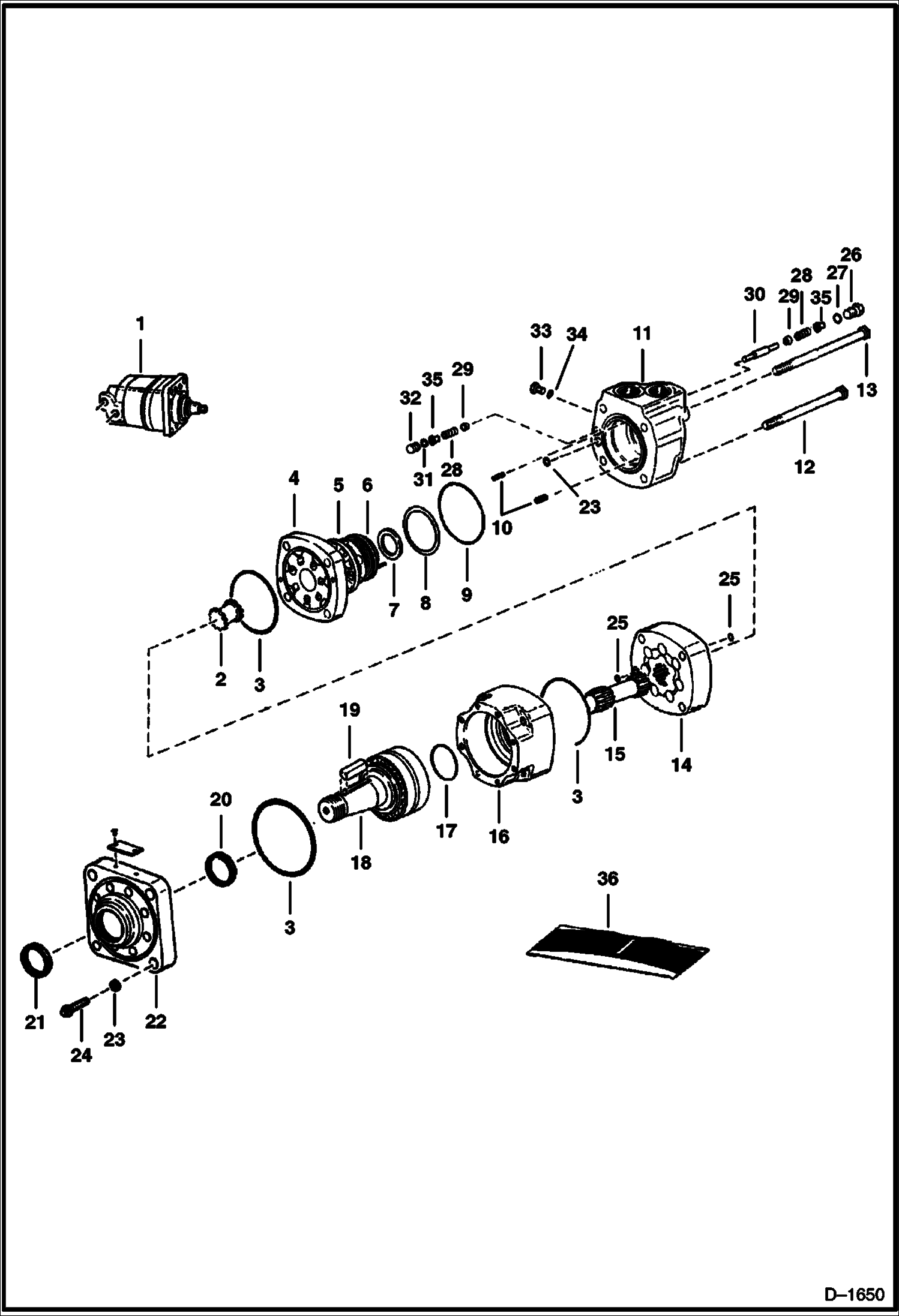

Запчасти Bobcat 600s HYDROSTATIC MOTOR (Motor Model 109-1052-006 & Above) (Tapered Shaft) HYDROSTATIC SYSTEM

1

6599718

MOTOR, DRIVE HYD New

1

6630245REM

MOTOR, REMAN HYD remanufactured - Was 6630245 - A

2

6513506

DRIVE

3

SEAL NSS

4

6513505

PLATE valve

5

6513507

VALVE

6

6630042

PLATE balancing

7

SEAL NSS - inner

8

SEAL NSS - outer

9

SEAL NSS

10

6190121

SPRING

11

6599605

HOUSING valve

12

18C788

BOLT

13

18C792

BOLT

14

6513504

GEROLER

15

6630373

SHAFT

16

6513501

HOUSING bearing

17

SEAL NSS

18

6630088

DRIVE SHAFT drive

19

6630089

KEY

20

SEAL NSS - shaft

21

SEAL NSS - dust

22

6630087

COVER front

23

O-RING NSS

24

94G516

BOLT 5

25

O-RING NSS

26

47K5

PLUG W/Ref. 27

27

79K6

O RING 10

28

6513533

SPRING

29

6513532

POPPET

30

6513510

PISTON

31

58K012

O-RING 10

32

PLUG NLA - Was 6513534 - A

33

47K2

PLUG W/Ref. 34

34

79K3

O RING 10

35

6561218

SHUTTLE

36

7010366

KIT, SEAL Ref. 3, 7-9, 17, 20, 21 & 25 - Was 6632040 - B
