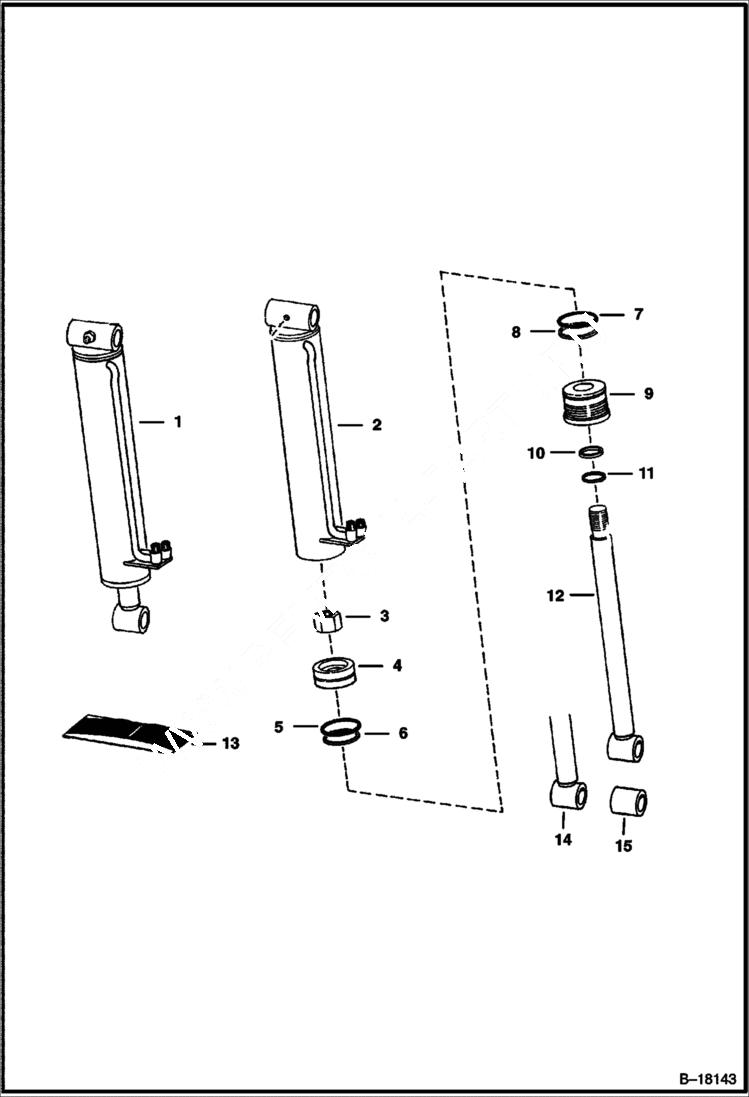

Запчасти Bobcat 600s TILT CYLINDER (W/Welded On Tube) HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt - Order 6593398

2

6592040

CASE

3

6810539

NUT Was 86D000018B - A

4

6558778

PISTON

5

6513466

PISTON RG

6

25K30226

O RING 10

7

58K234

O RING 10 Was 54K40300 - B

8

73K234

BACK-UP RING back-up - Was 80K234 - A

9

6558774

HEAD

10

6538141

SEAL rod

11

6690707

WIPER, ROD CYL Was 6665086 - A

12

ROD NLA - cylinder - W/O Bushing - Order Ref. 15 - Was 6559586 - A

13

6661308

SEAL KIT Ref. 5-8, 10 & 11 - Was 6529691 - A

14

6589783

ROD W/Bushing

15

6589665

BUSHING Use W/Ref. 15
