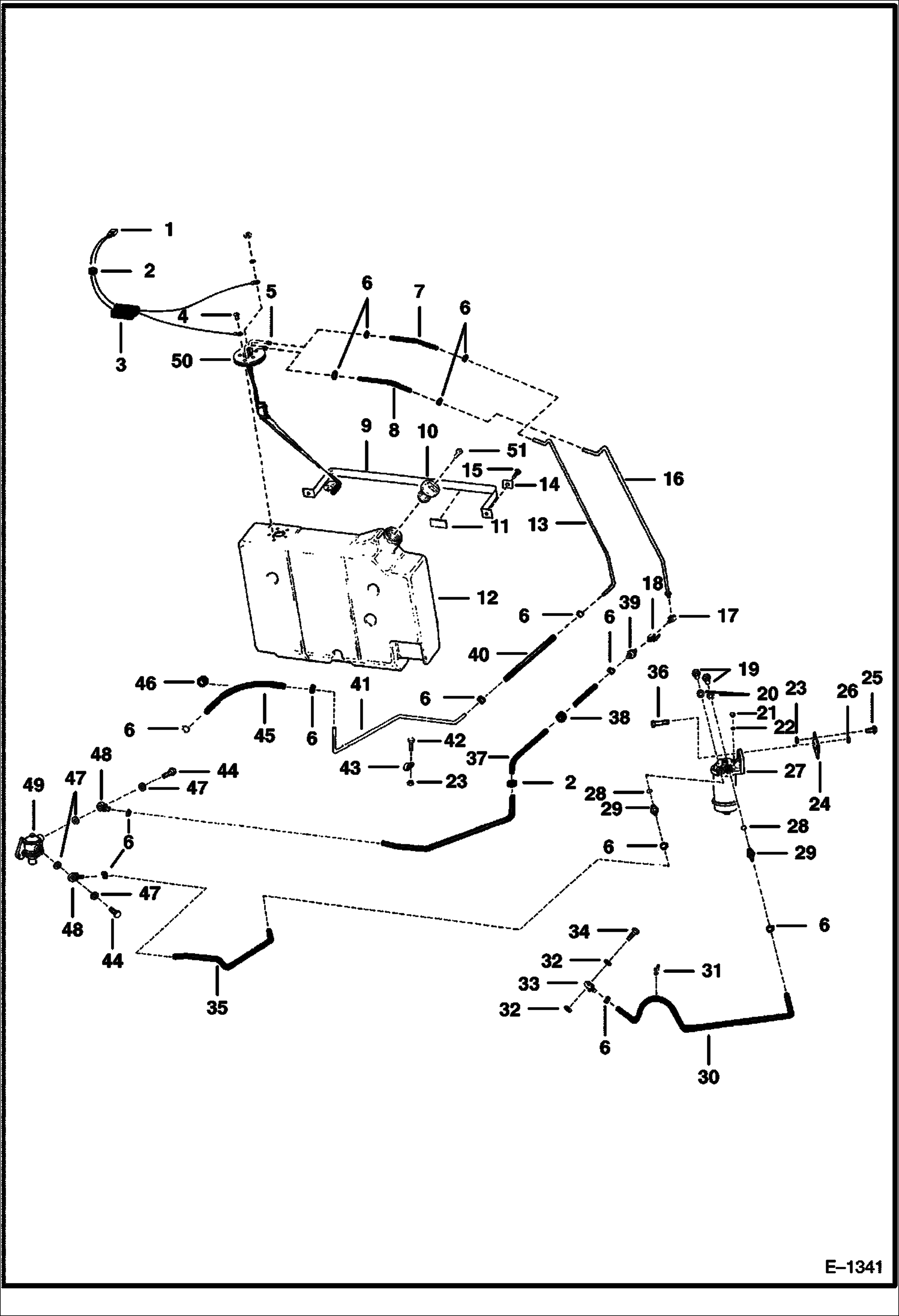

Запчасти Bobcat 600s FUEL SYSTEM (S/N 11766 & Below) MAIN FRAME

1

6560117

WIRE

2

742876

GROMMET

3

6562606

SEAL

4

87G1010

SCREW Was 85G001010B - B

5

6563210

SENDER Fuel - includes gasket

6

42HS04

CLAMP, HOSE Was 6515575 - A

7

6559717

HOSE

8

6562546

HOSE

9

6562559

BAND

10

6661114

CAP. DIESEL Green - Was 6632468 - A

10

CAP NLA - locking - W/Ref. 51 - Code GC020 - Was 6654373 - A

10

6661696

CAP, FUEL LOCKING locking - W/Ref. 51 - Code PK510

11

6591273

STRIP rubber - Bulk - Was 6563233 - A

12

TANK See BTI216 NLA

13

6562548

TUBE

14

6559447

WASHER square

15

84G3716

SCREW 5

16

6562547

TUBE

17

62F4

ELBOW

18

6562553

VALVE shut-off

19

6515682

PLUG

20

6515466

WASHER

21

6515676

PLUG

22

6515468

WASHER

23

61D5

NUT

24

6562402

BRACKET

25

10C512

BOLT Was 6553808 - A

26

61D6

NUT 5

27

FILTER See Illustration FUEL FILTER/ B5653

28

25K20014

O RING 10

29

6560355

FITTING

30

6562425

HOSE

31

6513471

CLAMP

32

2FM12155

WASHER

33

6511033

CONNECTOR banjo

34

6666396

SCREW hollow - Was 6514745 - A

35

6558246

HOSE

36

17C616

BOLT 5

37

6558639

HOSE

38

6515603

GROMMET

39

6505813

CONNECTOR

40

6563131

HOSE

41

6563132

TUBE

42

17C512

BOLT 5

43

30H15

CLIP

44

6555921

BOLT hollow

45

HOSE NLA - Was 6560657 - A

46

1303932

GROMMET Was 1318291 - A

47

6513763

WASHER Was 2FM14180B - A

48

6511899

ADAPTER banjo

49

FUEL PUMP See Illustration FUEL SYSTEM/ C2462

50

6630972

GASKET

51

6654374

KEY Code GC020

51

6587458

KEY Code PK510
