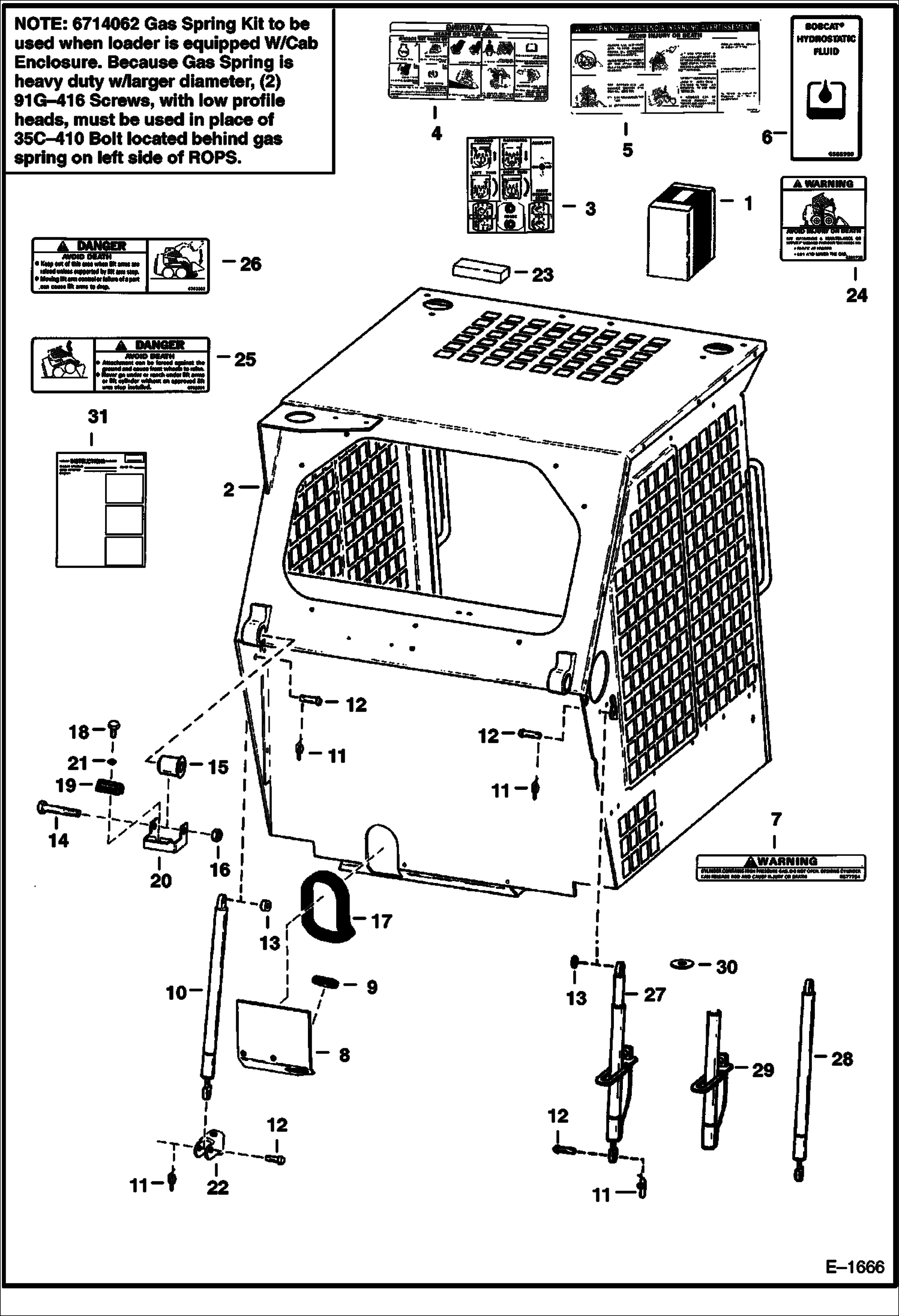

Запчасти Bobcat 600s OPERATOR CAB (S/N 19999 & Below) MAIN FRAME

1

6569248

KIT cab - Ref. 8-27, 31 - also order 6569249

2

CAB See BTI245 NSS - Order Ref. 1

3

6569021

DECAL - Was 6557312 - A

4

6579510

DECAL Was 6575854 - A

5

DECAL NLA - Order Ref. 4 & 26-28 - Was 6575855 - A

6

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

7

6577754

DECAL, WARNING 5 gas spring - Was 6568741 - A

8

6568431

SHIELD

9

6553653

GROMMET

10

6700171

GAS SPRING w/o lock - also order 6675257, clevis - Was 6700000 - A

10

6714062

KIT W/O Lock - heavy duty gas spring - See Note - Was 6670730 - A

10

91G416

SCREW See Note - Was 91G000410B - A

10

6900531

INSTRUCTIONS for 6714062 kit

11

6631418

RING, RETAINING

12

6567743

PIN

13

6567604

SPACER

14

17C1060

BOLT

15

6562602

BUSHING rubber

16

83D10

NUT 5

17

6555351

SEAL bulk - sold per foot

18

84G2516

BOLT Was 61G000416B - B

19

6568475

STOP

20

6568492

BRACKET

21

25E13

WASHER 5

22

6567603

BRACKET

23

6560690

STRIP

24

6702255

DECAL warning

25

6702301

DECAL, DANGER

26

6702302

DECAL, DANGER

27

GAS SPRING NLA - W/Lock - Order Ref. 30-32 - Was 6701176 - A

28

6664205

GAS SPRING also order 6675257, clevis

28

6675257

CLEVIS

29

6708189

TUBE stop

30

6701174

WASHER

31

6570065

INSTRUCTIONS
