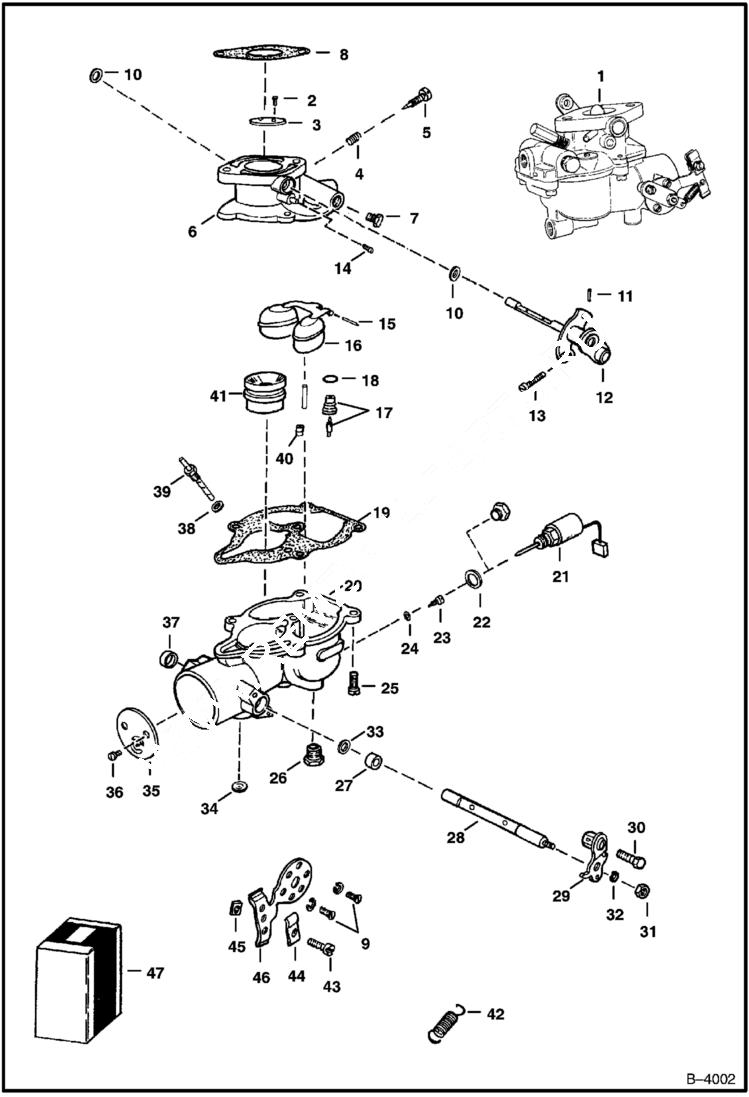

Запчасти Bobcat 600s CARBURETOR POWER UNIT

1

CARBURETOR See BTI180 NLA - Zenith-13805

1

6598372

CARBURETOR Zenith-0-13805-A (Less Solenoid)

2

SCREW NSS

3

PLATE NSS - throttle

4

866397

SPRING

5

6598375

NEEDLE idle

6

6598376

BODY throttle

7

3004023

PLUG

8

6562991

GASKET

9

BOLT NLA - Was 871564B - A

10

RETAINER NSS

11

PIN NSS

12

6598377

SHAFT throttle

13

BOLT NLA - Was 46G000810B - A

14

6631052

JET idle

15

850001

PIN float

16

850009

FLOAT

17

NEEDLE NSS - W/Seat - Was 6598378 - A

18

GASKET NSS - washer

19

GASKET NSS

20

FUEL BOWL NSS - Was 6598746 - A

21

6555915

SOLENOID, SHUTOFF FUEL carburetor

22

GASKET NSS - washer

23

6598380

JET main

24

GASKET NSS - washer

25

SCREW NLA - Was 47G001010B - A

26

PLUG NSS

27

RETAINER NSS

28

6516595

SHAFT

29

852287

LEVER

30

SCREW NSS

31

14D8

NUT

32

17E10

WASHER

33

SEAL NSS

34

PLUG NSS

35

6598381

PLATE

36

SCREW NLA - Was 85G000504B - A

37

PLUG NSS

38

GASKET NSS

39

884428

JET discharge

40

6598382

VENT well

41

6598383

VENTURI

42

853577

SPRING

43

SCREW NSS

44

CLIP NSS

45

NUT NSS

46

871563

BRACKET W/Ref. 43-45

47

6512543

KIT carburetor repair - Ref. 5, 8, 10, 17-19, 22, 24, 27, 33, 37 & 38
