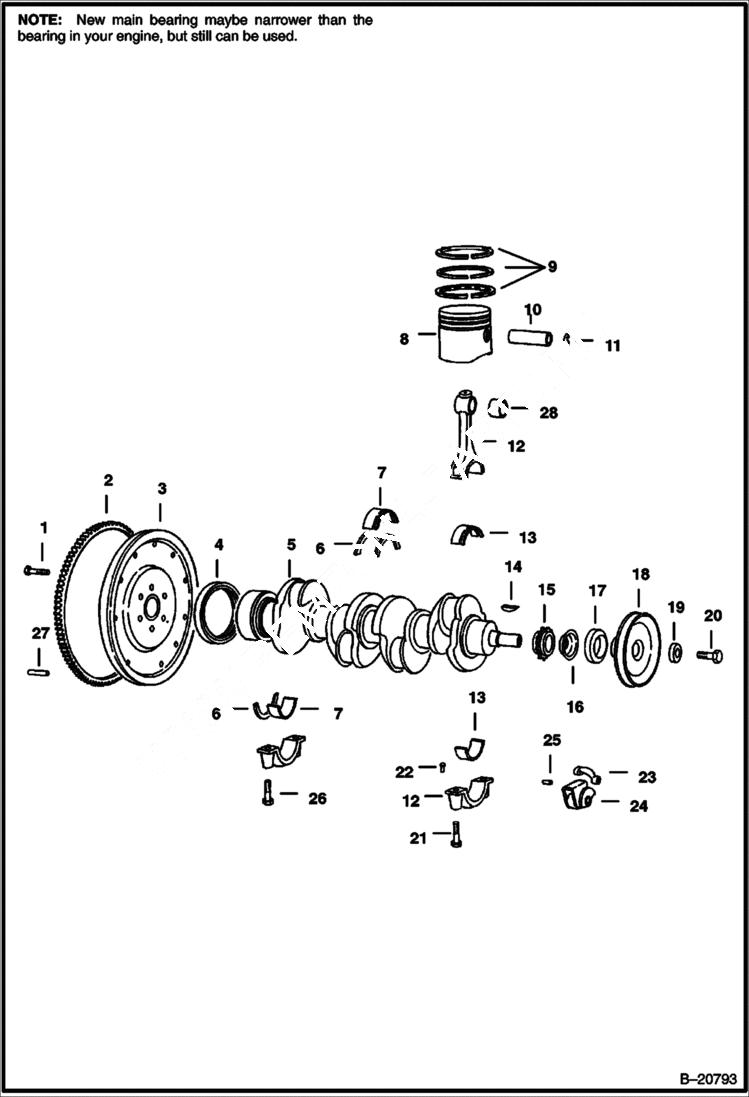

Запчасти Bobcat 600s CRANKSHAFT & PISTON POWER UNIT

1

BOLT NLA - Was 6512607 - A

2

6512453

RING GEAR

3

FLYWHEEL NLA - W/Ref. 2 - Was 6512452 - A

4

7030192

SEAL rear - Was 6512490 - A

5

CRANKSHAFT NLA - Was 6512441 - A

6

WASHER NLA - thrust - std - .091''-.093'' - two halves - A

6

6512609

WASHER thrust - .0025 (0,06mm)

6

6512610

WASHER thrust - .005 (0,13mm)

6

WASHER NLA - thrust - .0075 (0,19mm) - Was 6512611 - A

6

WASHER NLA - thrust - .010 (0,25mm) - two halves - Was 6512612 - A

7

6674881

BEARING SET main - Std. - SEE NOTE - One Complete Set - Was 6512445 - A

7

BEARING SET main (-.010 (0,25mm)) - One Complete Set - Was 6674882 - A

7

6674883

BEARING SET main (- .020 (0,51mm)) - One Complete Set - Was 6512448 - A

7

6674884

BEARING SET main (-.030 (0,76mm)) - One Complete Set - Was 6669272 - A

7

BEARING NLA - main (+.015 (0,38mm)) OD, Std. ID - one bearing - Was 6512600 - A

7

BEARING NLA - main (+.015 (0,38mm)) OD, (-.010 (0,25mm)) ID - one bearing - Was 6512597 - A

7

BEARING NLA - main (+.015 (0,38mm)) OD (-.020 (0,51mm)) ID - Was 6512598 - A

7

BEARING NLA - main (+.015 (0,38mm)) OD, (-.030 (0,76mm) ) ID

8

PISTON ASSY. NLA - W/Pins & Rings - Std. - Was 6512403 - A

8

6658848

PISTON (.020 (0,51mm)) - W/ Rings

8

6665229

PISTON ASSY. W/Pin & Rings (+.030 (0,76mm)) - Was 6512405 - A

8

6656408

PISTON W/ Rings - (.040 (1,02mm))

9

6512409

RINGS Std.

9

6658849

RINGS Complete Set - (.020 (0,51mm))

9

6512411

RINGS (+.030 (0,76mm))

9

6656407

RINGS Complete Set - (.040 (1,02mm))

10

PISTON PIN NLA - Std. - Was 6512406 - A

11

RETAINER NLA - Was 6512408 - A

12

ROD NLA - Connecting - W/Ref. 28 - Was 6667022 - A

13

6666615

BEARING rod - Std. - Complete Set - Was 6666614 - D

13

BEARING NLA - rod (-.002 (0,05mm)) - One Bearing - Was 6512677 - A

13

6666350

BEARING rod (-.010 (0,25mm)) - Complete Set - Was 6512678 - A

13

6674885

BEARING rod (-.020 (0,51mm)) - Was 6669571 - A

13

6666614

BEARING rod (-.030 (0,76mm)) - Complete Set - Was 6666615 - D

13

BEARING NLA - rod (-.040 (1,02mm)) - Was 6632632 - A

14

6512641

KEY

15

SPROCKET NLA - Was 6512442 - A

16

SLINGER NLA - oil

17

6648169

SEAL Was 6648209 - A

18

6558802

PULLEY

19

WASHER NLA - Was 622284B - A

20

18C724

BOLT

21

BOLT NLA - Rod - Was 6512604 - A

22

1JM4010

DOWEL

23

6512439

ARM

24

6512438

TENSIONER timing chain

25

6661790

PIN Was 6512440 - A

26

17C746

BOLT Main

27

6512920

DOWEL

28

6598356

BUSHING one bushing
