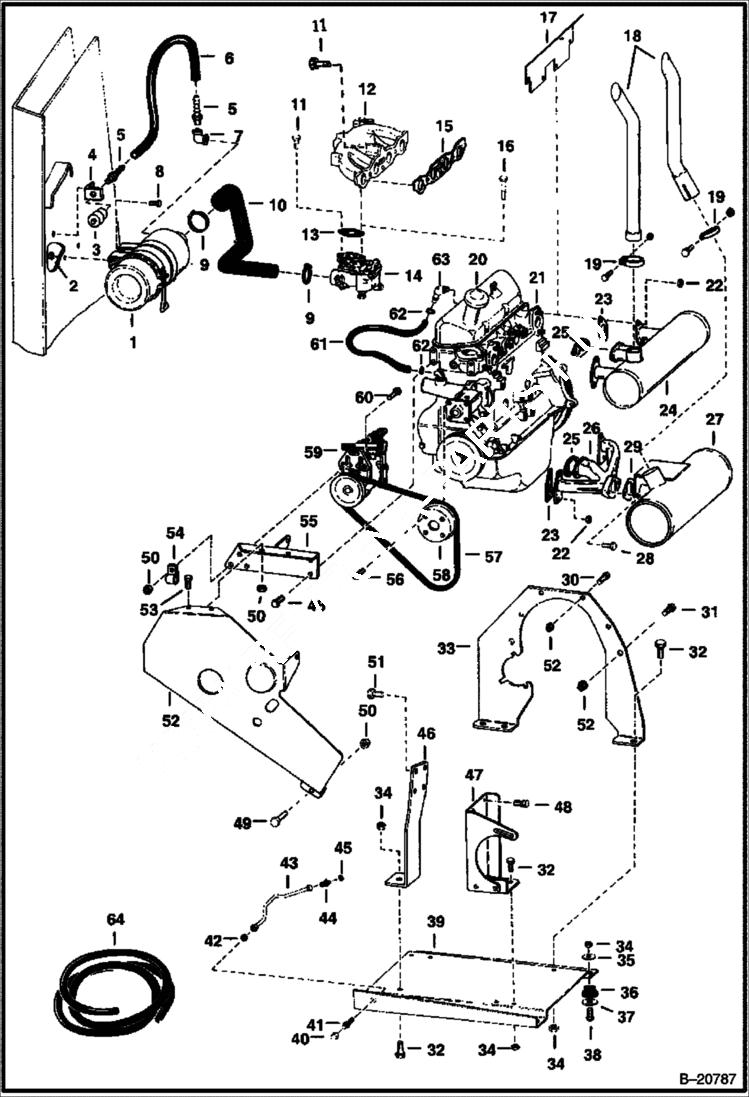

Запчасти Bobcat 600s ENGINE & ATTACHING PARTS POWER UNIT

1

AIR CLEANER See Illustration AIR CLEANER/ B17728

2

6512894

NUT flange

3

1735188

INDICATR See BTI134

4

BRACKET See BTI134 NLA - Was 6559798 - A

5

6505813

CONNECTOR See BTI134

6

HOSE See BTI134 NLA - 24'' (609,6 mm) long - Order Ref. 64 - Was 6559797 - A

7

24F1

ELBOW See BTI134

8

17C512

BOLT 5 See BTI134

9

42H32

HS CLAMP5

10

6557457

HOSE

11

17C514

BOLT

12

MANIFOLD NLA - Was 6513491 - A

13

6562991

GASKET

14

CARBURETOR See Illustration CARBURETOR/ B4002 BTI 180

15

GASKET NLA - Was 6512507 - A

16

17C564

BOLT

17

SHIELD NLA - Was 6558367

18

6557322

PIPE

18

6559319

PIPE

19

6677363

CLAMP, FULL CIRCLE Was 657904 - A

20

ENGINE See Illustration ENGINE/ B20788 See BTI146 FORD

21

6598274

STUD

22

86D5

NUT Was 85D000005B - B

23

6512509

GASKET

24

MUFFLER NLA - Order Ref. 18 & 26-29 - Was 6555913 - A

25

GASKET NLA - Was 6512508 - A

26

6559799

MANIFOLD

27

6559320

MUFFLER

28

6563005

BOLT

29

6559603

GASKET

30

84G3716

SCREW 5 Was 6554436 - A

31

17C624

BOLT 5

32

17C820

BOLT

33

6557162

MOUNT motor

34

61D8

NUT 5

35

6515817

WASHER

36

6560633

DAMPENER shock

37

6557929

WASHER

38

17C836

BOLT

39

PLATE NLA - Order 6562989 & 6553204

39

6562989

PLATE

40

36K6

CAP

41

86F6

NUT

42

45K6

CONNECTR

43

TUBE NLA - Order 6553204

43

6553204

HOSE

44

FITTING NLA - Use 1.5'' long, .75 flared end & .5 boss end - Was 6553537 - A

45

895504

10 GSKTS

46

6554701

BRACKET

47

6557156

BRACKET

48

17C612

BOLT 5

49

84G3712

BOLT 5 Was 6554437 - A

50

57D6

NUT 5

51

6555533

BOLT

52

6557159

COVER

53

84G3712

BOLT 5

54

6516695

CLIP

55

6554841

BRACKET

56

4CM810

BOLT

57

6554888

BELT

58

6512498

PULLEY See Illustration WATER PUMP/ B2361

59

GOVERNOR See Illustration HOOF GOVERNOR/ D1491 See Illustration PIERCE GOVERNOR/ D1448

60

6554745

BOLT

61

6555529

HOSE

62

42H12

CLAMP 10

63

6649955

ELBOW Was 666841B - A

64

6557720

HOSE bulk - Sold Per Foot
