Запчасти Bobcat 600s STARTER (Bosch 0-001-211-228) ELECTRICAL SYSTEM

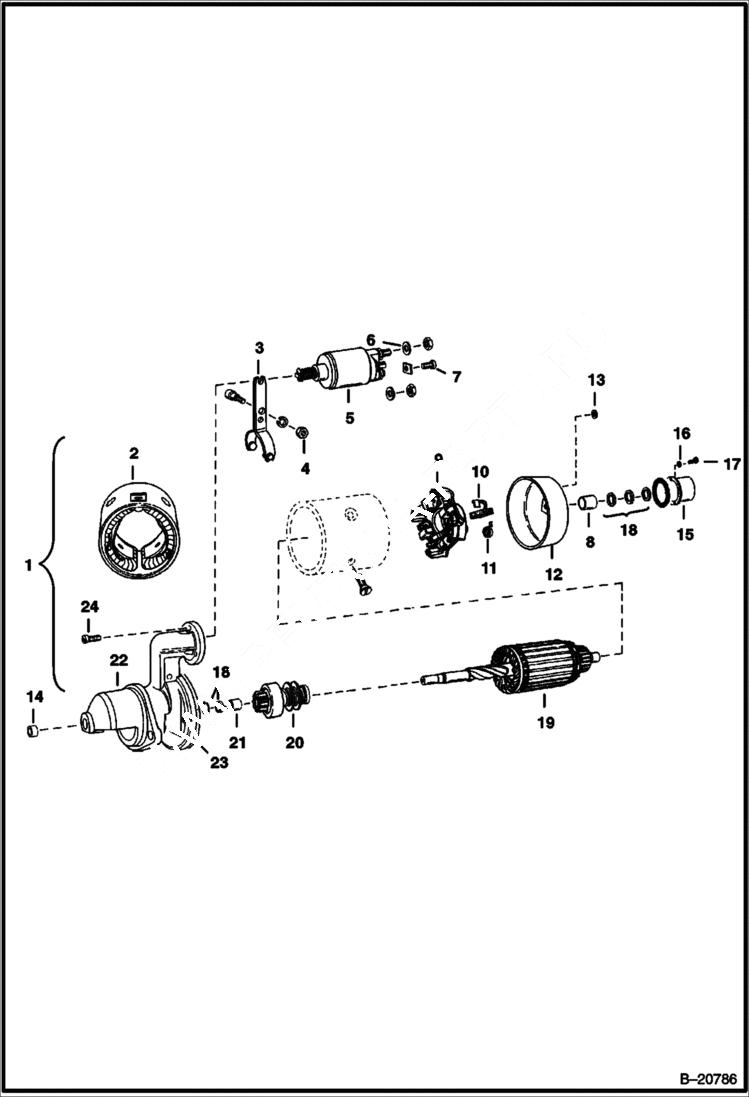

Схема запчастей Bobcat 600s - STARTER (Bosch 0-001-211-228) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

STARTER NLA - Ref. 2 - 24 - Was 6514006 - A

1

6665502REM

STARTER

2

6513289

COIL

3

6513298

LEVER

4

1DM6

NUT

5

6513296

SOLENOID

6

4E5

WASHER

7

6517902

NUT

8

BUSHING NLA - Was 4148008B - A

9

6598070

PLATE brush

10

6513301

BRUSHES See General Service Bulletin G-006

11

6514885

SPRING

12

6513299

COVER W/Ref. 8

13

6513303

WASHER

14

6513291

BUSHING

15

6513302

COVER

16

6514878

RING

17

6517905

SCREW

18

6598071

KIT armature hardware

19

ARMATURE NLA - Was 6598069 - A

20

6514877

DRIVE

21

6513294

BUSHING

22

6513290

HOUSING

23

6514891

SEAL

24

6664478

SCREW

Выбрано товаров: 25
