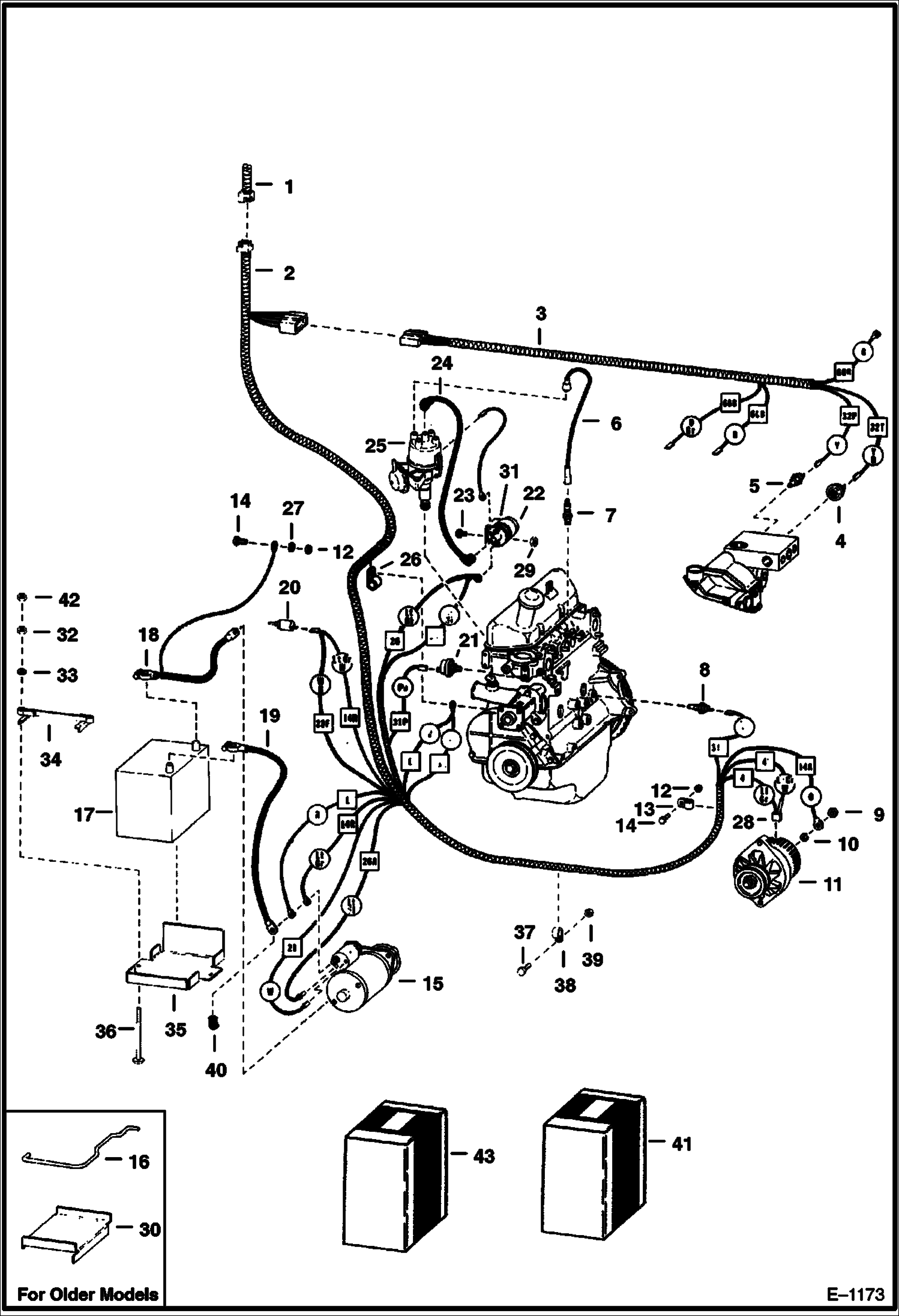

Запчасти Bobcat 600s ENGINE ELECTRICAL SYSTEM ELECTRICAL SYSTEM

1

HARNESS See Illustration CAB ELECTRICAL SYSTEM/ B20791 See Illustration CAB ELECTRICAL SYSTEM/ E1165 CAB

2

6558864

HARNESS engine

2

6561654

HARNESS

3

6557447

HARNESS

4

6557449

SWITCH hydrostatic pressure

5

6598384

SWITCH hydrostatic temperature

6

WIRES NSS - spark plug - Order Ref. 41

7

6512536

SPARK PLUG

8

6630821

SWITCH See BTI146 engine temp.

9

12D12

NUT

9

1DM6

NUT Was 4DM6 - A

10

12E12

WASHER

11

ALTERNATOR See Illustration ALTERNATOR/ B20783 See Illustration ALTERNATOR/ B20784 See Illustration ALTERNATOR/ B20782

12

61D5

NUT

13

30H22

CLIP

14

17C512

BOLT 5

15

STARTER See Illustration STARTER/ B20785 See Illustration STARTER/ B20786 See Illustration STARTER/ C2145

16

6553338

BRACKET

17

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

17

6630154

CAP gang - Danger

17

6630155

CAP gang - Poison

17

CAP NLA - tilt-tite - Was 6514898 - A

18

6557451

CABLE ground

19

6557450

CABLE positive

20

6555915

SOLENOID, SHUTOFF FUEL carburetor

21

6631010

SWITCH, PRESS OIL ENG engine pressure

21

19F1

BUSHING

22

881097

COIL ASY

23

10C512

BOLT Was 6553808 - A

24

COIL WIRE NSS - Order Ref. 41

25

DISTRIBUTOR See Illustration IGNITION SYSTEM/ B20794

26

30H46

CLIP

27

6E5

WASHER

28

3675725

DIODE

29

6512894

NUT

30

BATTERY NLA - Was 6557794 - A

31

BRACKET NLA - Was 6512914 - A

32

59D5

NUT 5 Was 17D000002B - A

33

25E15

WASHER

34

7024123

CLAMP Was 6563462 - A

35

6558826

MOUNT

36

6569623

BOLT

37

17C614

BOLT

38

30H24

CLIP

39

61D6

NUT 5

40

6560172

COVER

41

6513958

WIRE SET Ref. 6 & 24

42

46D5

NUT

43

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 See BTI182 NLA - connector - Was 6563326 - A
