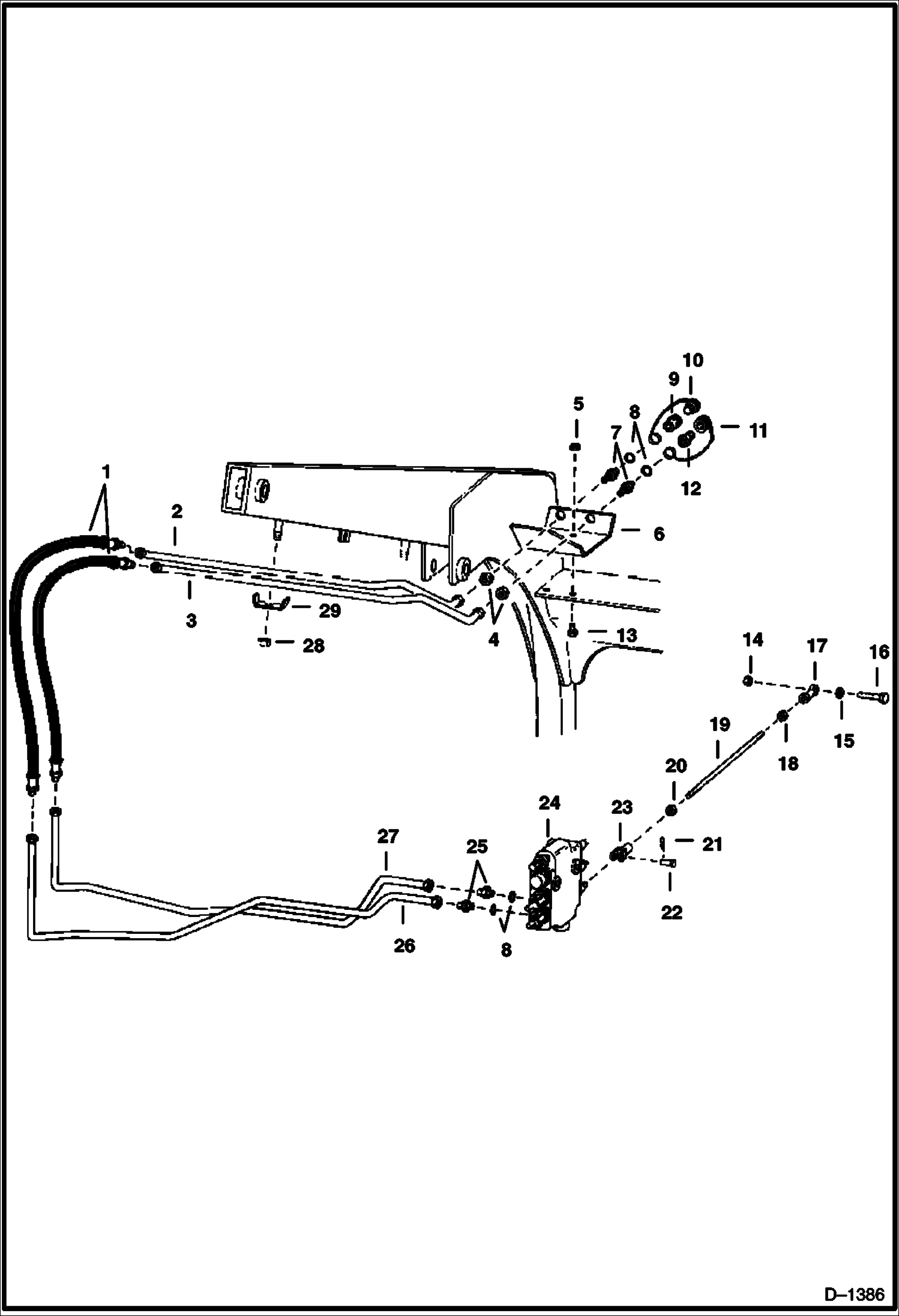

Запчасти Bobcat 600s AUXILIARY HYDRAULICS (S/N 12999 & Below) HYDRAULIC SYSTEM

1

6541094

HOSE

2

6557428

TUBE

3

6557427

TUBE

4

86F7

LOCK NUT

5

61D6

NUT 5

6

6557430

BRACKET

7

6557429

CONNECTOR

8

79K8

O RING 10

9

6512159

QUICK COUPLER See BTI302 Female

9

58K211

O RING 10

10

6515167

PLUG

11

6515168

CAP

12

6513634

QUICK COUPLER See BTI302 Male

13

17C512

BOLT 5

14

81D6

NUT

15

763403

WASHER

16

17C620

BOLT

17

6512955

SWIVEL L.H. threads

18

13D6

NUT

19

6557090

ROD

20

8D6

NUT 5

21

6513495

COTTER PIN

22

6559014

CLEVIS PIN

23

6560526

CLEVIS

24

6557603

VALVE See Illustration HYDRAULIC VALVE/ B20667 HYDRAULIC

25

731793

CONNECTR W/Ref. 8

26

TUBE NLA - Was 6561106 - A

27

6561105

TUBE

28

6502203

CLAMP

29

59D6

NUT
