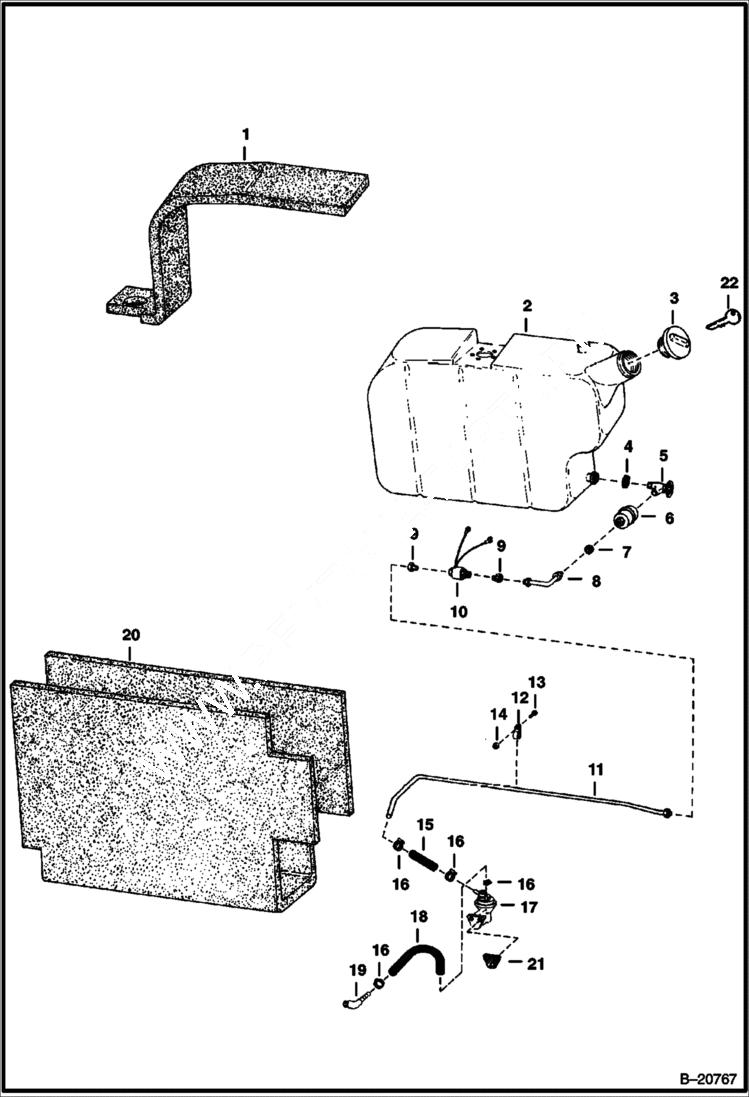

Запчасти Bobcat 600s FUEL SYSTEM MAIN FRAME

1

6555909

INSULATION

2

TANK NLA - Order 6560211 - Was 6557743 - A

3

6632468

CAP Was 6661114 - A

3

CAP NLA - locking - W/Ref. 22 - Code GC020 - Was 6635877 - A

3

6662770

CAP locking - W/Ref. 22 - Code PK510

4

42HS8

CLAMP Was 6514005 - A

5

6512138

VALVE

6

6512106

ELEMENT

7

GROMMET Was 565073 - A

8

6559152

TUBE

9

CONNECTOR NLA - Was 59F000004B - A

10

7024822

SOLENOID, FUEL Was 6559117

11

6557246

TUBE

11

TUBE NLA - Was 6559151 - A

12

30H19

CLIP

13

17C512

BOLT 5

14

85D5

NUT 5

15

6559118

HOSE

16

42HS04

CLAMP, HOSE Was 6515575 - A

17

6512518

PUMP, FUEL Bent Tube

18

6557832

HOSE

19

6515156

CONNECTOR

20

6555908

INSULATION

21

6512519

GASKET spacer

21

6660165

GASKET

22

6654374

KEY Code GC020

22

6587458

KEY Code PK510
