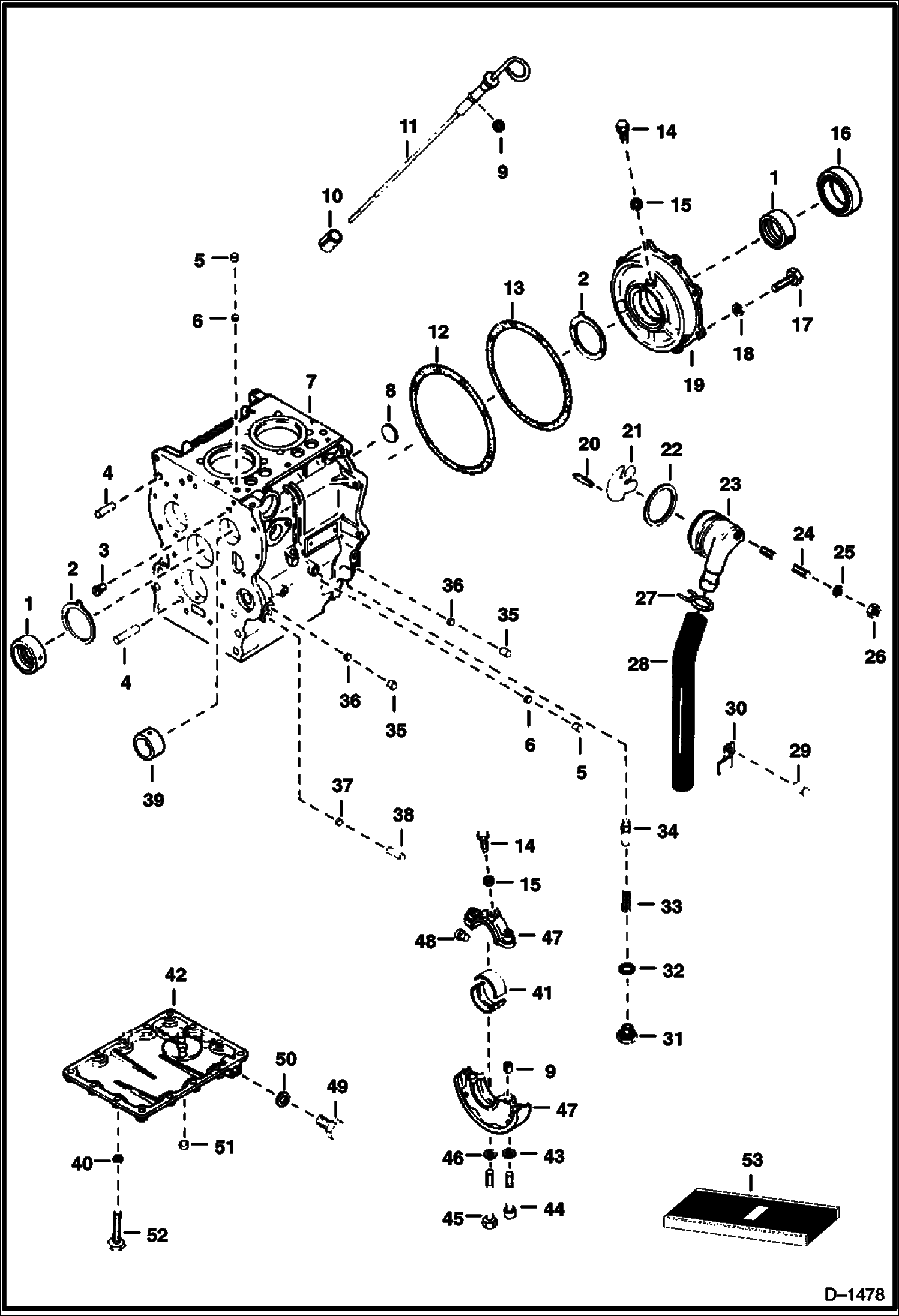

Запчасти Bobcat 600s CYLINDER BLOCK (Deutz 511) POWER UNIT

1

6513751

BEARING 64 mm (Std.) - One Bearing

1

6513758

BEARING 63.5 mm - One Bearing

1

6513759

BEARING 63 mm - One Bearing

1

6513760

BEARING 62.5 mm - One Bearing

2

6513748

WASHER thrust - 0.1181'' (3mm) Std.

2

6513755

WASHER thrust - 0.1279'' (3,2mm)

2

6513756

WASHER thrust - 0.1378'' (3,5mm)

2

6513757

WASHER thrust - 0.1476'' (3,7mm)

3

6513754

PLUG

4

PIN NLA - Was 20JM00624B - A

5

6511929

PLUG

6

6511930

WASHER

7

CRANKCASE Was 6513900 - A

8

6515967

PLUG

9

6515986

O-RING

10

6515971

DOWEL

10

6598759

BUSHING

11

6516007

DIPSTICK

11

6632216

DIPSTICK

12

6513845

GASKET

13

6513846

GASKET

14

6513877

NOZZLE oil

15

8EM80

WASHER

16

SEAL NLA - Was 6513848 - A

17

4CM618

BOLT

18

6512626

WASHER

19

6513847

HOUSING

20

1JM5016

PIN

21

6513746

PLATE

22

6512622

O-RING

23

6513944

BREATHER

24

6513745

STUD

25

1FM60100

WASHER

26

16DM6

NUT Was 6513908 - A

27

4280274

HOSECLAMP

28

6516713

HOSE

29

PLUG NLA - Was 10JM06010B - A

30

6513744

CLAMP

31

6515961

PLUG

32

6513749

WASHER

33

6515960

SPRING

34

6515959

VALVE oil pressure

35

6511932

PLUG

36

6511933

WASHER

37

6513753

WASHER

38

6513752

PLUG

39

6516015

BUSHING camshaft

40

6515972

BEARING 2.3622'' (60mm) Std. - One Bearing

40

6515973

BEARING 2.3425'' (59,5mm) - One Bearing

40

6515974

BEARING 2.3228'' (59mm) - One Bearing

40

6515975

BEARING 2.3031'' (58,5mm) - One Bearing

41

9EM60

WASHER

42

6513867

OIL PAN

43

6515969

WASHER

44

4GM1080

BOLT

45

1CM1290

SCREW

46

1EM120

WASHER

47

6513750

SUPPORT

48

DOWEL NLA - Was 6515970 - A

49

6513868

PLUG

50

2FM12155

WASHER

51

6512576

PLUG

52

4CM622

BOLT

53

6598348

GASKET KIT Complete Overhaul
