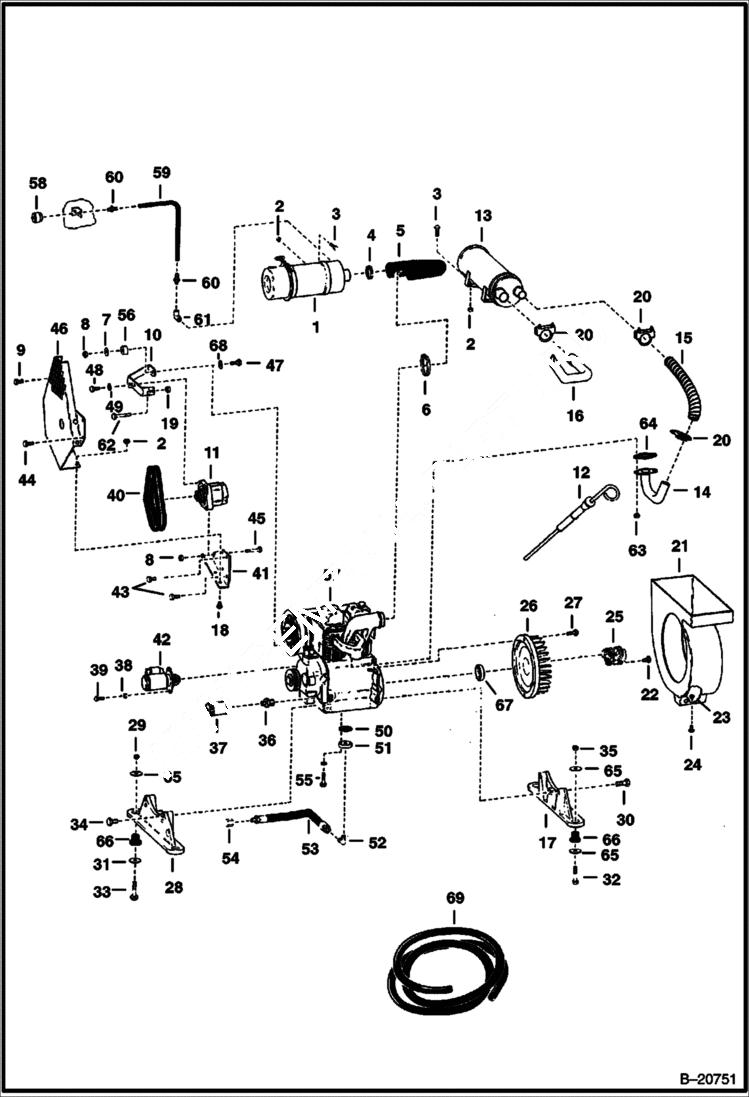

Запчасти Bobcat 600s ENGINE & ATTACHING PARTS (Deutz 511 - S/N 13999 & Below) POWER UNIT
№
Артикул
Название
Примечание
Количество
1
AIR CLEANER See Illustration AIR CLEANER/ B20771 See Illustration AIR CLEANER/ B17728A
2
6512894
NUT
3
17C512
BOLT 5
5
HOSE NLA - Was 6563169 - A
6
44H48
CLAMP Was 6515576 - A
7
619021
WASHER, 5
8
85D6
NUT, 5
9
1CM830
BOLT
10
6563145
BRACKET
11
ALTERNATOR See Illustration ALTERNATOR/ B20718 See Illustration ALTERNATOR/ B20743
12
6516007
DIPSTICK See Illustration CYLINDER BLOCK/ D1478
13
6559753
MUFFLER spark arrestor
14
PIPE NLA - Was 6559749 - A
15
PIPE NLA - Was 6559752 - A
16
6559754
PIPE
17
6559747
MOUNT engine
18
6555533
BOLT
19
61D5
NUT
21
6558319
HOUSING
22
94G512
BOLTS 5
23
6512897
NUT
25
U-JOINT See Illustration UNIVERSAL JOINT/ B20755
26
FAN NLA - Was 6559755 - A
27
1CM825
BOLT Was 4CM825 - A
28
6559746
MOUNT motor
29
57D8
NUT 10
30
4CM1255
SCREW
31
6557929
WASHER
32
17C1052
BOLT
33
17C852
BOLT 5
34
4CM1460
BOLT
35
85D8
NUT, 5
36
6513892
ADAPTER
37
6511793
ELEMENT
38
6EM120
WASHER
39
4CM1228
BOLT
40
6559848
BELT
41
6559844
BRACKET
42
6513391
STARTER See Illustration STARTER/ C2378
43
1CM670
BOLT
44
1CM820
BOLT Was 4CM820 - A
46
6565167
SHIELD Was 6562601 - A
47
17C628
BOLT
48
35C516
BOLT 10 Was 6554744 - A
48
29CM825
BOLT
50
6550746
GASKET
51
6550745
FLANGE
52
83F6
ELBOW
53
6553244
HOSE
54
36K6
CAP
55
1CM620
BOLT Was 4CM620 - A
56
6560846
BUSHING
57
ENGINE See Illustration ENGINE & GASKET KITS/ B20756 NLA
58
6515007
GAUGE
59
HOSE NLA - 24'' (609,6mm) Long - Order 2 ft. of Ref. 69 - Was 6559797 - A
60
6505813
CONNECTOR
61
24F1
ELBOW
62
1CM860
BOLT
63
1DM10
NUT
64
6561143
GASKET
65
WASHER NLA - Was 6559831 - A
66
6513606
MOUNT Was 6514897 - A
67
6558410
PLUG
68
25E17
WASHER 5
69
6557720
HOSE bulk - Sold Per Foot
