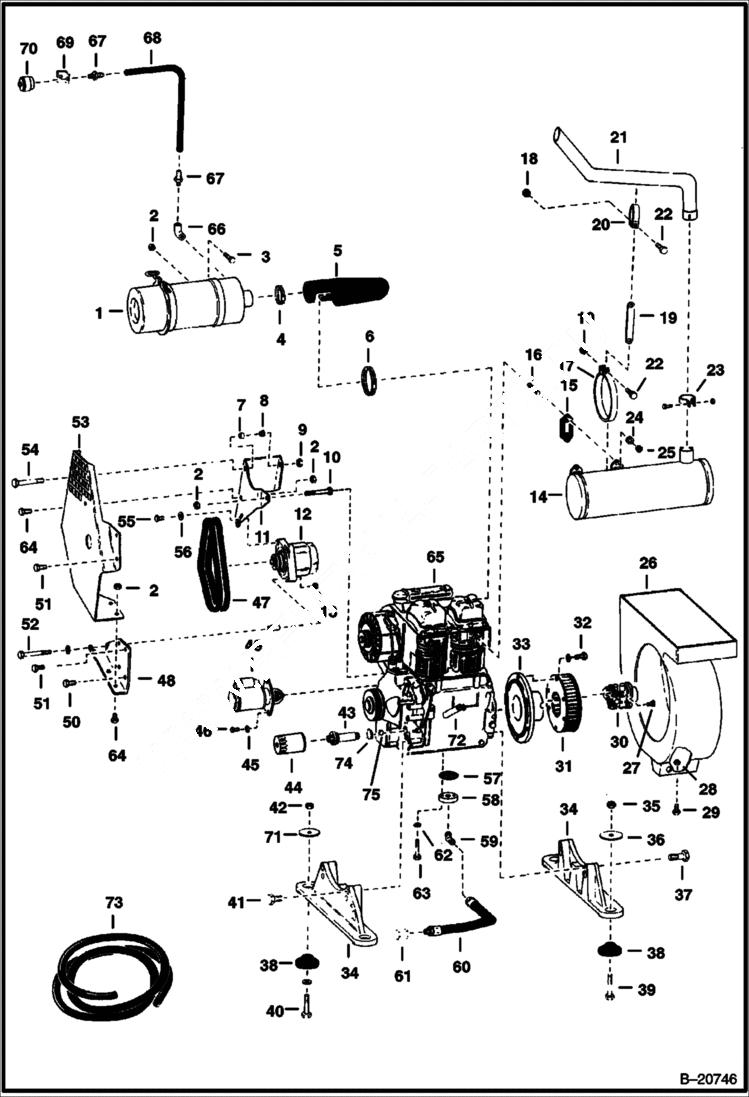

Запчасти Bobcat 600s ENGINE & ATTACHING PARTS (Deutz 411) POWER UNIT

1

AIR CLEANER See Illustration AIR CLEANER/ B17728

2

6512894

NUT

3

17C512

BOLT 5

4

42H32

HS CLAMP5 Was 42H000024B - A

5

6558152

HOSE

6

44H48

CLAMP Was 6515576 - A

7

SHIM NLA - Was 6558574 - A

8

ADAPTER NLA - Was 6558536 - A

9

61D5

NUT

10

4CM850

BOLT

11

BRACKET NLA - Was 6558560 - A

12

ALTERNATOR See Illustration ALTERNATOR/ B20718 See Illustration ALTERNATOR/ B20743

13

81D6

NUT

14

MUFFLER NLA - Was 6558151 - A

15

4110763

GASKET

16

6515928

BOLT

17

1632632

CLAMP

18

85D5

NUT 5

19

STRAP NLA - Was 6559186 - A

20

6557321

CLAMP

21

6558153

PIPE NLA - exhaust - Was 6558153 - A

22

17C524

BOLT

23

6677363

CLAMP, FULL CIRCLE Was 657904B - A

24

1EM80

WASHER

25

3725269

NUT

26

6558319

HOUSING

27

94G512

BOLTS 5

28

6512897

NUT

29

84G3712

BOLT 5

30

U-JOINT See Illustration UNIVERSAL JOINT/ B20747

31

FAN NLA - Was 6558638 - A

32

1CM825

BOLT Was 4CM825 - A

33

ADAPTER NLA - Was 6558340 - A

34

6558159

MOUNT motor

35

57D8

NUT 10

36

WASHER NLA - Was 6558205 - A

37

4CM1255

SCREW

38

6513606

MOUNT Was 6514897 - A

39

17C1048

BOLT

40

17C848

BOLT

41

4CM1460

BOLT

42

85D8

NUT, 5

43

ADAPTER NLA - filter - Was 6511792 - A

44

6511793

ELEMENT

45

6EM120

WASHER

46

4CM1228

BOLT

47

BELT NLA - set of 2 - Was 6558135 - A

48

BRACKET NLA - Was 6559851 - A

49

STARTER See Illustration STARTER/ C2378 See Illustration STARTER/ D2119

50

1CM670

BOLT

51

1CM820

BOLT Was 4CM820 - A

52

17C644

BOLT

53

6558933

COVER

54

17C580

BOLT

55

35C516

BOLT 10 Was 6554744 - A

55

29CM825

BOLT

56

25E16

WSHR

57

6550746

GASKET

58

6550745

FLANGE

59

83F6

ELBOW

60

6553244

HOSE

61

36K6

CAP

62

6EM60

WASHER, SPRING

63

1CM620

BOLT Was 4CM620 - A

64

6555533

BOLT

65

ENGINE See Illustration ENGINE & GASKET KITS/ B20719

66

24F1

ELBOW

67

6505813

CONNECTOR

68

HOSE NLA - 24'' long - Order 2 ft. of Ref. 73 - Was 6559797 - A

69

BRACKET NLA - Was 6559798 - A

70

1735188

INDICATR

71

WASHER NLA - Was 6559831 - A

72

6516007

DIPSTICK oil

72

6515986

O-RING dipstick

73

6557720

HOSE bulk - Sold Per Foot

74

6516076

O-RING Large

75

6516709

O-RING Small
