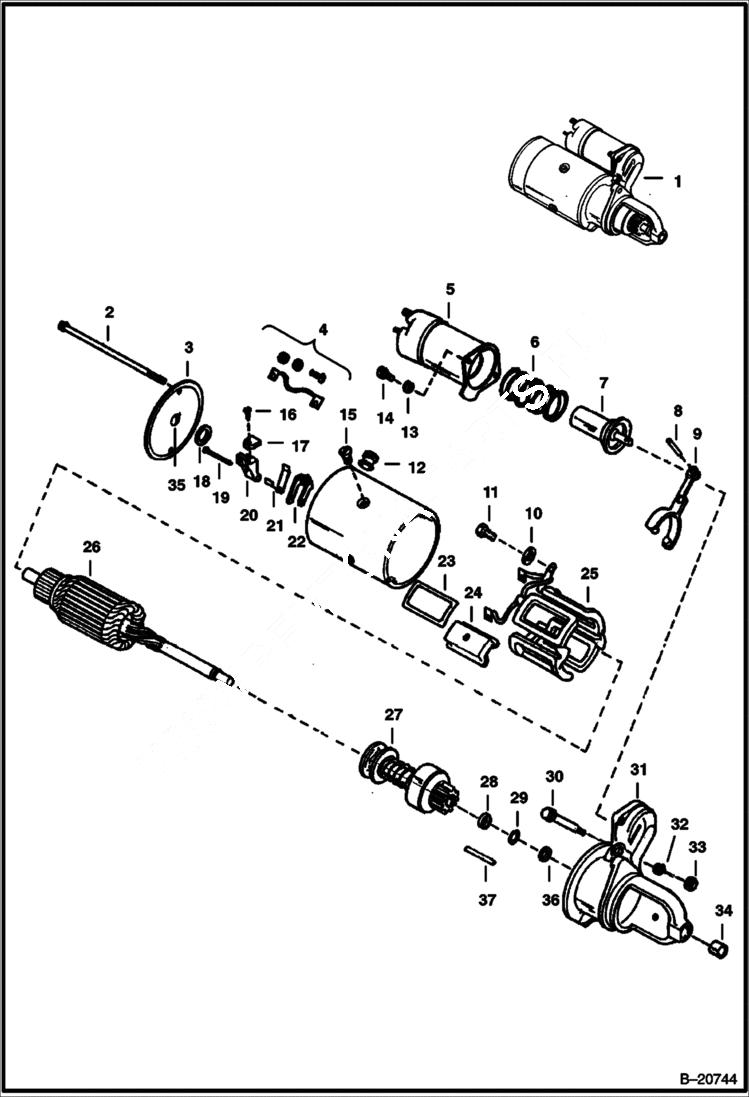

Запчасти Bobcat 600s STARTER (S/N 5005 14001 & Above) ELECTRICAL SYSTEM

1

STARTER Delco 1109253 - Order (1) 6630180, (1) 4DM00005B & (1) 4DM000010B

2

BOLT Was 895675B - A

3

6511625

FRAME commutator end - W/Bushing

4

6511627

HOLDER brush holder support

5

884581

SWITCH

6

888968

SPRING plunger

7

PLUNGER NLA - Was 887782B - A

8

PIN NLA - shift lever - Was 999472B - A

9

896126

LEVER shift

10

15E10

WASHER

11

SCREW NLA

12

GROMMET NLA

13

4E4

WASHER

14

SCREW NLA - Was 43G000408B - A

15

SCREW NLA

16

SCREW NLA - Was 65G000810B - A

17

BRUSHES NLA - Was 945239B - A

18

WASHER NLA

19

PIN NLA

20

BRUSH HOLDER NSS - insulated

21

SPRING NSS - brush

22

BRUSH HOLDER NSS - grounded

23

INSULATOR NLA

24

POLE SHOE NLA

25

6511628

FIELD COIL assy.

26

6511629

ARMATURE

27

6512872

DRIVE

28

STOP NLA - Was 878608B - A

29

942142

SNAP RING ring

30

884576

BOLT.

31

6513941

HOUSING drive - W/Ref. 34

32

WASHER NLA

33

NUT NLA

34

860669

BUSHING drive end

35

874935

BUSHING Commutator end

36

COLLAR NLA - Was 898127B - A

37

PIN NLA
