Запчасти Bobcat 600s ALTERNATOR (Delco 1105070 or 1105422 - Open) ELECTRICAL SYSTEM

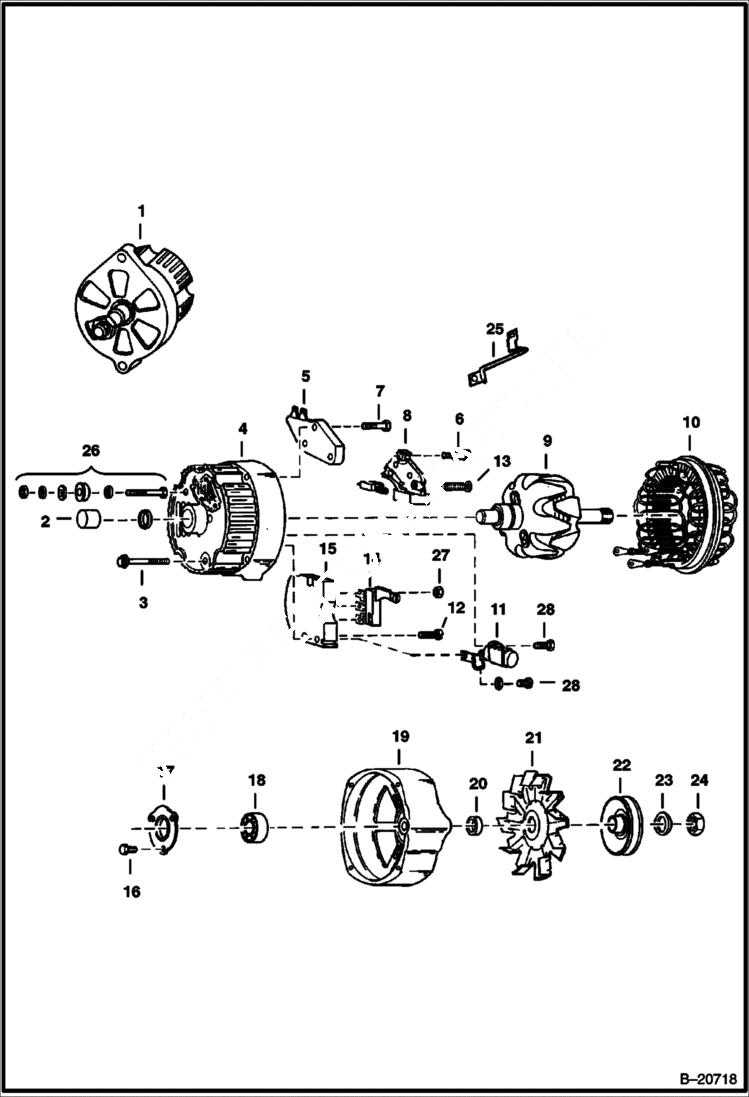

Схема запчастей Bobcat 600s - ALTERNATOR (Delco 1105070 or 1105422 - Open) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

ALTERNATOR NLA - Less Pulley & Fan - Order 908221REM - Was 908221 - A

2

BEARING NLA - Was 905351B - A

3

BOLT NLA - Was 897467B - A

4

FRAME NLA - W/Ref. 2 - Was 905956B - A

5

REGULATOR NLA - voltage - Was 994381B - A

6

6511957

BOLT

7

BOLT NLA - Was 999396B - A

8

HOLDER NLA - brush assembly - Was 999394B - A

9

6599771

ROTOR

10

2343911

STATOR Was 907953B - A

11

CAPACITOR NLA - Was 999308B - A

12

6599768

BOLT

13

BOLT NLA - Was 999397B - A

14

DIODE Was 994383B - A

15

6599767

RECTIFIER

16

45G1008

BOLT

17

RETAINER NLA - Was 850315B - A

18

784950

BEARING Was 905350B - A

19

HOUSING NLA - Was 905957B - A

20

909831

COLLAR Was 905958B - A

21

329884

FAN

22

6558136

PULLEY

23

NLA - Was 794584B - A

24

NUT NLA - Was 859369 - A

25

TERMINAL NLA - Was 6599774 - A

26

TERMINAL PKG. NLA - Was 905952B - A

27

12D8

NUT

28

BOLT NLA - Was 991219B - A

Выбрано товаров: 28
