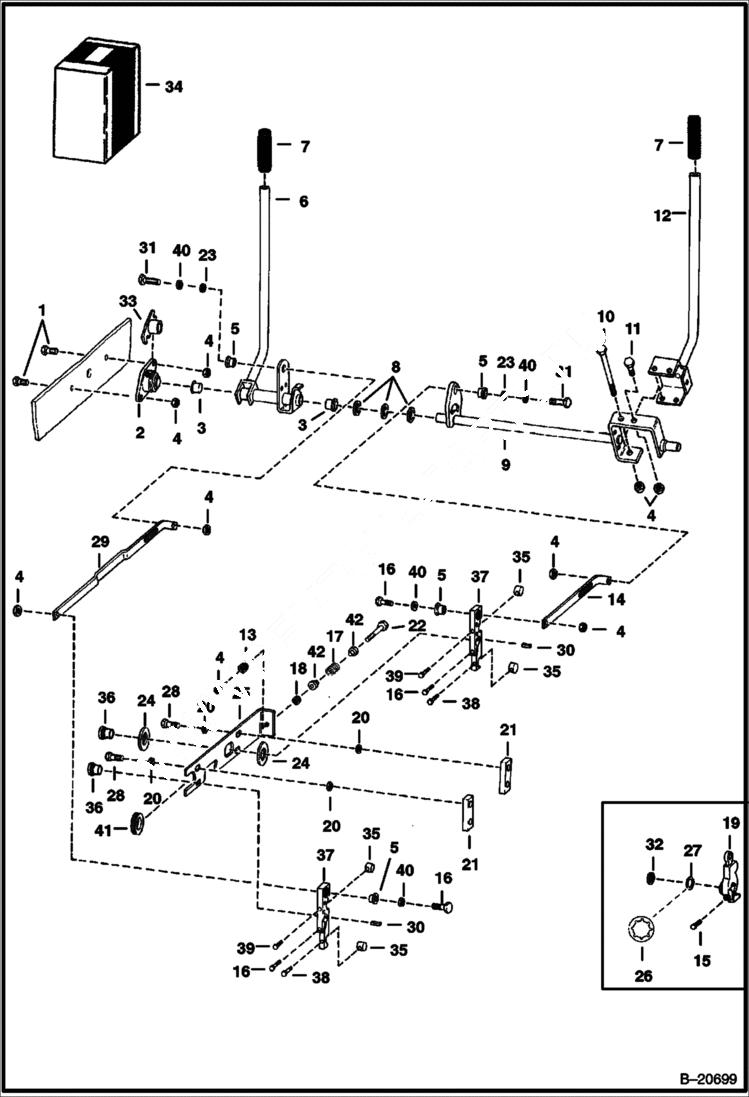

Запчасти Bobcat 600s HAND CONTROLS HYDROSTATIC SYSTEM

1

17C612

BOLT 5

2

6558736

FLANGE

3

6512027

BUSHING

4

85D6

NUT, 5

5

6665701

BUSHING, PRESS FIT Was 6630081 - A

6

6558460

HANDLE steering - L.H.

7

6513963

GRIP

8

25E29

WSHR

9

6564705

SHAFT Was 6558461 - A

10

6553081

BOLT

11

17C620

BOLT

12

6558615

HANDLE R.H.

13

61D6

NUT 5

14

6558431

BAR

15

17C522

BOLT

16

17C628

BOLT

17

SPRING NLA - .44'' (11.2mm) I.D. - Order 6572026 & (2) 6571991 - Was 6505082 - A

17

6572026

SPRING .75'' (19,5mm) I.D.

18

6579990

WASHER Was 6558429 - A

19

LEVER NLA - Order Ref. 34

20

6557831

WASHER

21

6562281

BAR

22

17C692

BOLTS

23

6563965

WASHER

24

6558680

WASHER

25

6562767

BRACKET

26

RETAINER NLA - Tinnerman - Order Ref. 34 - Was 6513388 - A

27

WASHER NLA - Use W/Ref. 19 - Was 6560894 - A

28

8C616

SCREW

29

6558430

BAR

30

5J806

KEY

31

17C626

BOLT

32

659764

RING Use W/Ref. 19

33

6552536

PIVOT

34

6564056

LEVER KIT Ref. 5 & 35 - 41

35

6562062

CAM

36

6562063

HUB

37

6565751

LEVER, PINTLE pintle

38

17C614

BOLT

39

17C624

BOLT 5

40

6563914

WASHER

41

6558436

GUIDE

42

6571991

GUIDE Use only with 6572026 spring
