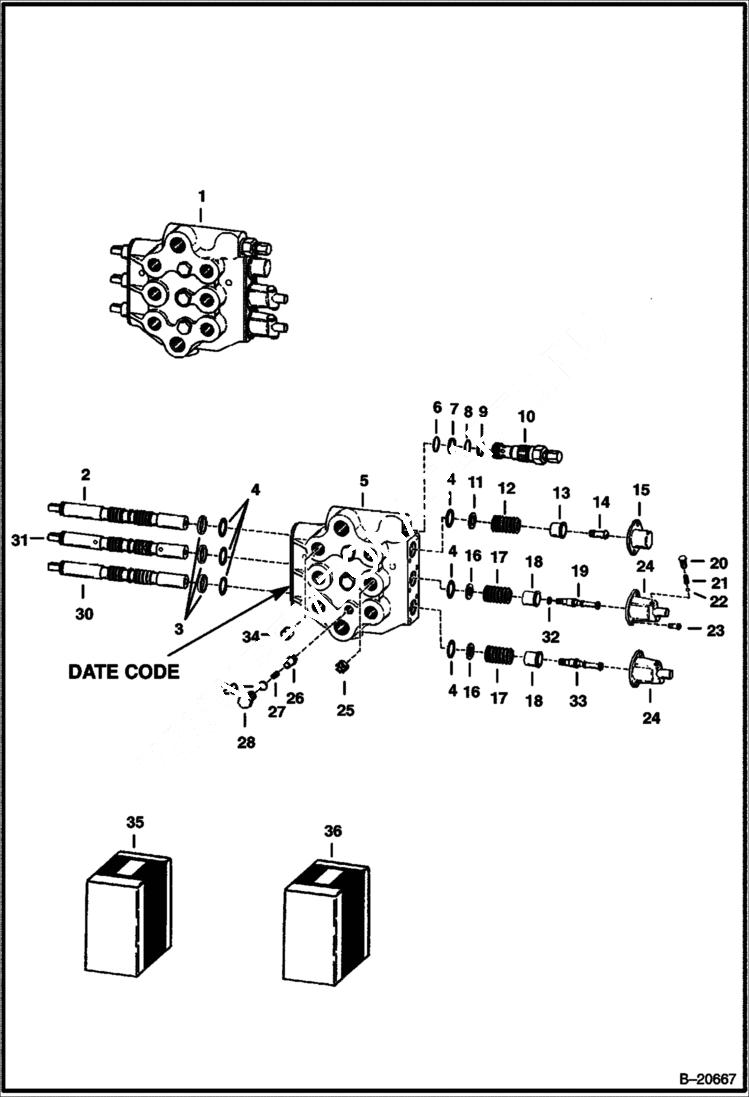

Запчасти Bobcat 600s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

6557603

VALVE W/O Ref. 10

2

SPOOL NLA

3

SEAL NSS - rod wiper

4

O-RING NSS

5

BODY NLA - valve

6

O-RING NSS

7

WASHER NSS - back-up

8

O-RING NSS

9

WASHER NSS - back-up

10

6557602

RELIEF VALVE

11

WASHER NSS

12

SPRING NSS

13

SPACER NSS

14

SCREW NSS

15

CAP NSS - end

16

WASHER NSS

17

SPRING NSS

18

SPACER NSS

19

SPOOL NSS - detent

20

6513446

PLUG detent

21

6513445

SPRING detent

22

6513443

BALL detent

23

41G1210

SCREW Was 41G001208B - B

24

CAP NSS - end

25

ORIFICE See Illustration HYDRAULIC CIRCUITRY/ D1382 NLA - .083 DIA. - Was 6560940 - A

26

POPPET NLA - Below Data Code 079 - Was 6513711 - A

26

POPPET NLA - Above Data Code 079 - Order7008546 - Was 6599473 - A

27

SPRING NLA - Below Data Code 079 - Order 6599472 - Was 6513710 - A

27

6599472

SPRING Above Data Code 079

28

6514733

PLUG

29

O-RING NSS

30

SPOOL NLA

31

SPOOL NLA

32

O-RING NSS

33

SPOOL NSS - detent

34

6560939

ORIFICE See Illustration HYDRAULIC CIRCUITRY/ D1382 .126 DIA

35

6512792

KIT tilt - Ref. 11 - 15

35

6512793

KIT lift - Ref. 16 - 22, 24 & 32

35

KIT NLA - auxiliary - Ref. 16 - 18, 20 - 22, 24 & 33 - Was 6512794

35

6512795

SEAL KIT Ref. 3, 4, 6 - 9, 29 & 32

36

6560312

KIT detent cap - Ref. 20 - 22 & 24
