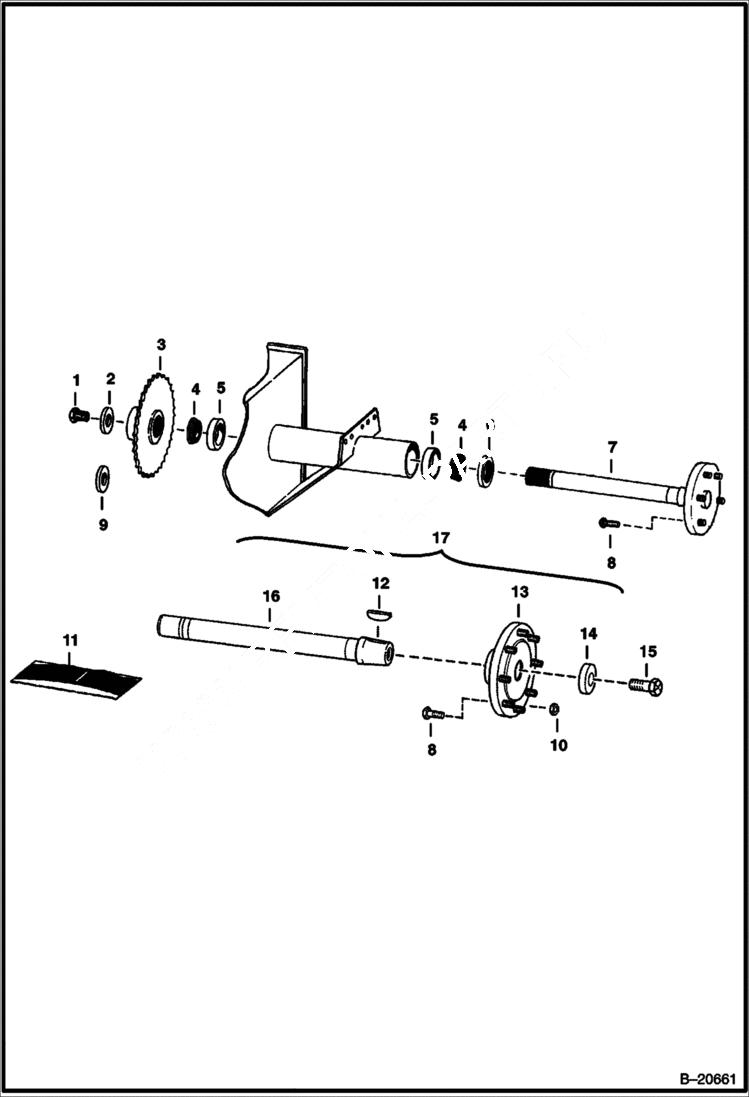

Запчасти Bobcat 600s AXLE DRIVE TRAIN

1

18C1224

BOLT

2

6552871

WASHER

3

6555680

SPROCKET, AXLE

4

3974866

BEARING, AXLE Assy. - Was 6511331 - A

5

RACE NSS - Order Ref. 4 - Was 6511330 - A

6

6660126

SEAL Was 6512114 - A

7

AXLE NLA - Order Ref. 17 - Was 6568926 - A

8

6564741

BOLT Was 6557187 - A

8

6709170

BOLT, WHEEL 9/16'' - Was 6559502 - A

9

6563606

WASHER recessed - Use to take up .005 or .010 end play on axle

10

6557188

NUT 1/2''

10

6564669

NUT, 10 9/16''

11

6568974

KIT See Illustration AXLE SEAL KIT/ B4041 AXLE SEAL

12

6J1664

KEY

13

6706038

HUB W/Ref. 8

14

6716843

WASHER Was 6569461 - A

15

18C1632

BOLT 2'' (50,8mm) long - for Ref. 16 - W/1.5'' (38,1mm) deep threads

15

18C1636

BOLT 2.25'' (57,2mm) long - for Ref. 16 - W/1.65 (41,9mm) deep threads

16

6706039

AXLE ASSY.

17

6722927

KIT W/Ref. 8 & 12 - 16 - Assemble per illustration and torque Ref. 15 to 575-625 ft. lbs.
