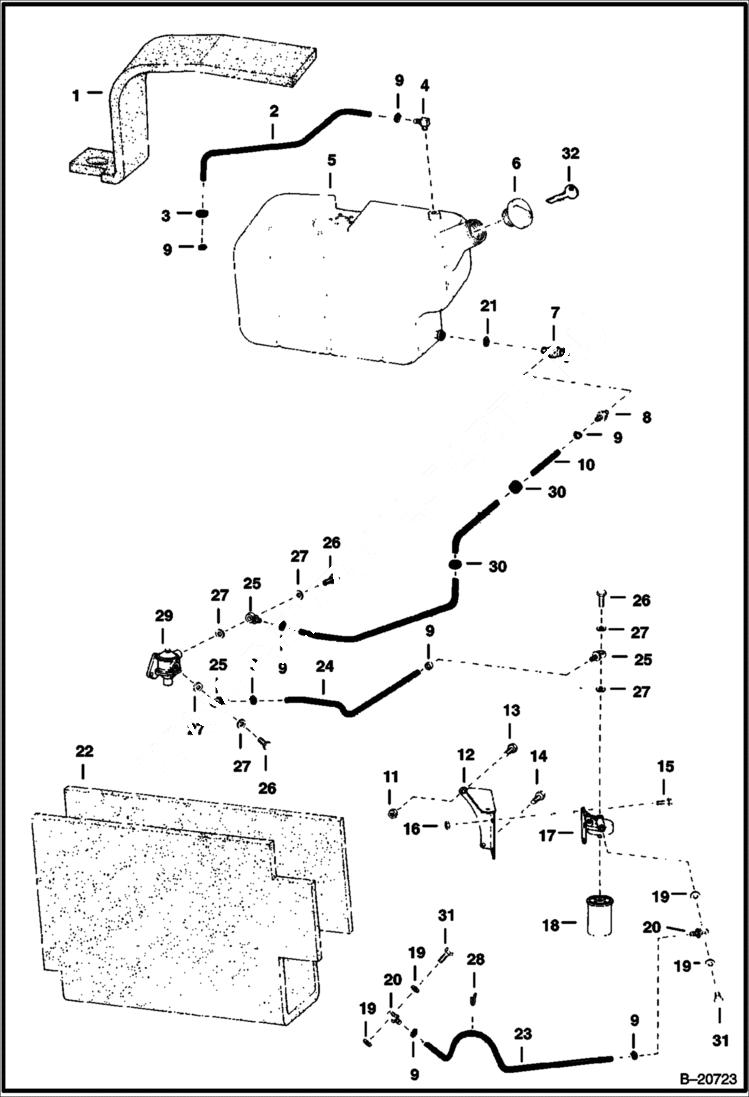

Запчасти Bobcat 600s FUEL SYSTEM (S/N 4997 12999 & Below) MAIN FRAME

1

6555909

INSULATION

2

6558244

HOSE

3

1318291

GROMMET

4

6555920

ELBOW

5

TANK NLA - Order 6560211 - Was 6557743 - A

6

6661114

CAP. DIESEL fuel - Was 6632468 - B

6

CAP NLA - locking - W/Ref. 32 - Code GC020 - Was 6635877 - A

6

6661696

CAP, FUEL LOCKING locking - W/Ref. 32 - Code PK510

7

6512138

VALVE

8

6505813

CONNECTOR

9

42HS04

CLAMP, HOSE Was 6515575 - A

10

6558639

HOSE fuel

11

61D6

NUT 5

12

BRACKET NLA - Was 6559748 - A

13

17C624

BOLT 5

14

SCREW NLA - Was 4CM01025B - A

15

17C618

BOLT

16

81D6

NUT

17

HEAD See BTI226 filter

18

4121609

FILTER filter

19

2FM12155

WASHER

20

6511033

CONNECTOR banjo

21

42HS8

CLAMP Was 6514005 - A

22

6555908

INSULATION

23

6558246

HOSE fuel

24

6558245

HOSE fuel

25

6511899

ADAPTER banjo

26

6555921

BOLT

27

6513763

WASHER Was 2FM14180B - A

28

6513471

CLAMP

29

FUEL PUMP See Illustration FUEL SYSTEM/ B20770 See Illustration FUEL SYSTEM/ B20760

30

GROMMET Was 565073 - A

31

6666396

SCREW Was 6514745 - A

32

6654374

KEY Code GC020

32

6587458

KEY Code PK510
