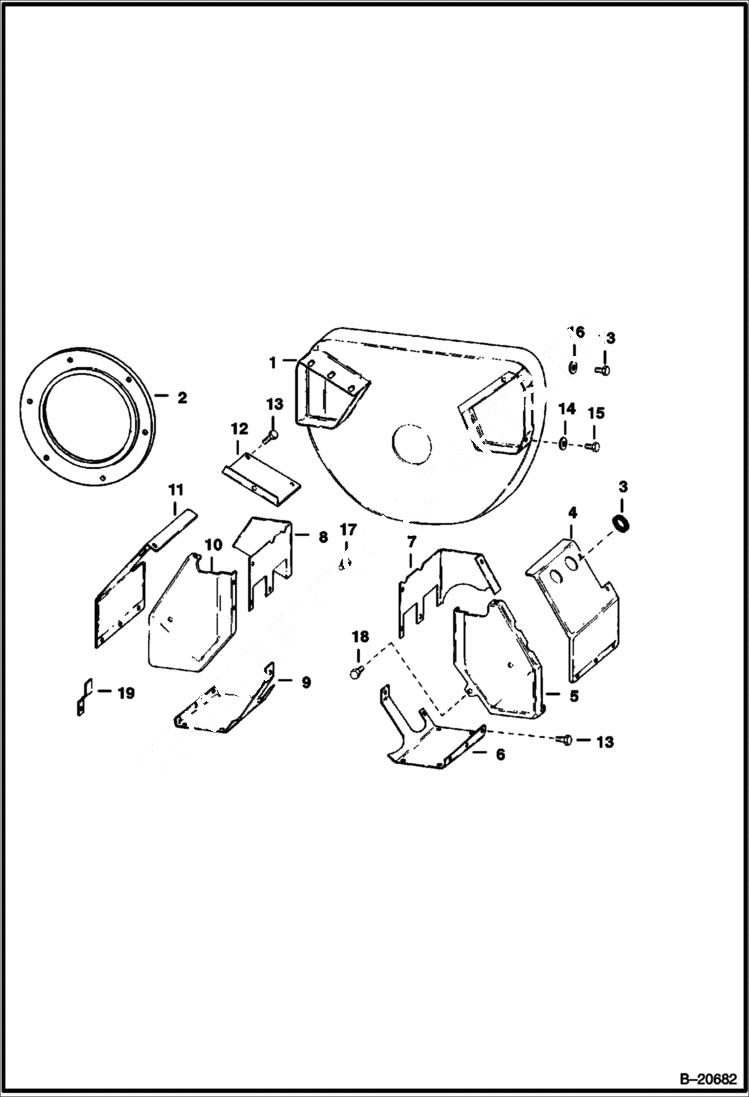

Запчасти Bobcat 600s ENGINE & SHROUDING POWER UNIT

1

SHROUD NLA - flywheel - Was 6510091 - A

2

6513496

RING

3

6516359

CAP

4

SHROUD NLA - cylinder - Was 6510867 - A

5

6516357

SHROUD rear cover

6

6513154

SHROUD lower cylinder

7

SHROUD NLA - heat deflector - Was 6510866 - A

8

6516353

SHROUD heat deflector

9

6516354

SHROUD lower cylinder

10

6516352

SHROUD rear cover

11

6513155

SHROUD cylinder head

12

6516371

SHROUD side cover

13

47G406

BOLT Was 47G-401 - B

14

4E5

WASHER

15

17C508

BOLT

16

4E4

WASHER

17

47G408

SCREW

18

47G412

SCREW

19

6516360

CLIP
