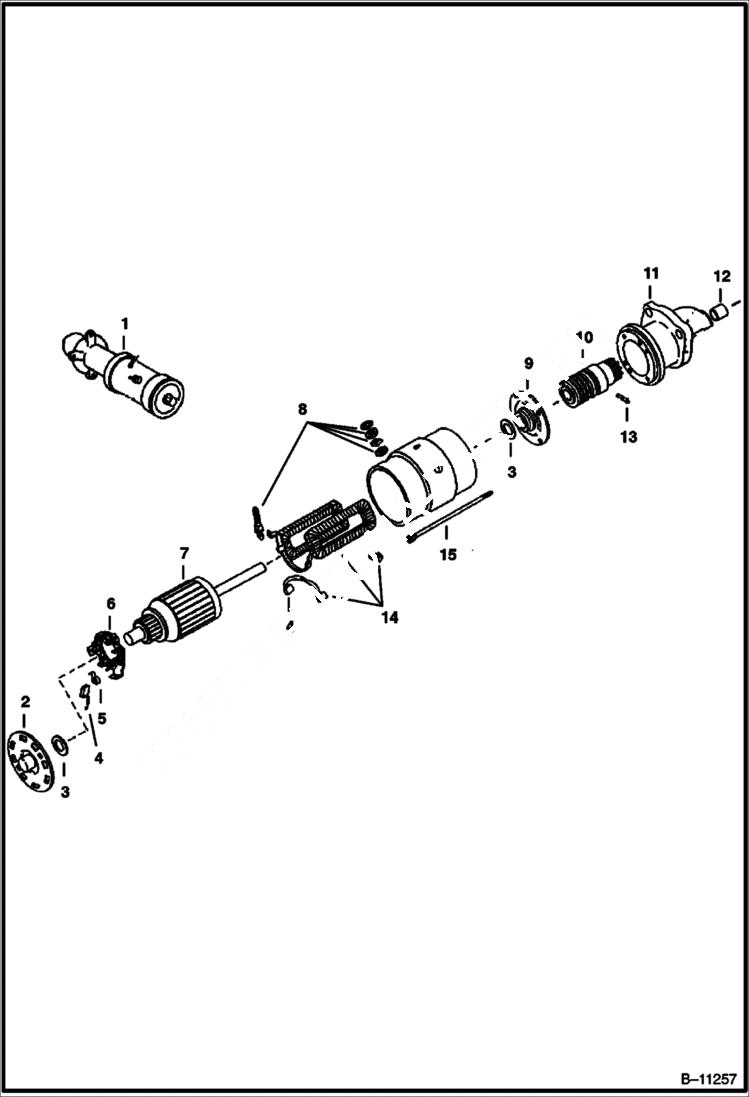

Запчасти Bobcat 600s STARTER (Prestolite MHA-7021 or MHA-6102S or 46-3597) ELECTRICAL SYSTEM

1

STARTER NLA - Order 6632567REM starter - Was 6632567 - A

1

6632567REM

STARTER

2

6632607

END CAP

3

WASHER NLA - thrust pkg. - Was 898761B - A

4

6632612

BRUSH SET

5

SPRING NLA - Was 893682B - A

6

6632609

PLATE BRUSH Ref. 4 & 5

7

6632602

ARMATURE

8

6632610

TERMINAL stud package

9

6632603

BEARING intermediate

10

6632604

DRIVE

11

6632608

HOUSING

12

BUSHING NLA - Was 854988B - A

13

6632605

DRIVE PIN

14

6632606

FIELD COIL

15

6632611

BOLT thru
