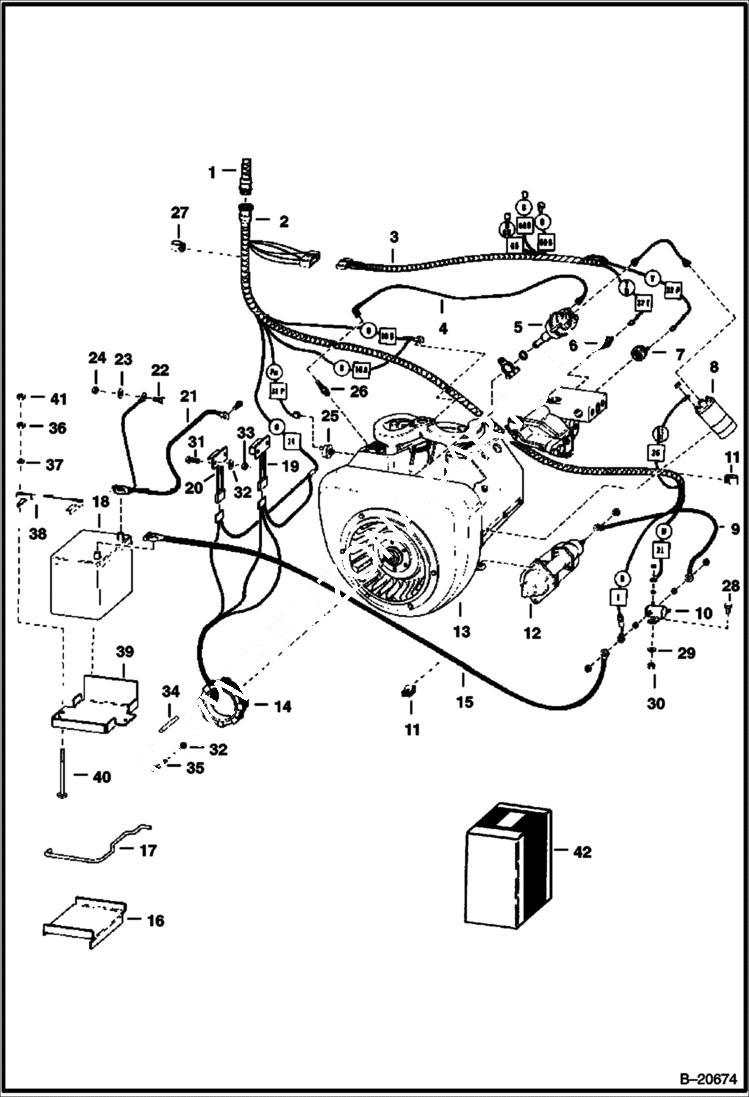

Запчасти Bobcat 600s ENGINE ELECTRICAL SYSTEM (S/N 14999 & Below) ELECTRICAL SYSTEM

1

HARNESS See Illustration CAB ELECTRICAL SYSTEM/ E1299 See Illustration CAB ELECTRICAL SYSTEM/ E1165 cab

2

6558862

HARNESS engine

3

6557447

HARNESS

4

CABLE SET NLA - Was 6513162 - A

5

6665209

DISTRIBUTOR See Illustration DISTRIBUTOR/ B20687 See Illustration DISTRIBUTOR/ B1207 - Was 6516555 - A

6

6598384

SWITCH hydraulic temperature

7

6557449

SWITCH hydraulic pressure

8

COIL NLA - Was 6513415 - A

9

6555845

CABLE

10

6631939

SOLENOID solenoid - Was 551530B - B

11

30H22

CLIP

12

6513373

STARTER See Illustration STARTER/ B11257 See Illustration STARTER/ B20675

13

ENGINE See Illustration ENGINE/ B20681

14

6513405

STATOR

15

6553748

CABLE

16

BATTERY NLA - Was 6557794 - A

17

6553338

BRACKET

18

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

18

6630154

CAP Danger

18

6630155

CAP Poison

18

TILT-TITE CAP NLA - Was 6514898 - A

19

6513406

MODULE rectifier

20

6516690

REGULATOR regulator

21

6557451

CABLE

22

17C512

BOLT 5

23

6E5

WASHER

24

61D5

NUT

25

6557924

SWITCH oil pressure

26

890272

SPARK PLUG-4 Was 6516429 - A

27

30H35

CLAMP 10

28

17C412

BOLT 5

29

6E4

WASHER 10

30

61D4

NUT 5

31

BOLT NLA - Was 46G001008B - A

32

12E10

WASHER

33

14D10

NUT

34

659648

PIN

35

46G1016

SCREW

36

59D5

NUT 5

37

25E15

WASHER

38

7024123

CLAMP Was 6563462 - A

39

6558826

MOUNT

40

6563556

BOLT

41

46D5

NUT

42

KIT See Illustration WIRE HARNESS CONNECTOR/ A2765 NLA - connector - Was 6563326 - A
