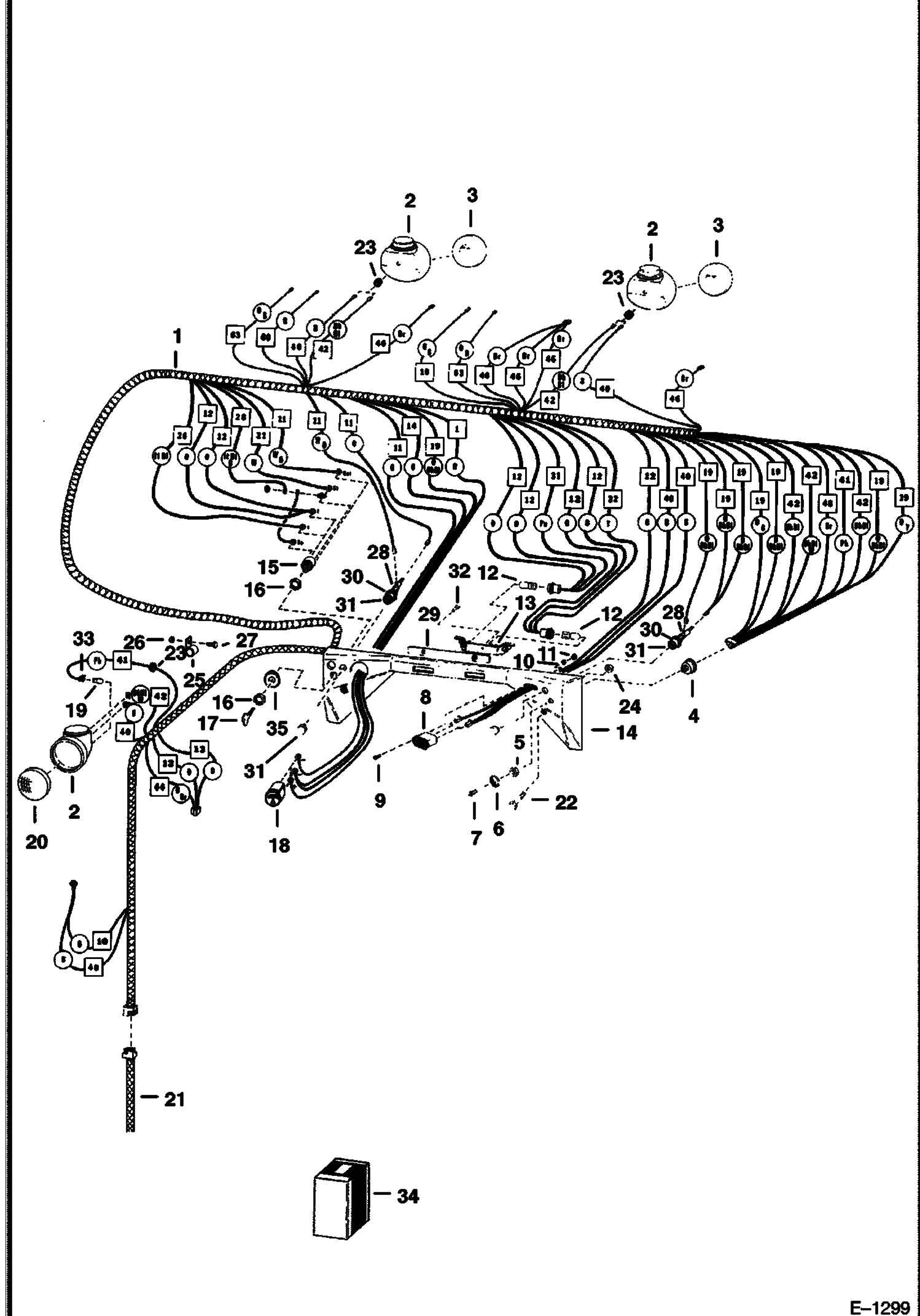

Запчасти Bobcat 600s CAB ELECTRICAL SYSTEM (S/N 11400 & Above) ELECTRICAL SYSTEM

1

6558859

HARNESS cab

1

6561500

HARNESS cab

2

6558142

HOUSING light

3

6557486

LAMP

4

6512808

SWITCH W/Ref. 5-7

5

NUT NSS

6

6599781

KNOB

7

SCREW NSS

8

6664886

HOURMETER Was 6631657 - A

9

85G608

SCREW

10

12E6

WASHER

11

12D6

NUT 10

12

6513468

BULB

13

6558242

BRACKET

14

PANEL NLA - instrument - Was 6558243 - A

15

SWITCH See BTI289 NLA - ignition - W/Ref. 16 - Order Ref. 34 - Was 6519592 - A

15

6665606

SWITCH

16

6598721

NUT For NLA/6519592 Switch

16

6674202

NUT For 6665606 Switch

17

6512809

KEY For 6519592

17

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

17

6693241

KEY 10 ignition - single key W/O ring

18

6512807

GAUGE amp

18

6659912

VOLTMETER Was 6560354

19

960855

1003 BULB #1003 - Use only W/#4409 lamp

19

898731

1156 BULB #1156 - Use only W/#4409x lamp

20

LAMP NLA - #4409 - Order 6563740 & 898731B

20

6563740

LAMP #4409x

21

6558862

HARNESS See Illustration ENGINE ELECTRICAL SYSTEM/ B20674 engine wiring

22

17C572

BOLT

23

6557493

GROMMET

24

57D5

NUT Was 6511320 - A

25

30H41

CLIP

26

91D5

NUT 5 Was 81D000005B - B

27

10C512

BOLT Was 6553808 - A

28

6513469

HOLDER See BTI123 fuse

28

1319451

FUSE 5

29

6560699

LENS

30

6514643

GASKET

31

6514642

CAP

32

6514742

RIVET

33

6557504

SOCKET

34

6724282

SWITCH KIT Ref. 15 & 17

35

6709172

PLATE
