Запчасти Bobcat 600s HYDROSTATIC PUMP HYDROSTATIC SYSTEM

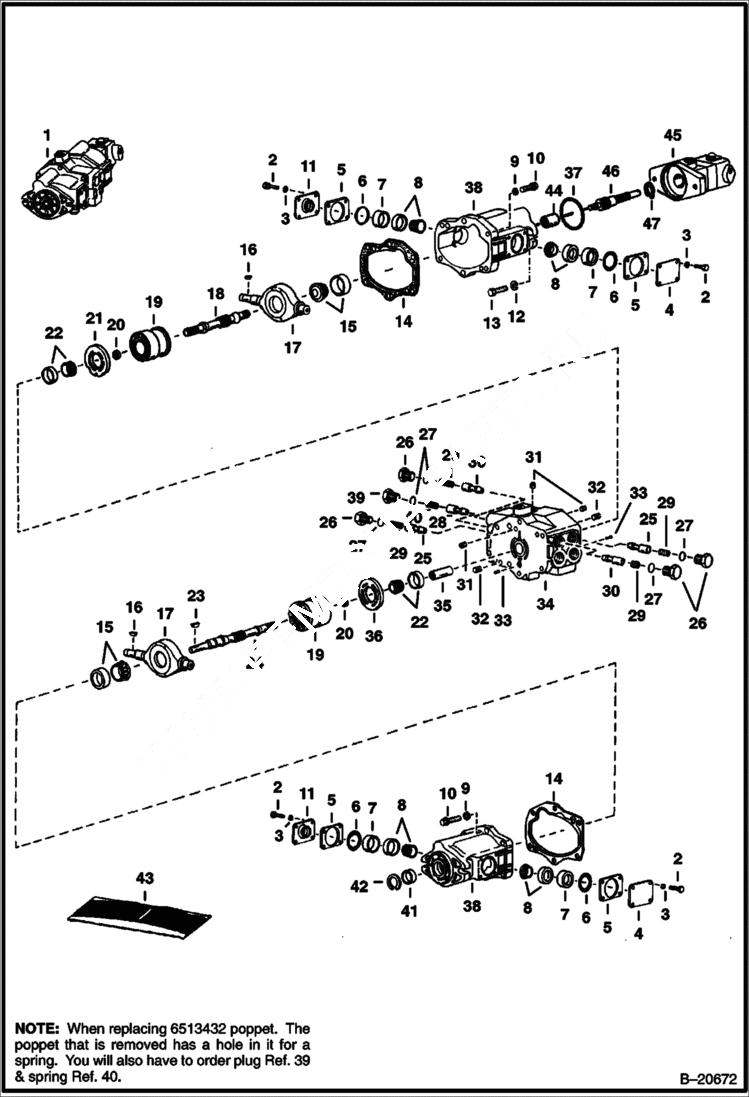

Схема запчастей Bobcat 600s - HYDROSTATIC PUMP HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

PUMP See BTI154 hydrostatic

1

PUMP See BTI154

1

PUMP, HYD See BTI154 NLA - Was 6630534REM - A

2

6513631

BOLT

3

4E4

WASHER

4

6512939

COVER

5

6512940

SHIM KIT

6

O-RING NSS

7

6512938

SPACER

8

232539

BEARING

9

4E6

WASHER

10

93G624

SCREW

11

6513094

COVER & SEAL

12

616791

WASHER

13

17C820

BOLT

14

6512941

GASKET

15

6513091

BEARING

16

5J806

KEY

17

6512929

YOKE

18

6512932

SHAFT

19

ROTATING GROUP NLA - Was 6512930 - A

20

6512948

KIT

20

6674240

SPACER (.137 in.)

20

6674241

SPACER (.139 in.)

20

6674242

SPACER (.142 in)

20

6674243

SPACER (.145 in)

20

6674244

SPACER (.148 in)

20

6674245

SPACER (.151 in)

20

6674246

SPACER (.154 in)

20

6674247

SPACER (.157 in)

20

6674248

SPACER (.160 in)

20

6674249

SPACER (.163 in)

20

6674250

SPACER (.166 in)

20

6674251

SPACER (.169 in)

21

6598478

WEAR PLATE

22

6513093

BEARING

23

6519654

KEY

24

6512942

SHAFT, DRIVE HYD

25

RELIEF VALVE NLA - Relief - Was 6512947 - A

26

6513434

PLUG

27

79K12

O RING 10 Was 91F000008B - A

28

POPPET NLA - Was 6512945 - A

29

6513433

SPRING

30

6513432

POPPET See Note

31

16F4

PLUG

32

6513089

PIN

33

6513092

PIN

34

BODY NLA - valve - Was 6512931 - A

35

6512933

COUPLER

36

WEAR PLATE NLA - Was 6598477 - A

37

6512949

O-RING

38

HOUSING NLA - Also Order Ref. 5 & 20 - Was 6598433 - A

39

6598902

PLUG

39

6513434

PLUG

40

SPRING NLA - Was 6513429 - A

40

6512946

SPRING

41

6513090

SEAL, SHAFT

42

507695

SNAP RING snap

43

6512943

KIT, SEAL Ref. 6, 14, 27, 37 & 41

44

6512935

COUPLER

45

6512950

PUMP See Illustration VANE PUMP/ C2225 VANE

46

6512934

SHAFT

47

711054

SNAP RING

Выбрано товаров: 63
