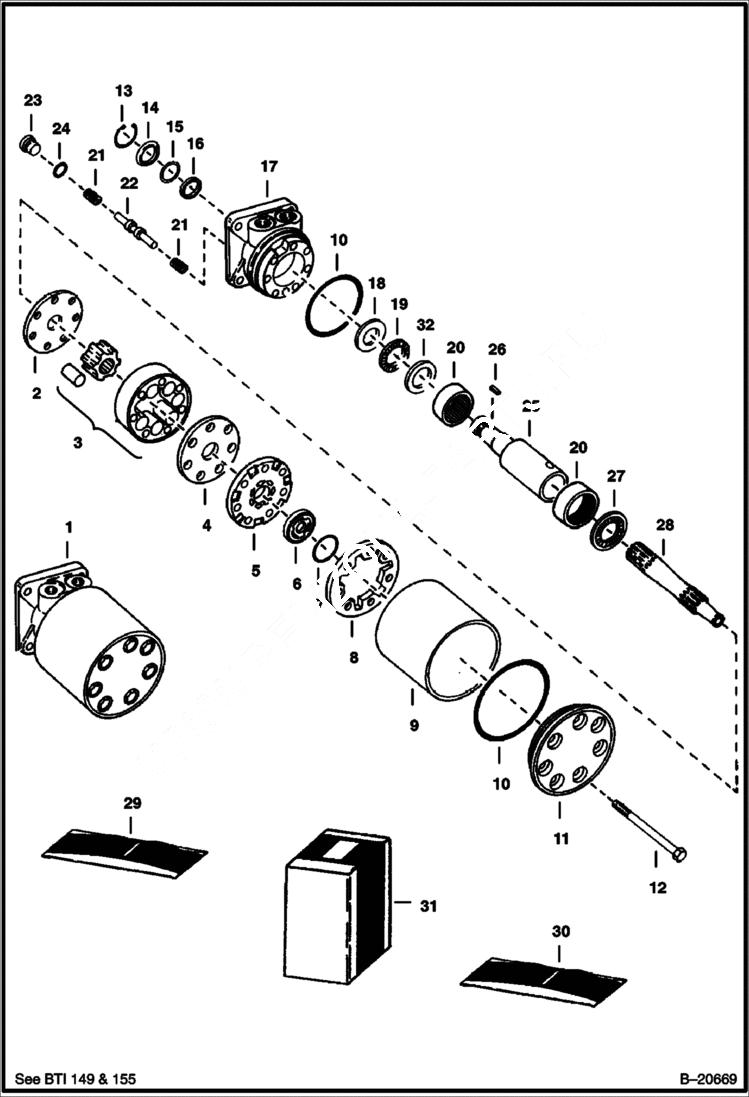

Запчасти Bobcat 600s HYDROSTATIC MOTOR (MAE 24032 & 24033 - S/N 15375 & Below) HYDROSTATIC SYSTEM

1

MOTOR See BTI149 See BTI155 See BTI287 NLA - 24032

1

MOTOR See BTI149 See BTI155 See BTI287 NLA - 24033 - Was 6562006 - A

2

6512296

PLATE

3

ROTOR NLA - Was 6512297 - A

4

PLATE NLA - manifold - Was 6512298 - A

5

6512299

MANIFOLD

6

COMMUTATOR NSS - assy.

7

RING NSS - bonded

8

COMMUTATOR NLA - assy. - W/Ref. 6 & 7 - Was 6512300 - A

9

SLEEVE NLA - Was 6512306 - A

10

SEAL NSS

11

6512302

COVER

12

BOLT NLA - Was 994202 - A

13

RING NSS - retaining

14

WASHER NSS - back-up

15

WASHER NSS - back-up

16

SEAL NSS

17

HOUSING See BTI287 NLA - assy. - Was 6598050 - A

18

6514066

WASHER thrust

19

6514052

BEARING thrust

20

BEARING NLA - needle - Was 6514065 - A

21

SPRING NLA - Was 6513544 - A

22

6513543

VALVE Closed Center

22

SPOOL NLA - Open Center - Was 6514738 - A

23

47K3

PLUG

24

6514064

O-RING

25

SHAFT NLA - For 24032 Only - Order 6562047

25

SHAFT NLA - For 24033 Only - Was 6598049 - A

26

6514053

KEY square

26

6J1008

KEY woodruff

27

6514056

BEARING thrust

28

LINK NLA - drive - Was 6512294 - A

29

6514896

SEAL KIT Ref. 7, 10 & 13 - 16

30

HOUSING KIT See BTI287 NLA - Ref. 7, 10, 14-27 - Was 6562047 - A

31

KIT See BTI287 NLA - Was 6561521 - A

32

6598048

WASHER thrust
