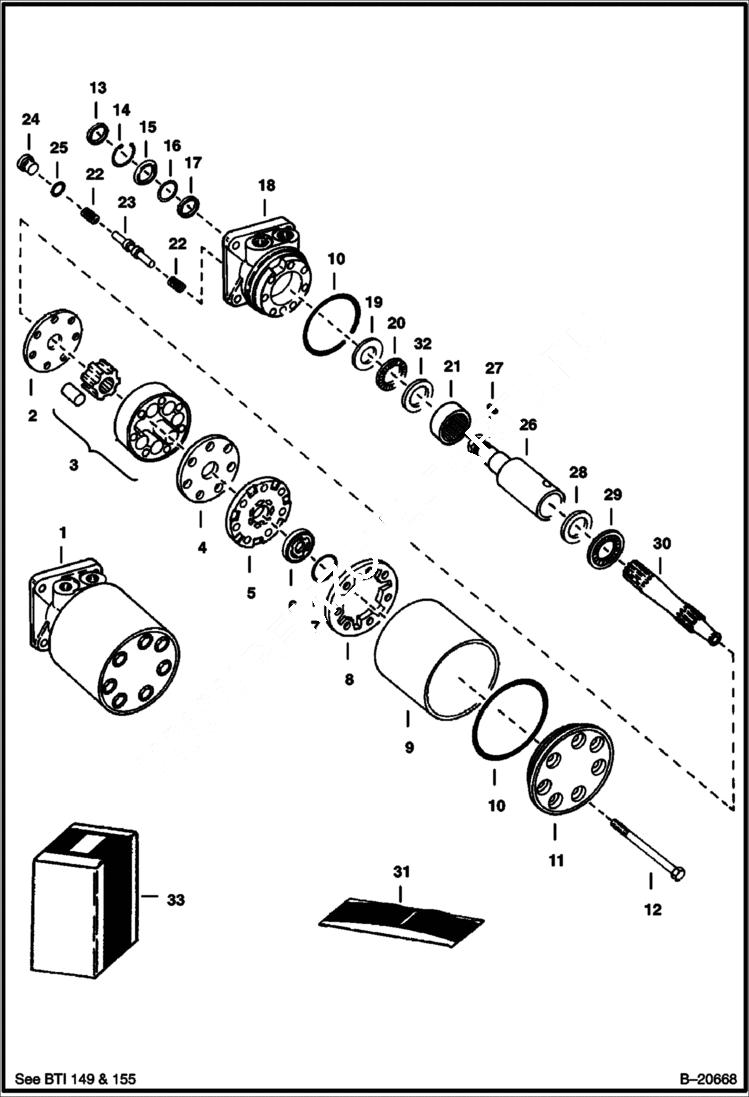

Запчасти Bobcat 600s HYDROSTATIC MOTOR (MAE 24027) HYDROSTATIC SYSTEM

1

MOTOR See BTI149 See BTI155 See BTI287 NLA - MAE 24027

2

6512296

PLATE

3

ROTOR NLA - Was 6512297 - A

4

PLATE NLA - manifold - Was 6512298 - A

5

6512299

MANIFOLD

6

COMMUTATOR NSS - assy.

7

RING NSS - bonded

8

COMMUTATOR NLA - assy. W/Ref. 6 - Was 6512300 - A

9

SLEEVE NLA - Was 6512306 - A

10

SEAL NSS

11

6512302

COVER

12

BOLT NLA - Was 994202 - A

13

SEAL NSS

14

RING NSS - retaining

15

SPACER NSS

16

WASHER NSS - back-up

17

SEAL NSS

18

HOUSING See BTI287 NLA

19

WASHER NLA - thrust - Was 6512338 - A

20

BEARING NLA - thrust - Was 6512293 - A

21

BEARING NLA - needle - See Ref. 1 - Was 6512292 - A

22

SPRING NLA - Was 6513544 - A

23

6513543

VALVE

24

47K3

PLUG W/O-Ring

25

O-RING NSS

26

SHAFT See BTI287 NLA

27

6514053

KEY square

27

6J1008

KEY woodruff

28

730143

BEARING needle

29

BEARING NLA - thrust - Was 6512295 - A

30

LINK NLA - drive - Was 6512294 - A

31

6513423

SEAL KIT Ref. 10 & 13 - 17

32

WASHER NLA - thrust - Was 6513497 - A

33

KIT See BTI155 See BTI287 NLA - motor & spool - Was 6561521 - A
