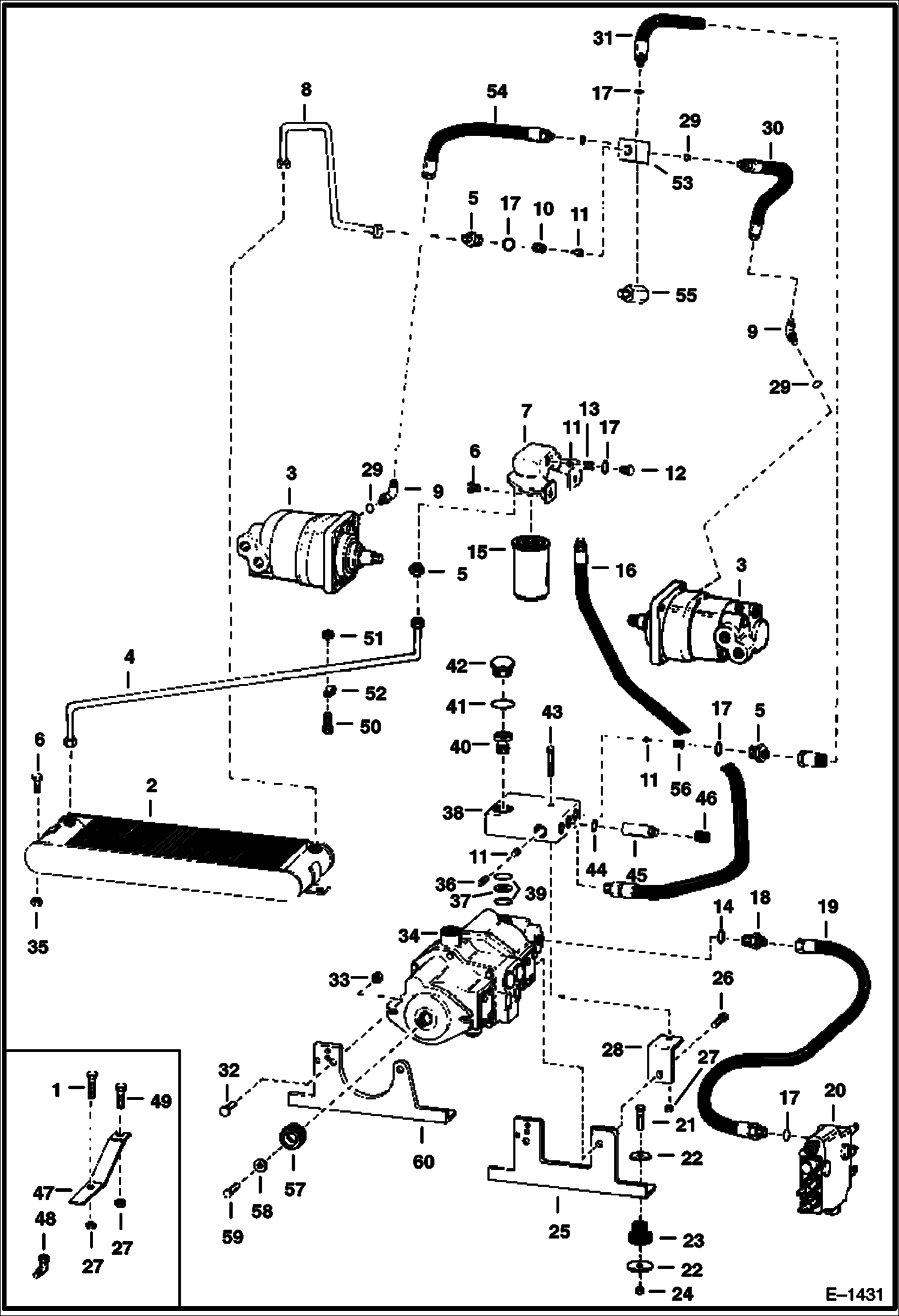

Запчасти Bobcat 600s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

84G3716

SCREW 5

2

6560954

OIL COOLER

3

MOTOR See Illustration HYDROSTATIC MOTOR/ D1650 See Illustration HYDROSTATIC MOTOR/ C2013 HYDRO.

4

HOSE NLA - Was 6558194 - A

4

6558249

TUBE

5

15K7

FITTING W/Ref. 17

6

84G3712

BOLT 5

7

FILTER HEAD NLA - Order 6564877 head and 6661248 filter - Was 6563339 - A

8

6554256

HOSE

8

TUBE NLA - Was 6560630 - A

9

17K5

ELBOW W/Ref. 29

9

18K5

ELBOW W/Ref. 29

9

15K5

FITTING W/Ref. 29

10

SPRING NLA - Was 6558618 - A

10

SPRING NLA - Was 6559895 - A

11

6515078

POPPET

12

6561811

PLUG W/Ref. 17

13

6553897

SPRING

14

79K8

O RING 10 Was 91F000006B - A

15

6515541

ELEMENT hydraulic filter

16

6560213

HOSE

17

79K10

O RING 10 Was 91F000007B - A

18

15K6

ADAPTER W/Ref. 14

19

6557465

HOSE

20

6557603

VALVE See Illustration HYDRAULIC VALVE/ B20667

21

17C832

BOLT

22

WASHER NLA - Was 784145B - A

23

6560633

DAMPENER rubber

24

81D8

NUT

25

6569553

BRACKET mounting

26

17C816

BOLT

27

61D6

NUT 5

28

6557724

BRACKET

29

79K6

O RING 10 Was 91F000005B - A

30

HOSE NLA - Was 6560936 - A

31

6558857

HOSE

32

17C824

BOLT 5

33

6512896

NUT

34

PUMP See Illustration HYDROSTATIC PUMP/ B20672 See BTI154 hydro.

35

57D6

NUT 5

36

6557479

SPRING

36

6560082

SPRING

37

6557802

WASHER

38

6557481

BLOCK See BTI177

38

BLOCK NLA - Was 6558359 - A

39

79K16

O RING 10 Was 91F000010B - A

40

6560137

RETAINER

41

79K24

O RING 10 Was 91F000012B - A

42

6553899

PLUG

43

17C640

BOLT 5

44

6559185

GASKET

45

6557991

FILTER W/Ref. 44

45

6558357

FILTER See BTI186

46

617904

SPRING

47

ANGLE NLA - Was 6558195 - A

48

11K7

ADAPTER

49

37C616

BOLT Was 6514537 - A

50

6555533

BOLT

51

6512894

NUT

52

31H42

CLIP

53

BLOCK NLA - Was 6558769 - A

54

6560935

HOSE

55

ADAPTER NLA - Was 6559340 - A

56

6559896

SPRING

56

SPRING NLA - Was 6558618 - A

57

6540655

ADAPTER

58

WASHER NLA - Order 616783B & 18C000616B

58

616783

WASHER

59

BOLT NLA - allen head Order Ref. 616783B & 18C000616B

59

18C616

BOLT 5 hex

60

6557463

MOUNT
