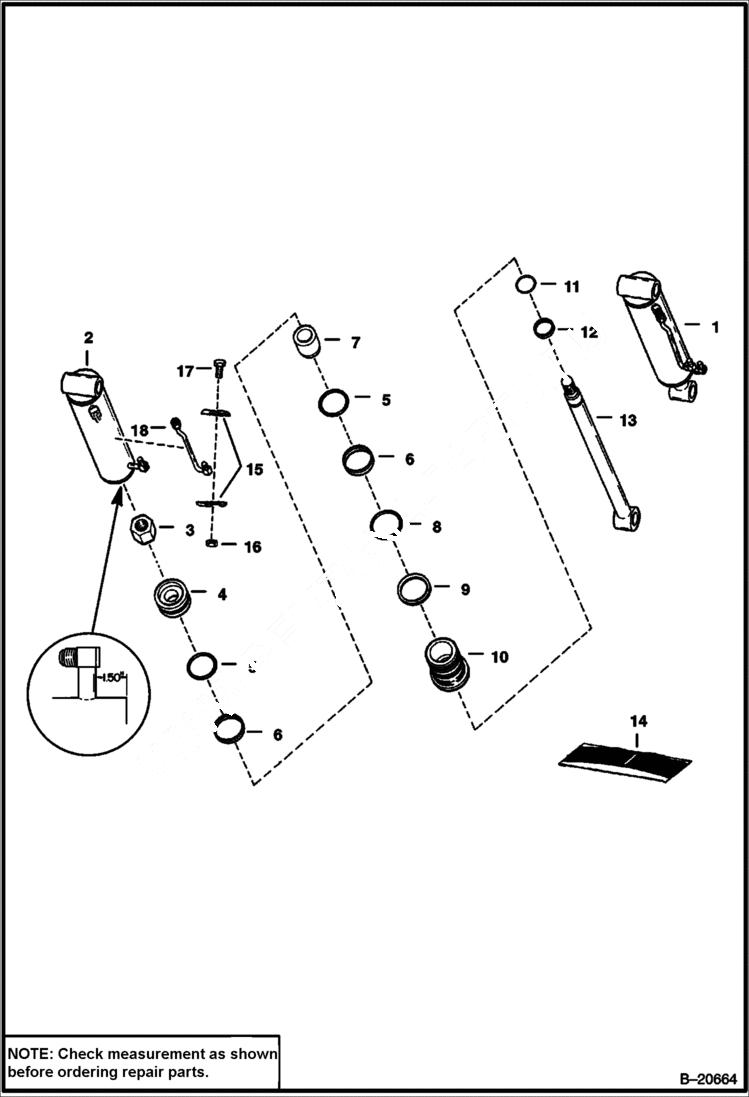

Запчасти Bobcat 600s TILT CYLINDER (Bobcat S/N 13632 & Above) HYDRAULIC SYSTEM

1

CYLINDER NLA - tilt Order 6593398

2

6592041

CASE

3

86D16

NUT

4

6592448

PISTON

5

SEAL NSS

6

O-RING NSS

7

6591800

SLEEVE

8

O-RING NSS

9

WASHER NSS - back-up

10

6591799

HEAD

11

SEAL NSS - rod

12

SEAL NSS - wiper

13

6592800

ROD cylinder

14

6591885

SEAL KIT Ref. 5, 6, 8, 9, 11 & 12

15

6591804

CLAMP

16

85D6

NUT, 5

17

17C616

BOLT 5

18

6592019

TUBE
