Запчасти Bobcat 600s TILT CYTLINDER (Bobcat) (W/Replaceable Tubes) (S/N 13632 & Abv) HYDRAULIC SYSTEM

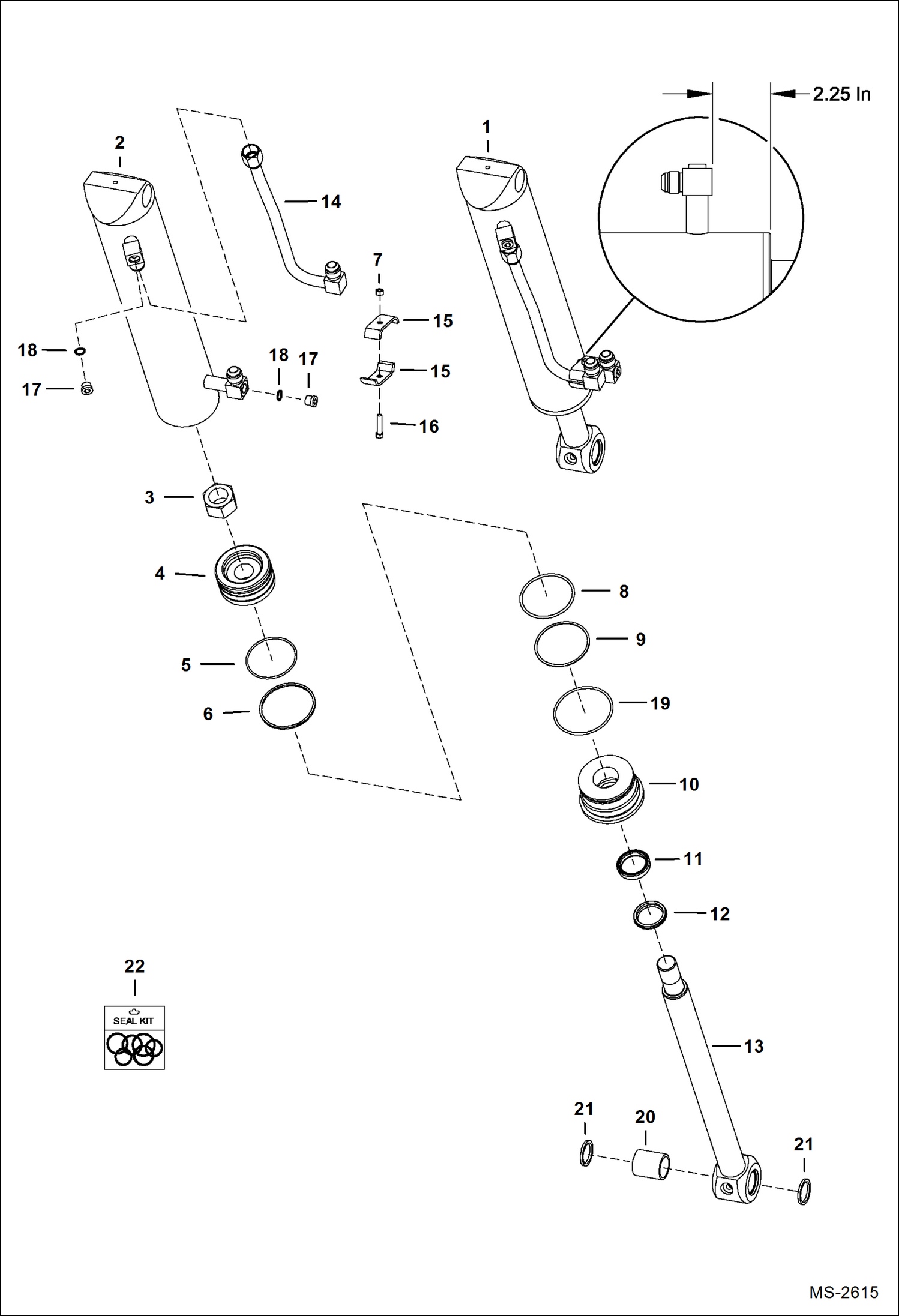

Схема запчастей Bobcat 600s - TILT CYTLINDER (Bobcat) (W/Replaceable Tubes) (S/N 13632 & Abv) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration TILT CYLINDER/ MS2446 NLA - Ref. 2-21 - tube is attached to fitting and held on with two clamps and nut and bolt - Order 7104437 cylinder - Was 6539810 - A

2

7141930

CASE Was 6588686 - A

3

6810539

NUT Was 6804592

4

6539290

PISTON, CYL TILT Was 6592589 - A

5

6513446

PLUG

6

25K30226

O RING 10 Was 54K30226 - B

7

85D6

NUT, 5

8

58K234

O RING 10 Was 54K40300 - B

9

73K234

BACK-UP RING back-up - Was 80K234 - A

10

6529680

HEAD Was 6592590 - A

11

6667326

SEAL rod - Was 6538141 - A

12

6690707

WIPER, ROD CYL Was 6665086 - A

13

7104438

ROD Also Order (2) of Ref. 21 - Was 6539815 - A

14

6593399

TUBE

15

6591804

CLAMP

16

17C616

BOLT 5

17

PLUG NLA - flat boss face - Was 47K5 - A

17

90KV5

PLUG W/Ref.18 - tapered boss face

18

79K6

O RING 10 flat boss face - Was 91F000005B - A

18

95K6

O'RING tapered boss face

19

82K236

O-RING Was 58K000236B - B

20

6589665

BUSHING Was 6534387 - B

21

6654117

SEAL, OIL 51 mm (2'') OD

21

225855

SEAL, OIL 10 38 mm (1.5'') OD

22

7135551

KIT, SEAL Ref. 5,6,8,9,11,12 & 19 - Was 6804605 - A

Выбрано товаров: 25
